Specifications
Brand Name :
Yusen
Model Number :
YS-60/30
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1T
Payment Terms :
L/C, T/T, , Western Union, MoneyGram
Supply Ability :
2000T/m
Delivery Time :
10days
Packaging Details :
1.1*1.1*1.1m pallet
Prodution name :
Steel Wire 0.5*30mm Concrete Steel Fiber For Concrete Reinforcement
Material :
6.5mm wire rod
Secondary :
None
Tensile strength :
>1000Mpa
Shape :
Endhooked
Application :
Foundation
Dosage :
10kgs/m3
Design Type :
Modern
Description

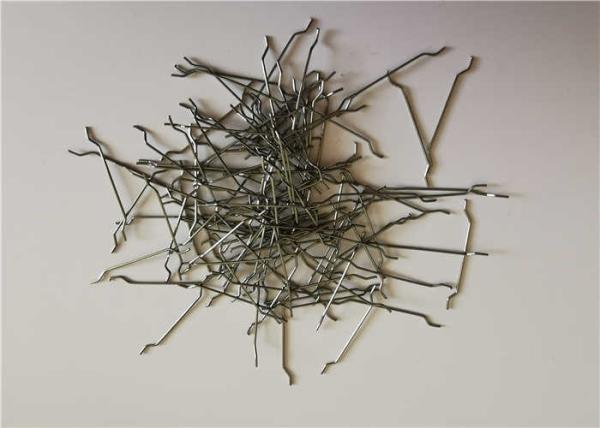

Steel Wire 0.5*30mm Concrete Steel Fiber For Concrete Reinforcement

Concrete Steel Fiber Introduction

We supply Steel Fibers made from prime quality hard-drawn steel wire to ensure high tensile strength.There are varisties of steel fiber in our factory, such as loose steel fiber,,glued steel fiber,stainess steel fiber,micro steel fiber and so on.The wire is deformed with hooked ends and cut to lengths, used in reinforcement concrete, mortar and other composite materials. The performance of Steel Fibers depends on both the dosage (kg/m3) and the fiber parameters,like tensile strengths, length, diameter and anchorage. The important factor on quality of Steel Fibers is the relationship between the length and the diameter of the fibers - the higher the aspect ratio, the better the performance.

Adopting steel fibers into the concrete mix provide new mechanical properties. The fibers can be included as a substitute for the common steel reinforcement, or as a complement, or for a better performance for strain that the common reinforcement can't absorb

Concrete Steel Fiber Specs

Loose
Steel Fiber
Model Diameter (mm) Length (mm) Aspect ratio (mm) Tensile strength (MPa)
YS-80/60 0.75 60 80 ≥1000
YS-45/35 0.75 35 45 ≥1000
YS-50/30 0.6 30 50 ≥1100
YS-55/30 0.55 30 55 ≥1100
YS-65/35 0.53 35 65 ≥1100
YS-60/30 0.5 30 60 ≥1100
YS-50/25 0.5 25 50 ≥1100
YS-60/25 0.4 25 60 ≥1100

In mechanical and performance terms, by adding steel fibers to the concrete mix can:

  • Increase impact resistance
  • Increase fatigue effect
  • Increase crack resistance
  • Increase the concrete performance against thermal variations
  • Get minor permeability
  • improve mechanical performance concrete
  • Prevent damage to the concrete

FQA

1. Are you factory/ manufacturer of trader ?

We are factory in Anping with 24000㎡. So it will help you save money and time in delivery.

2. What is your minimum order quantity ?

1T. However, we understand you need to place small order for a trial,so sample avaiable and free;but the express fee is by each of your side.

3. which countries do you export to ?

Our products are exported to Australia, Canada, Singapore, Malaysia, USA, Thailand ,Peru,Brazil,UAE and so on.

4. can we have our own logo on items ?

Yes, of course.

5. How long for the transit time ?

To South-East Asia,generally 5-20days on sea,Europe takes 30-40day,

US needs10-15day,while South America 30-50days.
