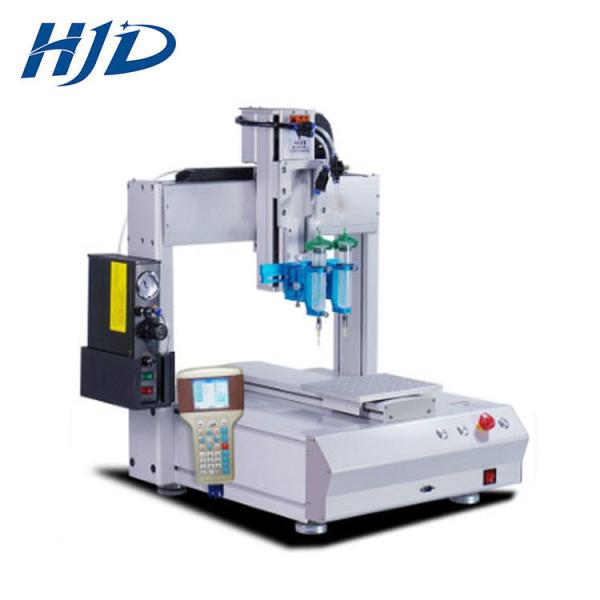

Customized Desktop 3 Axis Dispensing Robot Y Axis Soldering Machine Multifunctional
Customized Desktop 3 Axis Dispensing Robot Y Axis Soldering Machine Multifunctional
Specifications
Brand Name :
HJD
Model Number :
HY-S
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
300 sets/month
Delivery Time :
10 days
Packaging Details :
Hard paper box packing
Product name :
desktop automatic soldering machine
Function :
Multifunctional Automatic Soldering Robot
Soldering material :
Soldering Wire
Motor system :
Stepper Motor
Power(W) :
350W
Solder size :
Welded Core
Suitable for :
PCB,LED,USB,SMD...
Operating Range (X ) :
200~600mm
Description

Functions:
* Spot soldering,drag soldering,automatic cleaning and multi-angle soldering;
* Position calibration, soldering dot array, parameter copy, automatic location and skiping;
* Teaching programming enables customers to implement all types of handheld soldering upon their requirement;
* Program calibration achieves workpiece integrally, coordinates position compensation;
* Program insertion and deletion makes program revised easily and rapidly;
* Intelligent controling system achieves accurate feeding of solder, speed/time/temperature/quantity for solder can be adjusted and controlled accurately.

Solder robot Advantages:

Cost saving High-efficiency operation is achieved by only one person.one person's efficiency is higher than 3-5 persons' efficiency
Good quality Good soldering uniformity achieved high yield
High efficiency Multiple soldering tips work together at the same time to reach higher efficiency
More simple One worker can operate 2-3 robots. what this worker does is only pick and place fixture
Customization Robot is customized strictly, based on customers' requirements on products and soldering production,in line with requirements of producing lines
Good image Intelligent automatic equipment presents a new appearance of production line in factories, which helps enterprises establish a better image of high technology

3 axis solder robot Characteristic

Ruling Axle 3 Axis 2 Y Axis
Range of operation X 200mm 300mm 400mm 500mm 600mm 400mm 500mm 600mm
Y 200mm 300mm 400mm 500mm 600mm 300mm 300mm 300mm
Y / / / / / 300mm 300mm 300mm
Z 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm
Fast speed 300mm/S (max 800mm)
Repeated accuracy ±0.02mm
Control system Fulltime or constant-control handheld control system
Driver mode Japan steping motor + synchronous belt + Taiwan silver linear guide rail
Program storage Can storage 1000 sets of datas,single file max 3M(5000 solder points)
Power AC220V 50-60HZ, 350W
Machine size W 470 580 620 780 880 580 580 580
D 410 520 680 720 820 620 720 820
H 525 600 600 600 600 590 590 590
