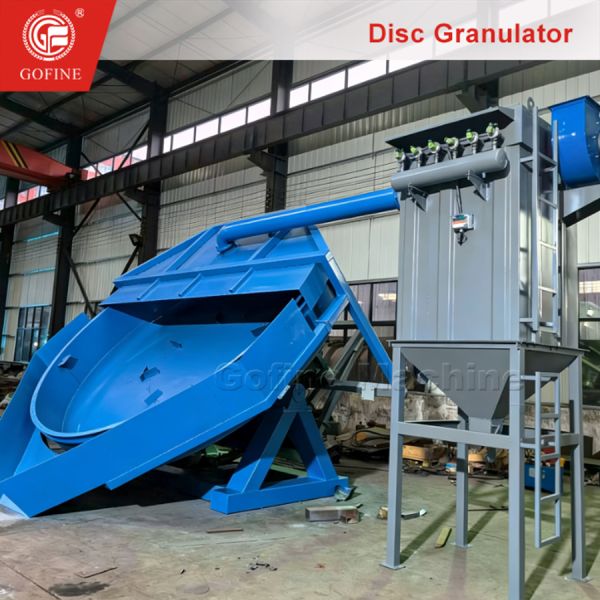

High Efficiency Disc Organic Fertilizer Granulator , Ceramic Sand Proppant Disc Pelletizer
High Efficiency Disc Organic Fertilizer Granulator , Ceramic Sand Proppant Disc Pelletizer
Specifications
Brand Name :
gofine
Model Number :
YZ-500
Certification :
IOS9001/CE
Place of Origin :
china
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30set/monthly
Delivery Time :
5-8work-days
Packaging Details :
nude cargo
Price :
Negotiation
After-sales Service Provided :
Engineers available to service machinery overseas
Application :
Fertilizer Granulation
Name :
Ceramic Sand Proppant Disc Pelletizer / disk Granulator
Capacity :
3-5T/H
Warranty :
3 Years
Power(W) :
0.55-18.5kw
Description

Ceramic Sand Proppant Disc Pelletizer / Disk Granulator

Working Principles:

♦ The pulley and the belt are driven by the main motor and the pinion is driven by the reduction gear.

♦ The pinion gear is split with the large gear fixed at the bottom of the disc, and they mesh with each other and work in opposite directions.

♦ The large gear is mounted on the granulation disc fixed on the frame adjustment plate through a professionally designed tapered hole.

♦ The granulation disc is continuously rotated, and the spray device is used to evenly bond the materials together to form a spherical shape.

♦ In addition, an automatic material feeding system is designed on the upper part of the granulation tray to prevent the material from sticking to the wall, thereby greatly improving the service life of the machine.

♦ As the motor continuously rotates and the material continuously enters, mass production can be realized to meet the needs of the user.

Product Details

  1. Uniform granulation,high granulation rate,stable operation,durable equipment and long service life.
  2. The main gear of granulator adopts high frequency quenching technology, and its service life is doubled.
  3. The plates are reinforced with a number of radiant steel plates,which are durable and never deformed
  4. There is high strength fiberglass in the granulation pan making the machine durable

​parameter

Model

Diameter of

pelletizing disc(mm)

disc edge

height

(mm)

 speed(r/min) power(kw) Throughput(T/h) Reducer Model Shape size(mm)
YZ-500

500

 200 32 0.55 0.02-0.05 BWY0-43-1.55KW 650*600*800
YZ-600 600 280 33.5 0.75 0.05-0.1 BWY0-43-1.55KW 800*700*950
YZ-800 800

200

 21 1.5 0.1-0.2 XWD4-71-1.5KW 900*1000*1100
YZ-1000 1000 250 21 1.5 0.2-0.3 XWD4-71-1.5KW 1200*950*1300
YZ-1200 1200 250 21 1.5 0.3-0.5 XWD4-71-1.5KW 1200*1470*1700
YZ-1500 1500 300 21 3 0.5-0.8 XWD5-71-3KW 2060*1700*2130
YZ-1800 1800 300 21 3 0.8-1.2 XWD5-71-3KW 2060*1700*2130
YZ-2000 2000 350 21 4 1.2-1.5 XWD5-71-4KW 2260*1650*2250
YZ-2500 2500 450 14 7.5 1.5-2.0 ZQ350 2900+2000*2750
YZ-2800 2800 450 14 11 2-3 ZQ350 3200*2200*3000
YZ-3000 3000 450 14 11 2-4 ZQ350 3400 2400*3100
YZ-3600 3600 450 13 18.5 4-6 ZQ400 4100* 2900*3800

High Efficiency Disc Organic Fertilizer Granulator , Ceramic Sand Proppant Disc Pelletizer
