Sand Portable Compact Trommel Screener Fertilizer Rotary Trommel Screen

Introduction

the main structure of Compact Trommel Screener is cylindrical drum, which is inclined and installed on the frame. The geared motor is connected to the drum device through a coupling, the driving drum will rotate around the axis direction. When the materials enters the drum device, due to the tilt and rotation of the drum device, the materials on the screen surface is overturned and rolled so that the fine material is discharged through the discharge port at the bottom of the back end of the drum of trommel screen, and the coarse material is discharged through the discharge port at the tail of the drum discharge.

Self-cleaning cage Compact Trommel Screener rotates reasonably the central separation drum of the equipment through the gearbox type deceleration system. During operation, the material enters the cylinder net from the upper end of the central separation cylinder. During the rotation of the separation cylinder, the fine material is separated from the top to the bottom through the screen interval composed of annular flat steel, and the coarse material is separated from the lower end of the separation cylinder discharged into the pulverizer.

During the separation process, through the relative movement of the screen cleaning mechanism and the screen body, the screen body is continuously "combed" by the screen cleaning mechanism, so that the screen body is always kept clean during the whole working process. , the screening efficiency will not be affected by the clogging of the screen holes. It is custom made according to different materials;

Parameters of Compact Trommel Screener

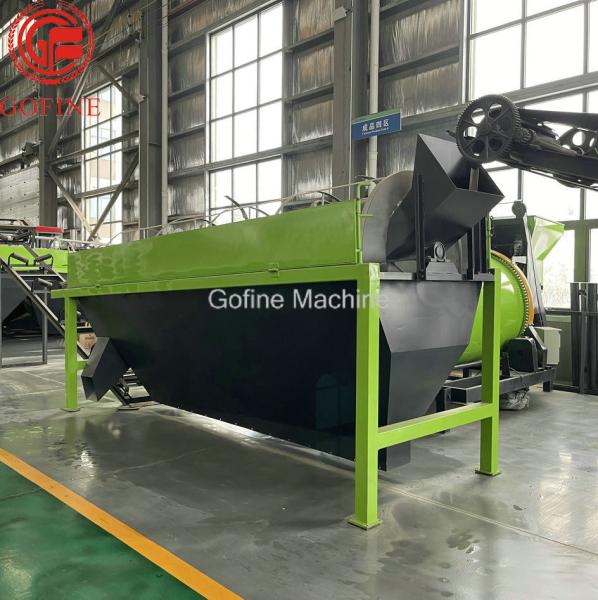

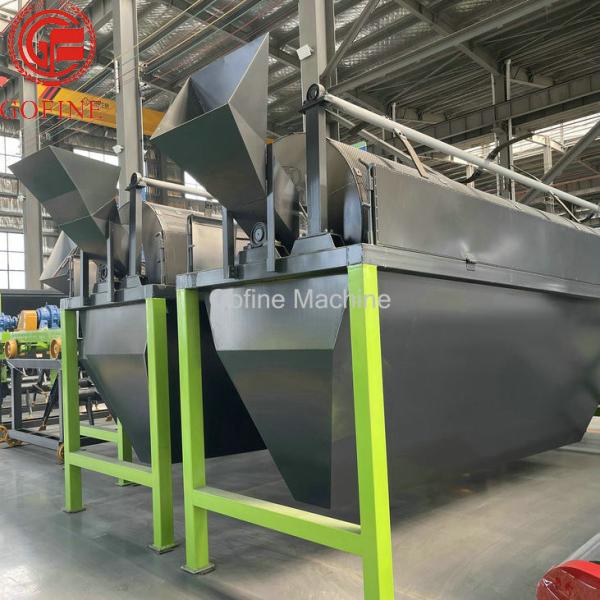

Pictures of Compact Trommel Screener
