Product Introduction

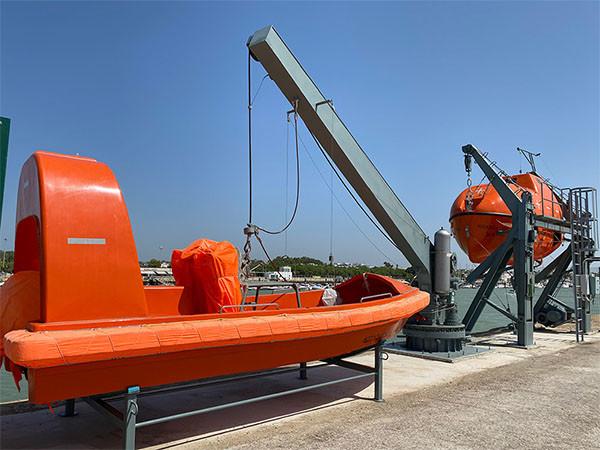

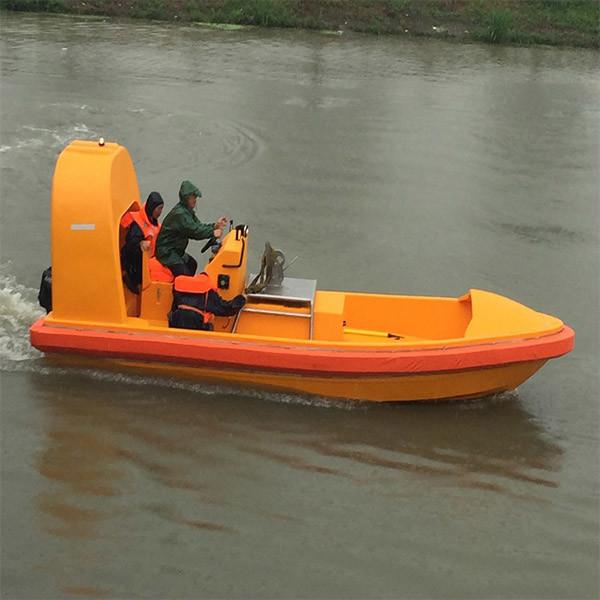

SOLAS Approved 9 Persons FRP 20Knots Fast Rescue Boat FRC is one high speed rescue boat whose speed can be over 30 Knots. It can be installed with 60HP, 90HP, 150HP outboard motors and 110-250KW diesel engines. Also it can load Max. 15 persons with one stretcher. For outboard motor driven fast rescue boat, it is usually launched by single arm slewing davit and diesel engine driven fast rescue boat is usually launched by “A” type davit which is driven by hydraulic winch with a very fast lifting speed. Also the fast rescue boat meets the SOLAS regulations and MED strictly and completely with Wheelmark and approved by the IACS class members.

SOLAS Marine Fast Rescue Boat FRC is used for rescuing people in distress and assembling life rafts with good maneuverability. Vessels must be equipped with rescue craft as required for the safer and faster rescue of persons in distress.Normally the size of offshore rescue boat is 4.5m to 6.5m . Can be made as per different requirements.Diesel Engine Fast Rescue Boat is installed with a self righting air box, which could make Rescue boat self righting while capsized.Cruise Ship Rescue Boats using an anti-slip surface on the deck,stainless steel handrails are arranged on the both gunwale to keep security.The Fender could absorb the impacted energy, effectively protect the body from damage.

The fast rescue boat can be equiped with outboard motor, inboard diesel engine with water jet propulsion. The capacity range is 3-15 persons.

And the launching davit can be single arm slewing davit and "A" type davit. All the FRC fast rescue boats are approved by CCS, BV, ABS, DNV-GL, EC, MED, RMRS, IRS etc. It meets the latest SOLAS regulations.

Main Model

Peculiarity of SOLAS Approved 9 Persons FRP 20Knots Fast Rescue Boat FRC

4.1 Main technical data
length of F.R.P: 6.02m
breath of F.R.P: 2.05m
depth of F.R.P: 0.90m
capacity: 6P
unload weight: 1730kg
total weight: 2225kg
loading temperature: -30~65 centigrade degree
working temperature(sea water): -1~32 centigrade degree
speed(3P): ≥20knots
outside colour: international orange

4.2 propulsion device
engine type: Siyang/BUKH/YANMAR 240HP+WATER JET/Mercury
engine power: 20-177KW
rpm: 3300rpm
Start method: two batteries
Steering method: steering wheel
Indication plate:
Language: English
Material: Stainless

4.3 hook
hook type: single point
safety working load: 40kN

4.4 main parts material
Hull,endoconch: F.R.P(fire-retardant)
Control panel self-rightening device F.R.P(fire-retardant)
Buoyant compartments: polyurethane foam
Fender: Rubber
Handrail: S. Steel
Fuel tank: S. Steel
Hook: galvanized steel
Fastener: S. Steel
Fittings: S. Steel
Name Plate: S. Steel
