IACS Approved Marine Stainless Steel Pressure Water Tank For Sea Water, Fresh Water
IACS Approved Marine Stainless Steel Pressure Water Tank For Sea Water, Fresh Water
IACS Approved Marine Stainless Steel Pressure Water Tank For Sea Water, Fresh Water
IACS Approved Marine Stainless Steel Pressure Water Tank For Sea Water, Fresh Water
IACS Approved Marine Stainless Steel Pressure Water Tank For Sea Water, Fresh Water
IACS Approved Marine Stainless Steel Pressure Water Tank For Sea Water, Fresh Water
Specifications
Brand Name :
GH
Model Number :
Hydrophore Pressure Tank
Certification :
CCS, LR, BV, ABS etc
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 Sets Per Month
Delivery Time :
5-20 Days
Packaging Details :
Plywood Box
Material :
Stainless Steel
Power :
2.2-4kW
Capacity :
120L-2000L
Working Pressure :
0.6Mpa
Pump :
Double Pump
Medium :
Seawater, fresh water
Description

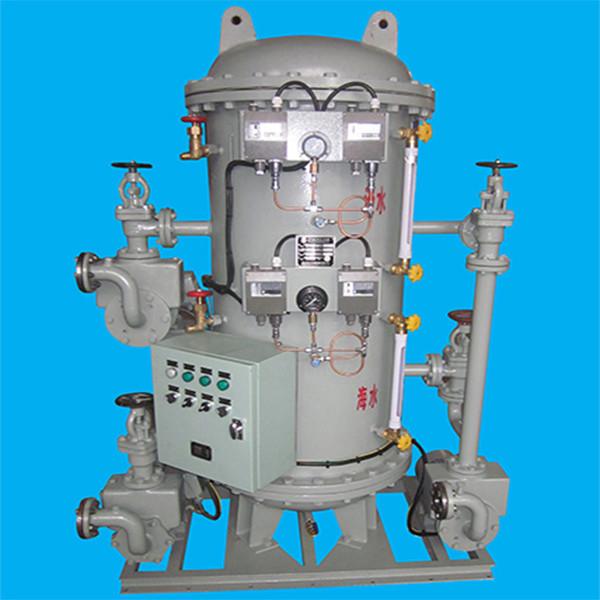

Marine Hydrophore Pressure water tank is mainly used on ship, which is a vessel that hold water and air under pressure.

Pressure water tank is used to supply water to the Fresh Water and Sea Water pipe system, and also regulates the system pressure to meet system demands quickly.

The device uses the pressure water pumped by water pump in tank to compress air so as to keep the water in tank under a proper pressure for the use on board.

Type YLG
Capacity(m3) 0.12 0.2 0.3 0.5 1.0 1.5 2.0 3.0
Working Pressure(MPa) 0.6
Design Pressure(MPa) 0.7
Strength Test Pressure(MPa) 1.05
Tightness Test pressure(MPa) 0.87
Safety valve open pressure(MPa) 0.63
