IACS Approved IMO MEPC.107(49) Standard Marine 15ppm Oil In Water Bilge Alarm
IACS Approved IMO MEPC.107(49) Standard Marine 15ppm Oil In Water Bilge Alarm
Specifications
Brand Name :
GH
Model Number :
OCM 15ppm Bilge Alarm
Certification :
CCS, EC
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
6000 Sets Per Month
Delivery Time :
2-7 Days
Packaging Details :
Plywood Box
Monitoring Range :
0-50ppm
Accuracy :
Better than 5mg/l
Display :
LCD Display
Linearity :
better than 2 %
Degree of Protection :
IP 45
Standard :
IMO.Res.MEPC.107（49）
Description

The bilge water alarm device has been designed specifically for use in continuous monitoring of oil-in-bilge water, 15 ppm alarm and control of discharge, detection, memory and enquiry of alarm status. It is applicable to detect boiler condensate water. And it applies to oil and chemical industries as well.
The 15ppm bilge water alarm device use the technology of near infrared measurement, which can display the detected result in real time. The unit is supplied with 2 works-adjusted alarms. The set point (15ppm factory set) could be adjusted at any moment through the panel. If an alarm set point is exceed, the alarms are visible at the front panel and the appropriate relays are switched, that can be achieved the movement control of overrun
closedown or the treatment of overrun recycle, and the memory and enquiry of alarm record. Furthermore, a 4 - 20mA (equal to 0 – 15ppm) effective signal output is available for driving a recorder or external meter.
The certificate of type approval test has been obtained through comprehensive tests. This device is in accordance with the IMO-Resolution MEPC.107 (49).

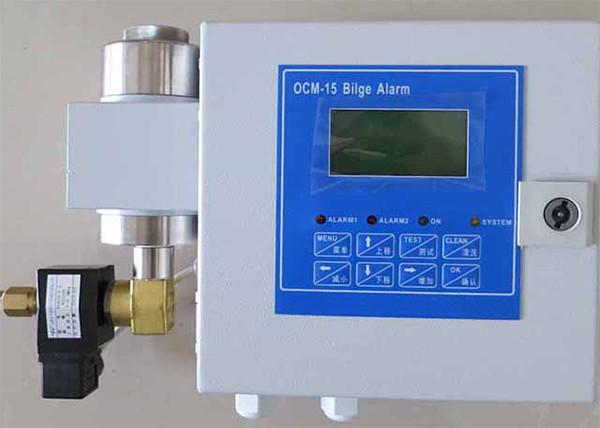

Type: OCM-15
Range: 0 – 30 mg/l can exceed to 50mg/l
Accuracy Better than 5mg/l
Linearity better than 2 %
Display LCD display
Power Supply: 220VAC/110VAC ± 10%
Consumption: 10 VA
Alarm Points: 1-15ppm
Alarm Points works set: 15ppm
Alarm 1 delay 0-10 second.
Alarm 2 delay 0-10 second
Alarm output Two way relays output
Alarm relay output contact value 5A, 250VAC
Alarm relay output feedback signal test Two way working status contact testing
Alarm Indication: Red LED's
Output Signal: 4 - 20 mA, reversible Ri < 500 Ω
Sample Water Pressure: 0.01 -6 bar
Sample Flow: approx. 0.2 - 4 l/min depend on pressure
Ambient Temperature: 0 to + 55° C
Sample Water Temperature: + 1 to + 80° C
Size (over all): 360 mm W x 240 mm H x 105 mm D
Degree of Protection: IP 45
Weight: 8kg
Pipe Connections: R 1/4" Female
Standard IMO.Res.MEPC.107(49)
