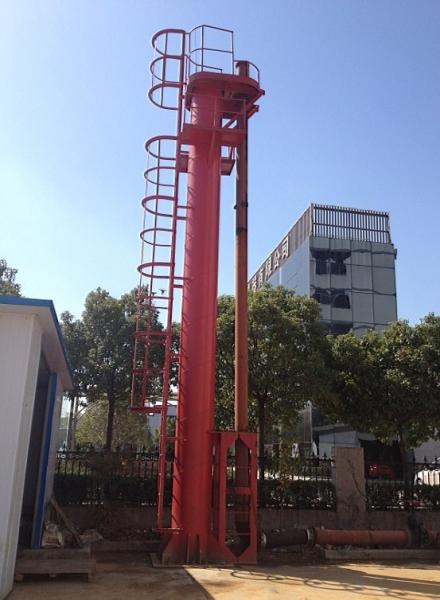

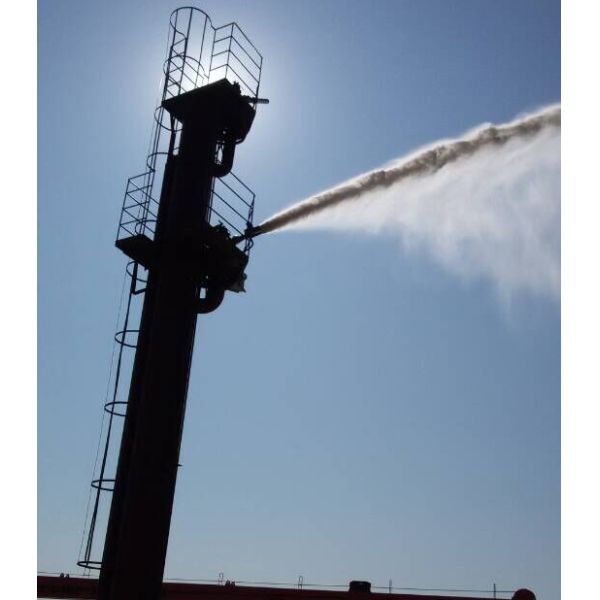

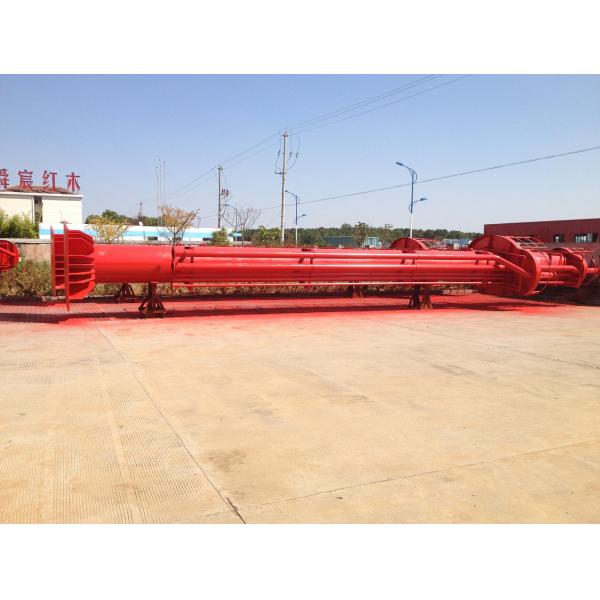

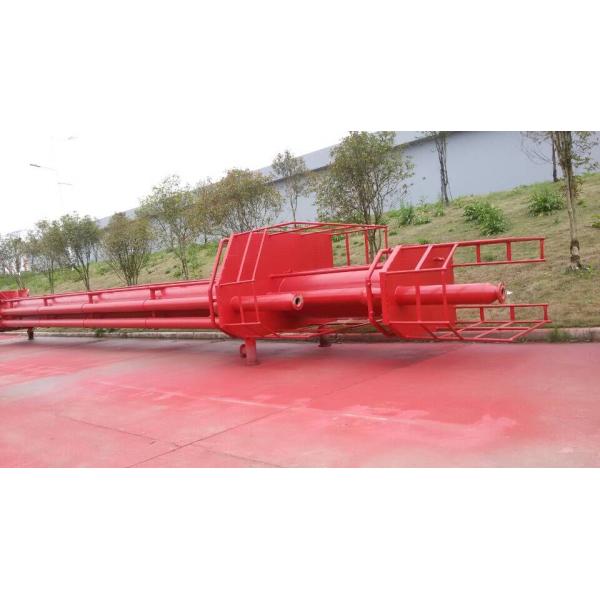

Stainless Steel 3.0-30.0m Fire Fighting Fire Monitor Tower
Stainless Steel 3.0-30.0m Fire Fighting Fire Monitor Tower
Stainless Steel 3.0-30.0m Fire Fighting Fire Monitor Tower
Stainless Steel 3.0-30.0m Fire Fighting Fire Monitor Tower
Stainless Steel 3.0-30.0m Fire Fighting Fire Monitor Tower
Stainless Steel 3.0-30.0m Fire Fighting Fire Monitor Tower
Specifications
Brand Name :
GH
Model Number :
Fire Monitor Tower
Certification :
CCS
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
120 Sets Per Month
Delivery Time :
5-15 Days
Packaging Details :
Naked In Container
Material :
Q235 Stainless Steel
Type :
Single Layer / Double Layer Monitor Tower
Water Pipe Diameter :
100~300mm
Spray Cooling Pipe Diameter :
150mm
Main Pipe Diameter :
529~1020mm
Description

The fire fighting Fire Monitor Tower is a fire monitor supporting use with the fire fighting SYSTEM.
Its structure is strictly in accordance with the relevant national standards and design, it is security and stability.
The fire tower has a certain safety protection measures and spray cooling measures.
There are ladder&protection cage and lightning protection
Type:Double Layer and Single Layer available

Stainless Steel 3.0-30.0m Fire Fighting Fire Monitor Tower

Technical Specification of Fire Monitor Tower
Descriptions: Produced on requirement
Model: PT3~PT25 Height: 3m~25m
Materials: Q235 steel Platform with: Fire Monitor
Tower with: Ladder / Protection cage
Thunder proof: 12× 1M copper stick
Anti-corrosion: Painting after get rid of rust
Priming: First anti-rust painting
Second epoxy resin
Surface painting: First anti-corrosion epoxy resin
Second polyurethane (RAL3000)

Stainless Steel 3.0-30.0m Fire Fighting Fire Monitor Tower

Specification of Fire Monitor Tower:

Parameter Model
PT6 PT8 PT10 PT12 PT16 PT18 PT20 PT30
Up-platform (m) 6 8 10 12 16 18 20 30
Down-platform (m) 3.5 5.5 7.5 9.5 13.5 15.5 17.5 27.5
Main pipe Dia (mm) 529 720 820 920 1020
Foam pipe Dia (mm) 100/125/150/175/200/250/300
Water pipe Dia (mm) 100/125/150/175/200/250/300
Spray cooling pipe Dia(mm) 150
Positioning template 1.1m*1.1m 1.4m*1.4m

Stainless Steel 3.0-30.0m Fire Fighting Fire Monitor Tower
