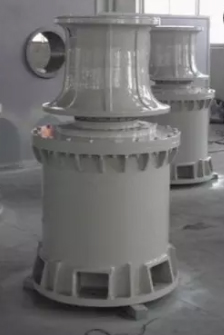

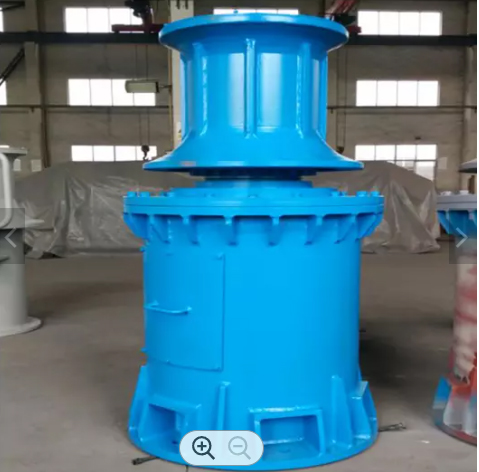

IACS Approved Marine Electric Hydraulic Vertical Capstan
IACS Approved Marine Electric Hydraulic Vertical Capstan
IACS Approved Marine Electric Hydraulic Vertical Capstan
IACS Approved Marine Electric Hydraulic Vertical Capstan
IACS Approved Marine Electric Hydraulic Vertical Capstan
IACS Approved Marine Electric Hydraulic Vertical Capstan
Specifications
Brand Name :
GH
Model Number :
Marine Capstan
Certification :
CCS, BV, ABS, DNV-GL, RMRS, LR, RINA
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600 Sets Per Month
Delivery Time :
5-30 Days
Packaging Details :
Plywood Pallet
Material :
Steel
Capacity :
10-300KN
Power :
Hydraulic, Electric, Air
Description

Our marine vertical capstan is approved by CCS, BV, ABS, DNV-GL, LR, RINA, NK, KR, RMRS, IRS etc

marine hydraulic winch /vertical capstan winch/deck capstan

The Marine capstan can be divided into electric capstan, hydraulic capstan and pneumatic capstan according to the driving mode.

The electric winch is driven by the motor. It is suitable for the winch with working force less than 20T. The motor can be divided into single speed, double speed, three speed, frequency conversion and so on. Large electric capstan can only choose frequency conversion motor, frequency conversion motor start will not cause impact on the power system.

The hydraulic winch is driven by the hydraulic pump station and the hydraulic motor. The hydraulic winch starts smoothly and does not cause shock to the power system. Hydraulic capstan through hydraulic proportional valve can achieve infinitely variable speed.

Pneumatic winch driven by pneumatic motor, generally not more than 20T working tension.

Specific details of capstan windlass used in boat anchor :

  • Driven type: Electric ,hydraulic
  • Structure type: Vertical ,horizontal
  • Chain diameter: ø12 ~ ø26 mm
  • Working speed:9 m/min
  • Usage:Anchoring

Vertical capstan winch is a machine driven by a motor, it’s usually mounted on the deck in a vertical position, and the power modes are optional according to the needs, such as electric power, hydraulic power, gas or petrol power, manual power.

IACS Approved Marine Electric Hydraulic Vertical Capstan

The boat electic capstan is applies to rated load less than 20T and can be driven by electric motor.

Single, double , triple speeds or VFD motor are available.

VFD motor is recommended for heavy load capstan as it will not bring impact to power supply system when start.

IACS Approved Marine Electric Hydraulic Vertical Capstan

Model Mooring Load (KN) Nominal Speed (m/min) Dia. Of Wire (mm) Motor Power (kw)
GHV-5 5 18 11 3
GHV-10 10 18 11 5
GHV-15 15 18 13 8
GHV-20 20 18 15 11
GHV-30 30 18 17.5 16
GHV-50 50 18 20.5 16
GHV-70 70 18 26 22
GHV-100 100 18 28 45
GHV-120 120 18 32.5 60
GHV-150 150 18 36.5 60
GHV-200 200 18 40 75
GHV-250 250 18 46 75

IACS Approved Marine Electric Hydraulic Vertical Capstan
