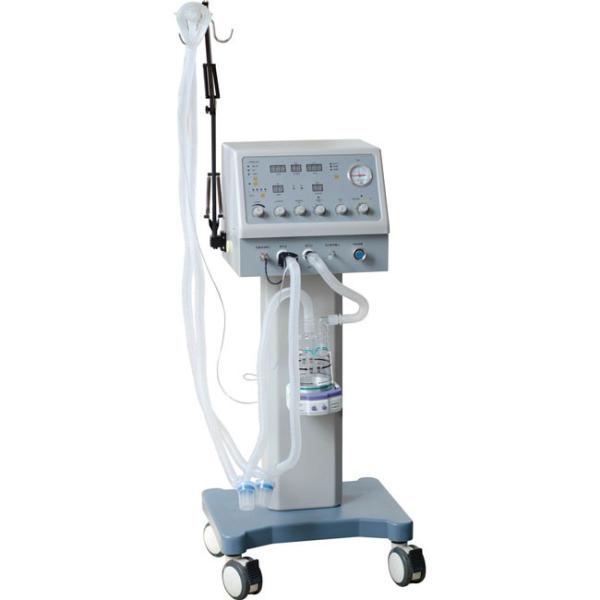

Portable Medical Ventilator Machine LED Display For Emergency Care
Portable Medical Ventilator Machine LED Display For Emergency Care
Specifications
Brand Name :
OEM
Certification :
CE
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000pcs/day
Delivery Time :
7 days
Packaging Details :
Carton Box
Display :
LED
Logo :
as you required
Color :
White
Product name :
hospital ventilator machine
Function :
Emergency Care,for premature baby care,Personal Safety
Type :
Breathing Apparatus
Description

CE ISO approved hospital ventilator machine medical

Ventilator is a model of multi-purpose life-support machine. This machine uses the air operated electric control, the microcomputer technology. Selects imports the primary device to guarantee the equipment movement stably reliable. Colored (TFT) the screen demonstrates each kind of examination and the establishment parameter, which is a section of ideal breath treatment plant. It is suitable in all different levels of hospitals for internal medicine of surgery, gynecology, pedology, first aid, ICU and so on which are administrative offices equipments.

Features
1. Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory therapy 2. Display: High visibility, wide angle LED alphanumeric data display, equipped with tactile analog parameter controls 3. Equipped with high precession infrared turbine pressure and flow sensors 4. Power failure support functions: Automatically converts to standby mode during AC power outages 5. Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor 6. Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure oxygen failure and other alarms. 7. 9 Level adjustable humidifier

Specifications

Product Name
Ventilator Machine Medical
Model
500
Display
LED
Ventilation Mode
A/C, IPPV, SIPPV, IMV, SIMV, MANUAL
Minute Volume
Greater than or equal to 18L
Back-up Power Supply
4 hours
Tidal Volume
Adjustable range: 50-1500ml, Display range: 0-2000ml
Output Oxygen Concentration
＜50%
Respiratory Rate
6-60bpm
Pressure Limit
1-6kPa
Inspiratory/Expiratory (I:E) Ratio
1:1.5-1:3.0
PEEP
1-10cmH2O
SIMV Rate
1-12bpm
Inspiratory Pressure Trigger
-4-10cmH2O
Maximum Safe Operating Pressure
≤6.0 kPa
SIGH
1 sigh breath in every 80-120 breaths
Airway Pressure Alarm
Upper Limit: 0.9~5.4kPa, Lower Limit: 0.5kPa
Gas Supply Requirement
280~600 kPa medical grade oxygen
FAQ
Q: Who we are ?
A: We are a professionally-managed profitable company focus on distributing and exporting a complete rage of medical equipment & consumables.
Q: What we do ?
A: We build a one-step purchase centre of a wide range of high quality medical equipment & consumables, which are also supplied to China Top 10 Hospitals.
Q: Why do our products cost more than other competing Chinese Companies ?
A: Because our quality is the best of China. We only get cooperated with the biggest and well equipped powerful factories in China, rather than the cheapest sources resulting in zero quality control. All the products are also provided for China Top 10 Hospitals by our sub-dealers.
Q: How can I be sure that SHM is the best source ?
A: Seeing is believing. We invite you to our stores, cooperated facilities and check for yourself. We shall be glad to take you to the other companies for comparison. This will clear all your questions and doubts.
Q: What is your quality policy ?
A: Not only our products conform to ISO 9001:2008, EN ISO 13485:2012 & CE standards, but we also constantly exceed international quality norms. We boast of the most modern factories which have the state of the art manufacturing facilities. Also, rigorous quality assurance resources ensure stricter quality control.
Q: What is the company's philosophy ?
A: The company believes in long term relationship and mutual growth as objective. At SHM, quality is a culture and service a tradition.
Q: Do you ship to my country ?
A: The company is currently exporting to more than 80 countries.

If you need to know more about our medical ventilator, please feel free to send us a inquiry.
