Panoramic lens Camera High-resolution Borehole Televiewer
Panoramic lens Camera High-resolution Borehole Televiewer
Specifications
Place of Origin :
Chongqing,China
Brand Name :
GOLD
Model Number :
JGS-1B
Certification :
ISO9001
Price :
1000$
Packaging Details :
Wooden case
Delivery Time :
3 working days
Payment Terms :
FOB/CIF/CFR
Supply Ability :
100 sets/month
MOQ :
1 unit
Camera probe :
Diameter: 50/80mm; Length: 470mm
Camera :
Sony inducer 1/3’’ CCD
Specialized cable :
Length: 0-2000m (optional)
Control unit :
220V/380V/12V optional voltage mode
Downhold pulley :
Logging depth counter equiped
Logging winch :
Manual & electric winch available
HD DVR :
SD card
Description

Specification:

No. Configuration Dimension Specification

1

 Camera probe Diameter: 50/80mm
Length: 470mm		 1. Camera lens are manufactured with high-quality resins.
2. High-quality steel body with solid structure, not easy to be damaged.
3. Maximum bearable pressure: 20Mpa (can reach the depth of 2000m under water)
4. 6-12 LED lamps are available
2 Camera 1. Sony inducer 1/3’’ CCD
2. HD 850 TVL image definition
3. Waterproof
4. Panoramic lens camera
3 Specialized cable Length: 0-2000m (optional) 1. With steel wire
2. Max bearable tension: 260kg
4 Control unit 1. 220V/380V/12V optional voltage mode
2. Aeronautic aluminium case
5 Downhold pulley Logging depth counter equiped

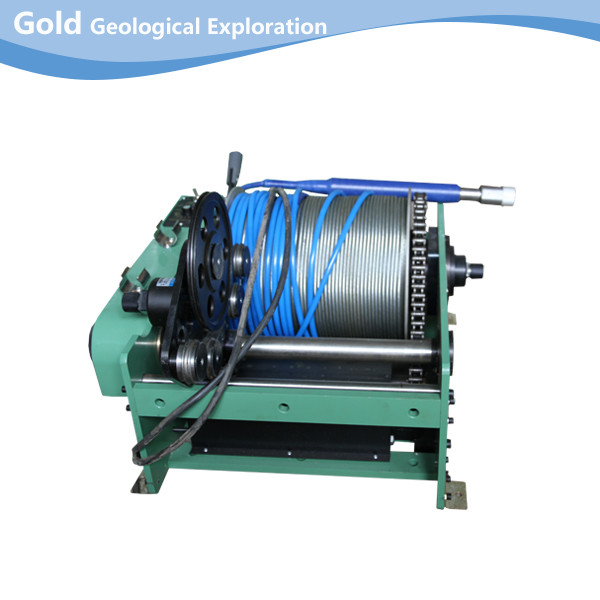

6 Logging winch Manual & electric winch available
7 HD DVR SD card

Main application:
Stratum structure divide
Well wall stratum crack
Karst development discrimination
Distinguish fractured development zone
Determine the karst distribution position
Long time underground borehole monitoring

Main features:
Real time video, collect, record
Clearly image show on ground instrument
Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole
Widely used in water well, oil field, coal field, engineering geology, dam, reservoir,
oceaneering.

Contact information

Jimmy Yin

Chongqing Gold Mechnical & Electrical Equipment Co.,Ltd
Add: No.2501, China Resource Building, Xiejiawan Street, Jiulongpo District, Chongqing, China.
Website: www.geophysical-equipments.com
Email: gold02(@)hy-industry.com
Mobile/Wechat +86-15998954947

Tel: +86-23-62794421 Fax: +86-23-62940030
