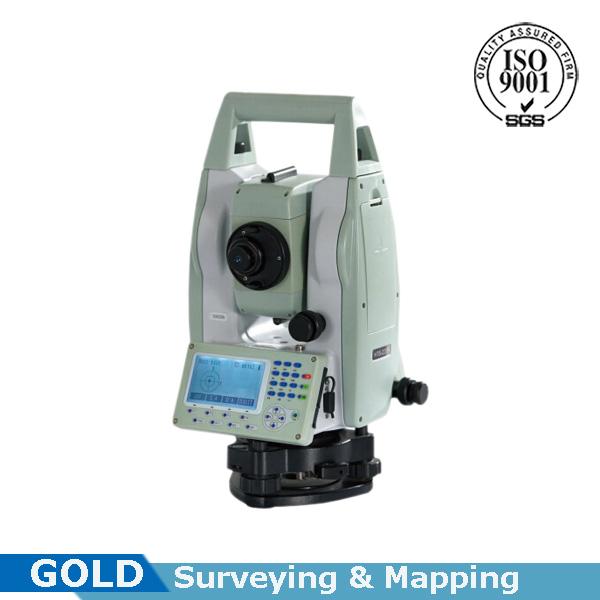

Cheap Price Small light Handheld Total Station HTS-220/RDistance Measurement

Specification:
Angle Measurement
Measurement Method.......................................................Absolute Encoding
Minimum Readout........................1’’/5’’/10’’(0.3mgon/1.5mgon/3mgon)adjustable
Accuracy..............................................................................2’’

Distance Measurement (with reflector)
Single Prism.........................................3000m (9,842ft.) under good condition
Three Prisms........................................6000m (19,685ft.) under good condition
Reflective Sheet...........................................................800m (2,624ft.)
Accuracy........................................................................2mm + 2ppm
Measuring Time (Fine/Quick/Tracking)..........................................1.5s/1s/0.5s

Distance Measurement (without reflector)
Reflectorless Range.........................................................350m (1,148ft.)
Single Prism............................................................ >7500m (24,606ft.)
Accuracy.........................................................................3mm + 2ppm
Measuring Time........................................................................1.5S

Telescope
Magnification...........................................................................30X
Field of View.........................................................1°30’ (2.7m at 100m)
Minimum Focusing Distance...............................................................1.5m
Reticle..........................................................................Illuminated

Compensator
System....................................Single-axis Liquid tilt sensor/Dual-axis (optional)
Working Range............................................................................±3’
Setting Accuracy.........................................................................1’’

Communication
Bluetooth
Interface.......................................Standard RS232,SD card,USB pen drive,mini-B
Internal Data Memory.....................................................Approx 20000 points
Data Format...........................................................................ASCII

Operation
Operation system..................................................Real-time Operating System
Display...........High resolution backlight black and white display with contrast adjustment.
Graphic.....................................................................280 * 160 pixels
Character............................................................6 lines * 25 characters
Keyboard......................................2 sides Alphanumeric backlight crystal keyboard

Laser Plummet
Type....................Laser point, 4 brightness levelsAdjustment/Optical plummet (optical)
Centering Accuracy..............................................1mm at 1.5m instrument height

Power Supply
Battery Type......................................................Rechargeable Li-ion battery
1Voltage/Capacity..................................................ZBA-400: 7.4V(DC) /3000mAh
Operating Time with ZBA-400..................................................Optimal 16 hours
(Continuous angle measurement every 30 seconds)/10 hours (typical)
Measuring Times......................................... ...............Approx. 12000 times

Weight
Weight (Incl, Battery&Tribrach).................. ..................Approx. 5.5kg (12.1lb.)

Environmental
Operating Temperature.............................................-20℃ ~+50℃ (-4F to +122F)
Storage Temperature..............................................-40℃ ~+70℃ (-40F to +158F)
Dust&Water Proof (IEC60529 Standard)/Humidity: IP65,95%,non-condensing

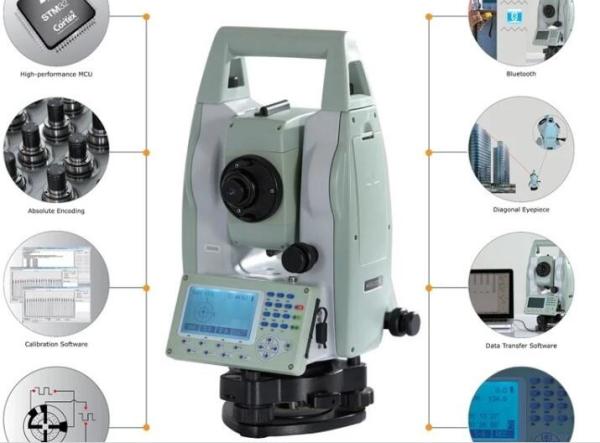

Dual-axis Compensation:
The HTS-220/R is configured with advanced dual-axis compensator for auto error elimination and auto accuracy compensation.

Absolute Encoding:
The absolute encoding disk ensures high accuracy, efficiency and stable performance. Initialization is needless but to measure the angle immediately as the HTS-220/R is turned on. The azimuth information won’t be missed even the HTS-220/R is power-off unexpectedly.

High-performance MCU:
The STM32 MCU based on ARM Cortex-M processor enables the HTS-220/R has extra high processing speed and low-power consumption.

Bluetooth:
The Bluetooth wireless technology makes HTS-220/R accessible to any data collector for real-time communication. The third party field software such as Carlson SurvCE is fully compatible with the HTS-220/R.

Data Storage:
Diversified data transfer options such as SD card, USB pen drive, mini-B interface.

Backlight:
The display and keyboard with backlight for working in the dark.

Diagonal Eyepiece:
Support diagonal eyepiece for observation at steep line of sight.

Calibration Software:
The proprietary Calibration software is accessible for real-time diagnosis to ensure trouble-free operation.

Data Transfer Software:
The proprietary data transfer software supports different type of output data format, which can be used in autoCAD or other brands’ post processing software.
