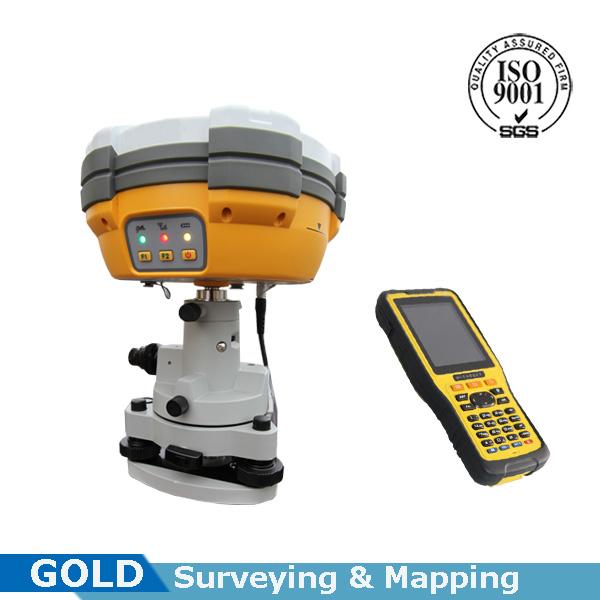

Rinex/Raw Multi-format Data GNSS RTK GPS System Mobile Station
Rinex/Raw Multi-format Data GNSS RTK GPS System Mobile Station
Specifications
Place of Origin :
Chongqing,China
Brand Name :
GOLD
Certification :
ISO9001
Model Number :
HDG-370
Channel :
220
GPS :
L1 C/A, L2E, L2C, L5
Glonass :
L1C/A, L1P, L2C/A, L2P
SBAS :
L1C/A, L5
BDS :
B1,B2
Bluetooth :
Yes
Static and Fast Static GNSS surveying :
Horizontal: ±(2.5mm+1ppm RMS); Vertical: ±(5mm+1ppm RMS)
Post processing kinematic(PPK/Stop & Go) GNSS surveying :
Horizontal: ±(1cm+1ppm RMS); Vertical: ±(2.5cm+1ppm RMS)
Initialization time :
typical 10 minutes for base while 5 minutes for rover
Initialization reliability :
typical>99.9%
Satic aseline length :
30-40km for low latitude area; up to 100km
Fast Satic aseline length :
<20km; Stop & Go: <20km; PPK: <15km
Data storage :
1 GB
Data download :
COM/USB
Interval :
1s-60s adjustable
Elevation :
1°-60° adjustable
Data update rate :
1-50hz
Communications :
2 RS-232 port; 1 USB port; 1 bluetooth port; 2 external DC power input port
Dimension :
19.5cm * h10.4cm
Weight (with battery) :
1.3kg (incl.battery)
Water/dust proof :
IP67, 3m(9.84ft) natural fall onto concrete
MOQ :
1 set
Price :
$0-5
Packaging Details :
Wooden case
Delivery Time :
10 working days
Payment Terms :
FOB/CIF/CFR
Supply Ability :
100 sets/month
Description

Rugged and reliable:
1. IP67, withstands a 3-meter natural fall onto concrete
2. Rapid tracking and optimum avoidance or reduction of obstruction and multipath effect to ensure superior positioning capability.
Competitive and easy to use:
1. Simply position and turn on, data will be recorded automatically
2. Supports high-speed USB data downloading.
3. Flexible working modes of static/PPK/stop & Go to deliver high-accuracy survey.
Powerful battery:
1. Powered by high-capacity (5000mAh) Li-ion battery to insure whole day operation.
User-friendly geomatics office (HGO) software:
1. Provides a total GPS/GLONASS/BDS processing solution.
2. Standard rinex data format and raw data format can be processed flexibly and easily.
Advanced V30ST static receiver
1. Embedded Linux OS.
2. Supports recording of raw data format and standard rinex format simultaneously.
3. Easily upgrade to RTK receiver.
