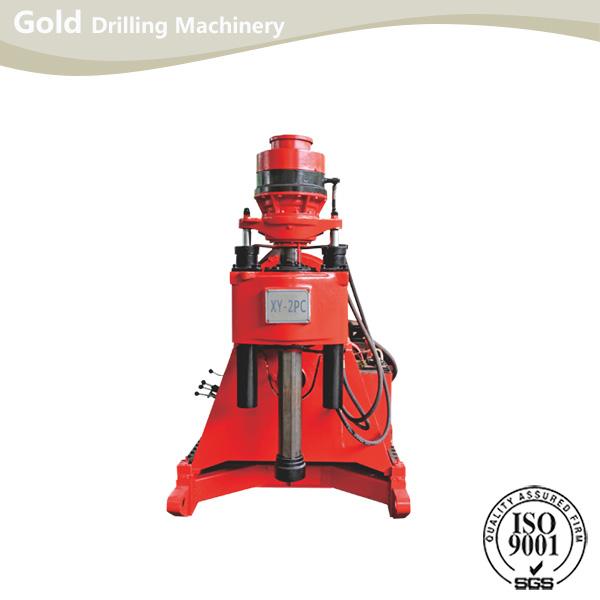

Dual speeds level Hydraulic feeding high-speed water drill machinery core drill machinery
Dual speeds level Hydraulic feeding high-speed water drill machinery core drill machinery
Specifications
Place of Origin :
Chongqing,China
Brand Name :
Gold
Certification :
ISO9001-2000
Model Number :
XY-2PC
MOQ :
1 Unit
Price :
$1000
Packaging Details :
Wooden case
Delivery Time :
15 working days
Payment Terms :
FOB/CIF/CFR
Supply Ability :
50 units/month
Drilling Depth :
150-300m
Spindle speed forward :
81/164/298/334/587/1190 (r/min)
Spindle speed reverse :
98/199 (r/min)
Maximum torque :
1110Nm
Angle range :
0~90°
Spindle stroke :
500mm
Power unit :
Electric YD180L-4/8 17/11KW, Diesel 295D 13.2KW
Overall dimensions :
1720 * 800 * 1300mm 650kg
Description

Main Specification:

Depth: 150-300m

Spindle speed: Forward: 81/164/298/334/587/1190 (r/min)

Reverse: 98/199 (r/min)

Maximum torque: 1110Nm

Angle range: 0~90°

Spindle stroke: 500mm

Power unit: Electric YD180L-4/8 17/11KW, Diesel 295D 13.2KW

Overall dimensions: 1720 * 800 * 1300mm 650kg

Applications:

This drilling rig is widely used in tunnel drilling, geological prospecting, also suitable for geological drilling for hydroelectric power station building, highway, roadway, harbor and drilling pile grouting hole.

Features:

This drilling rig has such features as small body, light weight; especially available for construction of hydroelectric power station.

It can get two series of speeds by means of substitution of one pair of helical gears for other one.

Core Drilling Machine (XY-2PC)

Model

XY-2

XY-2B

XY-44C

GX-50

Depth (m)

100-530

100-530

750-1400

20-100

Diameter (mm)

75-200

96-200

93-200

75-150

Power unit

Electric/22kw

Electric/22kw

Electric/37kw

Electric/7.5kw

Diesel/20kw

Diesel/20kw

Diesel/50kw

Diesel/8.8kw

Dimension (mm)

2015*900*1690

2220*900*1880

3038*1100*1938

1360*620*1080

Weight (kg)

950

1200

350

360
