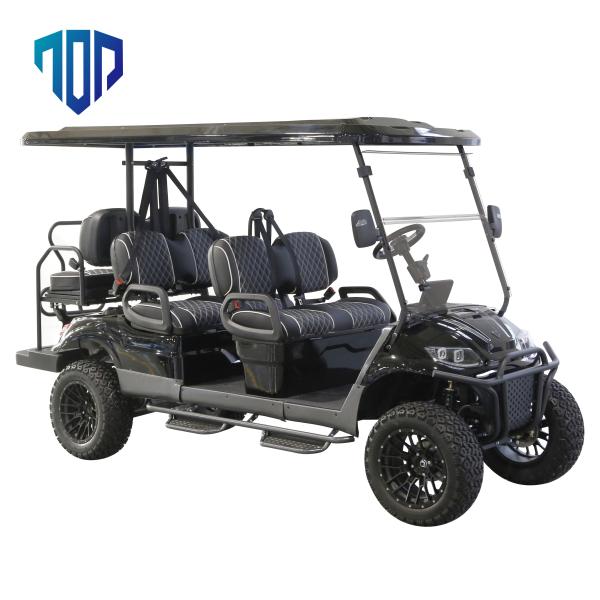

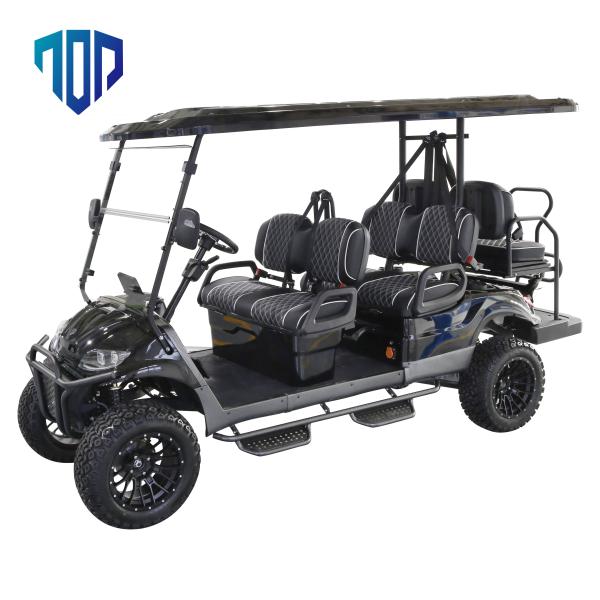

Sightseeing 22-24km/H Off Road Golf Cart 110mm Ground Clearance
Sightseeing 22-24km/H Off Road Golf Cart 110mm Ground Clearance
Sightseeing 22-24km/H Off Road Golf Cart 110mm Ground Clearance
Sightseeing 22-24km/H Off Road Golf Cart 110mm Ground Clearance
Sightseeing 22-24km/H Off Road Golf Cart 110mm Ground Clearance
Sightseeing 22-24km/H Off Road Golf Cart 110mm Ground Clearance
Sightseeing 22-24km/H Off Road Golf Cart 110mm Ground Clearance
Sightseeing 22-24km/H Off Road Golf Cart 110mm Ground Clearance
Specifications
Brand Name :
TOP GOLF
Model Number :
EV4+2G
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 per Month
Delivery Time :
30 days
Packaging Details :
Container
Type :
Electric sightseeing car
Seats :
5 to 6
Battery Voltage :
48V
Battery :
Maintenance free battery 8V,6 units
Motor :
48V,3.7KW
Color :
optional
special :
safty, low speed, easy handle
Size :
3520*1200*1800mm
Description

6 Seater Off Road Go Kart Frames 110mm Ground Clearance

Product Description

1) Standard equipment
2) Electrical system: 48V DC, 8V deep cycle storage batteries
3) Speed control: solid state continuously variable separately excited speed controller
- Zapi, chopper SEM-1C, electronic forward-neutral-reverse shifting
4) Regenerative pedal down and or pedal up braking
5) Non-contact inductive throttle sensor
6) Enhanced hill climbing ability
7) Full torque, reduce speed reverse
8) Transaxle: high efficiency helical gears, ratio: 12.44:1
9) Brakes: mechanical drum brake on each rear wheel with self-adjuster, non-asbestos
braking plate, auto releasing the parking lock
10) Suspension: independent and automatically suspension with self balance
11) Steering: self-compensating single reduction rack and pinion
12) Speed: 18-24km/h

Specification

Model No. EV4+2G
Motor 48V,5KW
Battery Maintenance Free battery
Charger Delt Q onboard charger/offboard charger
Transaxle Continuously variable
Overall Dimension 3520*1200*1800mm
Ground clearance 100mm
Tread distance Front:900mm/Rear:1000mm
Net weight 590kg
Loading 6 people
Forward speed 22-24km/h
Braking distance ≤6m
Turning radius 4m
Climbing ability safe climbing:20%/Max climbing:30%
Maximum mileage 70-80km

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products , until you get the products. When you got the goods, test them, and give me a feedback.
5.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

Packaging & Delivery
Packaging Details
Remove the sunroof and windshield
1 x 20'GP: 4 units
1 x 40'HQ: 16 units
6 seaters off road go kart frames for sale (LT-A627.4+2)
Port
Shenzhen
