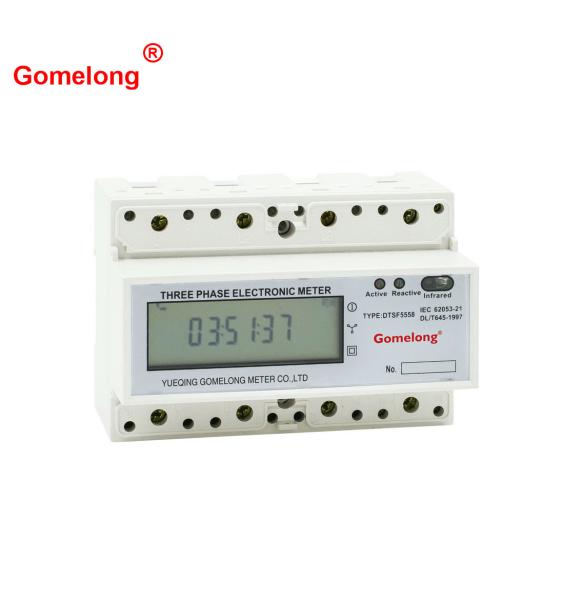

DTS558 Smart Three Phase LCD Modbus Multil-rated Bidirectional Din Rail Smart Energy Meter
DTS558 Smart Three Phase LCD Modbus Multil-rated Bidirectional Din Rail Smart Energy Meter
DTS558 Smart Three Phase LCD Modbus Multil-rated Bidirectional Din Rail Smart Energy Meter
DTS558 Smart Three Phase LCD Modbus Multil-rated Bidirectional Din Rail Smart Energy Meter
DTS558 Smart Three Phase LCD Modbus Multil-rated Bidirectional Din Rail Smart Energy Meter
DTS558 Smart Three Phase LCD Modbus Multil-rated Bidirectional Din Rail Smart Energy Meter
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
GOMELONG
Model Number :
DTS5558
Display Type :
Analog and Digital
Phase :
Three Phase
Measuring Energy Range :
000000-999999.9Kwh
Accuracy Class :
1.0 or 2.0s
Output Voltage :
3x220/380V
Operating Temperature :
-45℃-+55℃
Dimensions :
125mm*88mm*73mm
Rated current :
3*30(100)A
Rated voltage :
3*220/380V
Frequency :
50Hz
Constant :
400imp/kWh
Communication :
RS485 Serial Port
Certificate :
ISO9001/CE
Type :
Multil-rated Din Rail Energy Meter
Standard :
IEC62052-11/IEC62053-21
Color :
White
Packaging Details :
standard export package
Port :
Ningbo
Supply Ability :
100000 Piece/Pieces per Month
Price :
$20.00 - $25.00/Pieces
Description
MASS_APP4_1159_BEGIN

DTS558 Smart Three Phase LCD Modbus Multil-rated Bidirectional Din Rail Smart Energy Meter

MASS_APP4_1159_END

DTS558 Smart Three Phase LCD Modbus Multil-rated Din Rail Energy Meter

Product Description

DTS558 Smart Three Phase LCD Modbus Multil-rated Bidirectional Din Rail Smart Energy Meter DTS558 Smart Three Phase LCD Modbus Multil-rated Bidirectional Din Rail Smart Energy Meter

Application

Model DTS5558 three phase four wire electronic DIN rail active energy meter is a kind of new style three phase four wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net. It can display total energy consumption by step and motor type impulse register.

Features

• Phase loss with 3 x LED display for L1,L2,L3

• Pulse display with 2 x LED display for pulse & reverse

• Reverse direction display with LED

• Small modular size, DIN rail mounted.

• Easy installation to distribution boards, load center, miniature & etc. by identifying where energy is being used.

Technical Parameters

Optional Function For Different Product please ask sales person

1. Communicate RS485 Modbus RTU protocol, baud rate: 1200~9600bps, also have different protocol: DLT645-2007 and IEC 62056-21 (IEC1107) or DLMS

2. Communication infrared IEC62056-21 Or DLT645-2007 (Clinet need to buy HHU)

3. More display function for smart meter:

Voltage (V); Current (A); Frequency ( Hz ); Active Power (kW); Reactive Power (Kvar), Power factor (COS)

Active Energy (kWh), Reactive Energy (Kvarh), Time, Date, Multi Tariff, or etc, please contact sales

4. Remote control: via RS485 cable achieve power on & off ( internal relay or external breaker + trip )

Specification DTS5558-7P
Accuracy Active Class1.0
Reactive Optional
Voltage Rated 3x57.7/100V,3x220/380V
3x230/400V,3x240/415V
Range 0.9Un~1.1Un
Limit 0.8Un~1.2Un
Frequency 50/60Hz
Current Range 3x1.5(6), 3x 5(30), 3x 10(50),
3x 15(90), 3x 20(100), 3x 5(40), 3x 5(100)A
Starting Current 0.4%Ib
Constant Active 1600imp/kWh
Reactive \
Display Type LCD
Digit 6+
Communication Interface Optical/Infrared/RS485 (Optional)
Protocol MODBUS,DLT/645,IEC1107

Dimension

DTS558 Smart Three Phase LCD Modbus Multil-rated Bidirectional Din Rail Smart Energy Meter

wiring DiagramDTS558 Smart Three Phase LCD Modbus Multil-rated Bidirectional Din Rail Smart Energy Meter
