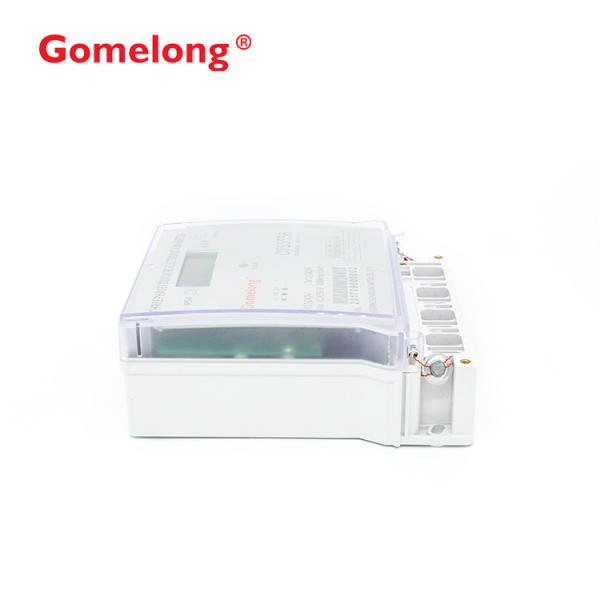

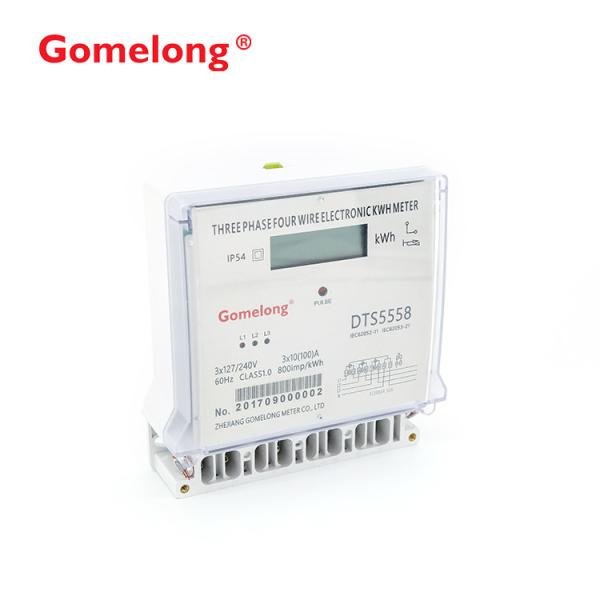

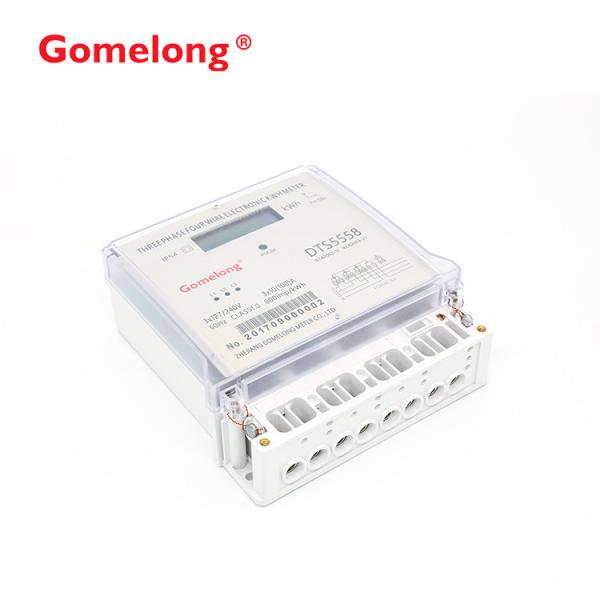

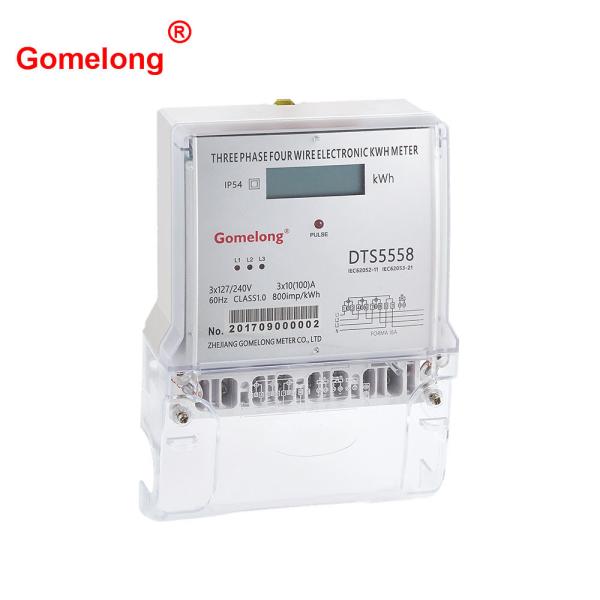

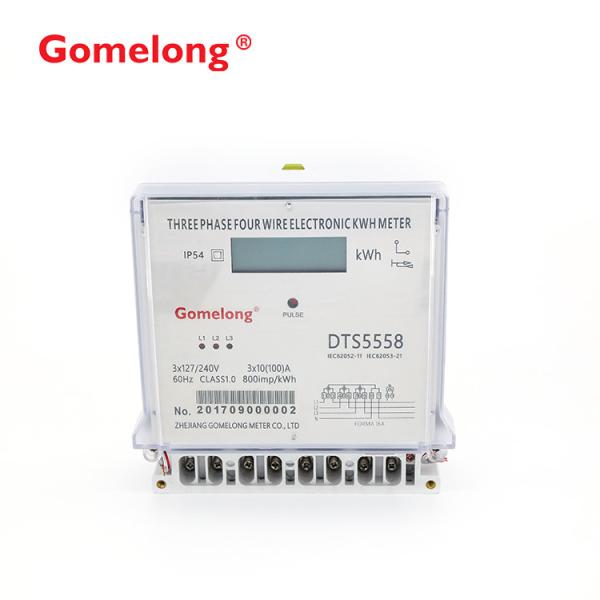

Full PC 3*230/400V electrical meter 3 phase energy meter 100a digital electricity meter

Specifications

Place of Origin :

Zhejiang, China

Brand Name :

GOMELONG

Model Number :

DTS5558 OML057

Display Type :

Digital Only

Phase :

Three Phase

Measuring Energy Range :

0-999999.99 KWh

Accuracy Class :

Class1.0

Output Voltage :

3*220/380

Operating Temperature :

25 ~+55

Dimensions :

156mm*250mm*68mm

Color :

white

Display :

LCD

Frequency :

50HZ

Standard :

IEC62056-21

Ingree protection :

IP54

Certificate :

ISO9001

Type :

Three Phase Digital Energy Meter

Rated current :

3*5(100)A

Communication :

rs485,infrared,PLc(optical)

Packaging Details :

Export carton with inner foam box

Port :

Ningbo

Supply Ability :

100000 Piece/Pieces per Month

Price :

$15.40 - $16.76/Pieces

Description

MASS_APP4_1159_BEGIN

Full PC 3*230/400V electrical meter 3 phase energy meter 100a digital electricity meter

MASS_APP4_1159_END

**Full PC 3*230/400V Three Phase Four Wire LCD Display Energy Meter With Good Quality**

Product Overviews

Full PC 3*230/400V electrical meter 3 phase energy meter 100a digital electricity meter

1. General

DTS three phase electronict watt-hour meter adopts micro-electronic technology, it has high precision and low power consumption, the performance can complies with IEC IEC62052 IEC62053.

It adopts large-scale integration (LSI) and surface mounting technology (SMT), the main components use international famous brand, so the meter has high reliability and long service life. The meter case uses fire-resistant ABS material, and the structure of the meter is air-proofed. Single-chip processing system in the module responsible for the data operation.

2.Technical parameters

Rated Voltage		3×220/380V
Reference frequency		50Hz
Basic Current (Maximum Current)A	3×1.5(6)	3×5(20) ,3×10(40) ,3×15(60) ,3×20(80),3×30(100)
Applicable Standard	IEC62052 IEC62053
Service Lifetime	10 years
Accuracy Class	Class1
Working Temperature	-25℃~+55℃
Starting current	Class 1=0.004Ib; Class 2=0.005Ib.
Starting current(CT)	Class 1=0.002In; Class 2=0.003In
Working Voltage Range	0.9~1.1Un
Power consumption	=2W,5VA
Over voltage protection	6kV
Relative humidity	=95%

3.Outline drawing

4. Diagram

5.installation

The meter must be connected according to connection diagram curve in the meter. It is required to tighten the screws and well connect the conducting plate in the terminal block.

6..Guarantee

18 months in case that the meter is sealed and right operation.
