2022 New Design Smart Single Phase Digital Watt Energy Meter
2022 New Design Smart Single Phase Digital Watt Energy Meter
2022 New Design Smart Single Phase Digital Watt Energy Meter
2022 New Design Smart Single Phase Digital Watt Energy Meter
2022 New Design Smart Single Phase Digital Watt Energy Meter
2022 New Design Smart Single Phase Digital Watt Energy Meter
2022 New Design Smart Single Phase Digital Watt Energy Meter
2022 New Design Smart Single Phase Digital Watt Energy Meter
2022 New Design Smart Single Phase Digital Watt Energy Meter
2022 New Design Smart Single Phase Digital Watt Energy Meter
2022 New Design Smart Single Phase Digital Watt Energy Meter
2022 New Design Smart Single Phase Digital Watt Energy Meter
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
GOMELONG
Model Number :
DDSY5558
Display Type :
Analog and Digital
Phase :
Single Phase
Measuring Energy Range :
0-999999.99 KWh
Accuracy Class :
1.0 or 2.0s
Output Voltage :
160~265V
Operating Temperature :
-20-50℃
Dimensions :
169mm*110mm*62.5mm
Color :
Silver
Display :
LCD
Certificate :
ISO9001
Frequency :
50HZ~60Hz
Product name :
2018 New Design Smart Single Phase Digital Watt Energy Meter
Rated current :
5(80)A
OEM :
Allowed
Material :
full pc
Port :
NingBo
Supply Ability :
200000 Piece/Pieces per Month
Price :
$4.50 - $8.00/Pieces
Description

2018 New Design Smart Single Phase Digital Watt Energy Meter

Product Overviews

2022 New Design Smart Single Phase Digital Watt Energy Meter2022 New Design Smart Single Phase Digital Watt Energy Meter

Application

DDSY5558 is a new type of keypad prepayment meter. Customer purchases energy by the vending network to get a serial number (named as "TOKEN"), and then use the keypad of meter to enter the TOKEN. The credit data will be entered into the meter after the TOKEN being accepted. The TOKEN contains 20 digits and is encrypted. For the purchasing method reason, the meter also named as "Keypad meter”. It complies with open standard STS.

Feature

Payment by 20 digits token

Alarm when low energy/overload/fraud.

With RS485 and optical communication functions for reading meter and setting parameters.

Open terminal cover detection alarm.

Technical parameters

Specification

DDSY5558

DTSY5558

Accuracy

Active

Class1.0

Class1.0

Reactive

Optional

Voltage

Rated

220/230/240V

3x57.7/100V,3x220/380V

3x230/400V,3x240/415V

Range

0.9Un~1.1Un

0.9Un~1.1Un

Limit

0.8Un~1.2Un

0.8Un~1.2Un

Frequency

50/60Hz

50/60Hz

Current

Range

5(20)A ,5(25)A ,5(30)A,5(32)A

3x1.5(6), 3x 5(30), 3x 10(50),

3x 15(90), 3x 20(100), 3x 5(40), 3x 5(100)A

Starting Current

0.4%Ib

0.4%Ib

Constant

Active

1600imp/kWh

400imp/kWh

Reactive

\

\

Display

Type

LCD

LCD

Digit

6+2

6+2

Power Consumption

Voltage Circuit

≤0.8W,10VA

≤0.8W,10VA

Current Circuit

≤4VA

≤4VA

Communication Interface

Interface

Optical/Infrared/RS485 (Optional)

Optical/Infrared/RS485 (Optional)

Protocol

MODBUS,DLT/645,IEC1107

MODBUS,DLT/645,IEC1107

Temperature

Working Temperature

-45℃~+55℃

-45℃~+55℃

Storage Temperature

-40℃~+70℃

-40℃~+70℃

Humidity

≤90%

≤90%

Protection

IP54

IP54

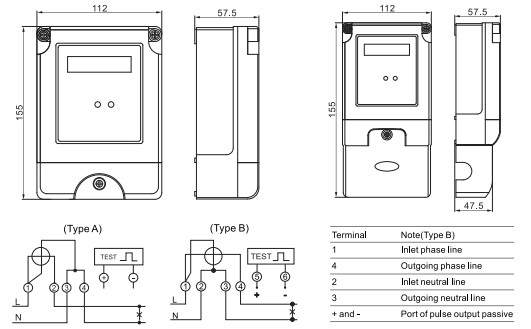

Dimension&wiring diagram

2022 New Design Smart Single Phase Digital Watt Energy Meter
