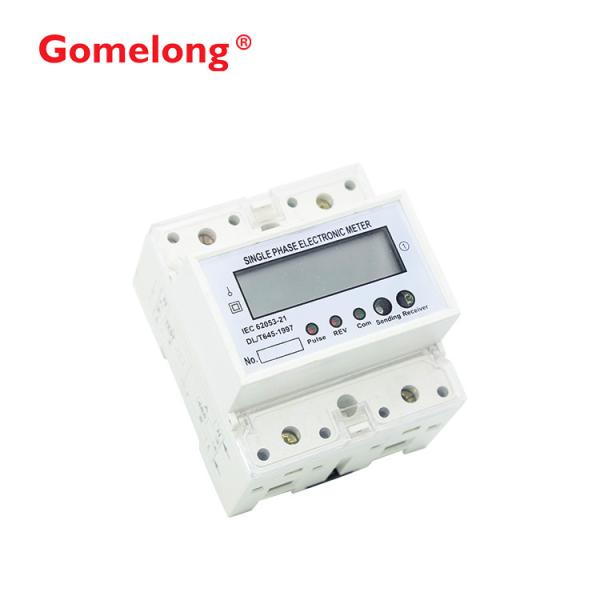

Top 10 seller 1 Phase Din Rail Ethernet Smart Energy Meter With Rs485 interface

Specifications

Place of Origin :

Zhejiang, China

Brand Name :

GOMELONG

Model Number :

DDS5558-4P

Display Type :

Analog and Digital

Phase :

Single Phase

Measuring Energy Range :

0-999999.9kWh

Accuracy Class :

1.0 or 2.0s

Output Voltage :

110V,220V,230V,240V

Operating Temperature :

-40℃-40

Dimensions :

212.5mm*110.5mm*58.5mm

Net Weight :

0.65kg

Mounting :

wall mounted

Max current :

100A

Optional port :

RF/infrared

Type :

DIN Rail Mounting Energy Meter

Display :

7 Digits LCD

Color :

White

Frequency :

50HZ/60HZ

constant :

1600imp/kwh

Name :

1 Phase Din Rail Ethernet Smart Energy Meter With Rs485 interface

Packaging Details :

Paking

Port :

NingBo

Supply Ability :

10000 Carton/Cartons per Month

Price :

$9.00 - $13.00/Pieces

Description

DDS5558 Din Rail Type Electric Bi-directional Energy Meter With rs485

1.Application

Model DDS5558 single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21

2.Features

- Measure active electric energy, do not need calibrate for long-term operation;

- Adopt the special chip of measurement ADE7755;

- Adopt the latest oversea electric energy special integration circuit, greatly improved dynamic working range of Mete; to make the ability of actual overload up to over 10 times.

- Have good mistake linearity in the range of 5%Ib-lmax;

- Adopt high reliability and long life electronic components, so the Meter assume feature of high reliability and long life.

3.Technical Parameters

Specification		DDS5558-4p
Accuracy	Active	Class1.0
Accuracy	Reactive
Voltage	Rated	110/120/220/230/240V
	Range	0.9Un~1.1Un
	Limit	0.8Un~1.2Un
Frequency		50/60Hz
Current	Range	5(20)A ,5(25)A ,5(30)A,5(32)A
Starting Current		0.4%Ib
Constant	Active	2000imp/kWh
Constant	Reactive	\
Display	Type	LCD
Display	Digit	6+1
Power Consumption	Voltage Circuit	≤0.8W,10VA
Power Consumption	Current Circuit	≤4VA
Communication	Interface	Optical/Infrared/RS485 (Optional)
Communication	Protocol	MODBUS,DLT/645,IEC1107
Temperature	Working Temperature	-45℃~+55℃
Temperature	Storage Temperature	-40℃~+70℃
Humidity		≤90%
Protection		IP54

4.Dimension&wiring Diagram

Top 10 seller 1 Phase Din Rail Ethernet Smart Energy Meter With Rs485 interface

5.Optical function

OPTIOANL FUNCTION IN DISPLAY AND READING: kWh, V, A, P, F, PF,

OPTIONAL FUNCTION IN COMMUNICATION: MODBUS RTU

OPTIONAL FUNCTION FOR REMOTE ELECTRIC METER STOP ( POWER ON AND OFF )

6.Packing list for all kinds of din rail meter

No.	Quantity/CTN	Size	Weight
1 modular	120pcs	33x23x30cm	10.5KG
2 modular	80pcs	46x23.5x37.5cm	13.5kg
4 modular	40pcs	50x41x18cm	13.5kg
7 modular	30pcs	40x48x18cm	13.5kg
