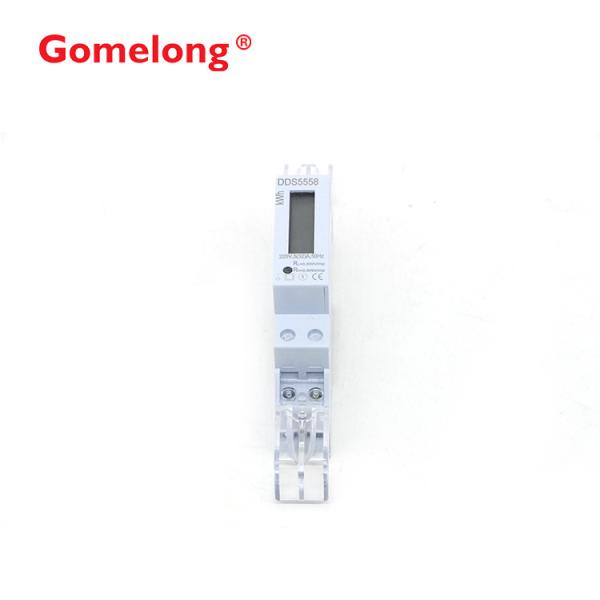

single phase 1P Din rail kwh energy meter With lcd display
single phase 1P Din rail kwh energy meter With lcd display
single phase 1P Din rail kwh energy meter With lcd display
single phase 1P Din rail kwh energy meter With lcd display
single phase 1P Din rail kwh energy meter With lcd display
single phase 1P Din rail kwh energy meter With lcd display
single phase 1P Din rail kwh energy meter With lcd display
single phase 1P Din rail kwh energy meter With lcd display
single phase 1P Din rail kwh energy meter With lcd display
single phase 1P Din rail kwh energy meter With lcd display
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Gomelong
Model Number :
0ML01
Display Type :
Digital Only
Phase :
Single Phase
Measuring Energy Range :
0-999999.99 KWh
Accuracy Class :
Class1
Output Voltage :
110V/220V
Operating Temperature :
-20 ~+55
Dimensions :
18*96.1*70mm
Product name :
Single Phase Electronic KWh Meter
Display :
LCD Display
Rated current :
5(32)A
Frequency :
50/60Hz
Certificate :
CE ISO9001
Features :
Measures KWh
Warranty :
Two Years
OEM :
Allowed
Power consumption :
5VA
Measure :
Active Energy Consumption
Packaging Details :
export stand package.one meter in one box,and ten boxes in one carton
Port :
ningbo/shanghai
Supply Ability :
1200 Set/Sets per Day
MOQ :
10 Sets
Price :
$5.30 - $6.00/Sets
Description
Product Description
Single phase 4P Din rail kwh energy meter
specification DDS5558R DDS5558L
Accuracy active class 1.0
reactive /
voltage rated 110V/120V220V/230V/240V
range 0.9Un-1.1Un
limit 0.8Un-1.2Un
frequency 50/60Hz
current range 5(20)A,5(25)A,5(30)A,5(32)A
starting current 0.4%Ib
constant active 1600imp/KWH
reactive /
display Type register lcd
Digital 6+1
power comsumption voltage circuit <=0.8w,10VA
current circuit <=4VA
communoication Interface Optical/Infrared/RS485(optional)
Protocol MODBUS,DLT/645,IEC1107
temperature working temperature ‘-45℃~+55℃
storage temperature ‘-40℃~+70℃
Humidity <=90%
protection IP54

Product Features

  • Bi -directional tatal active energy measurement
  • 35mm standard DIN rail installation, complying with standard DIN En50022
  • Single pole width (Modules 17.5mm),complying with standard DIN 43880
  • small modular size ,DIN rail mounted,Easy installation
