Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Gomelong
Model Number :
DDS5558
Display Type :
Analog Only
Phase :
Single Phase
Measuring Energy Range :
0-999999.9kwh
Accuracy Class :
Class 1 and Class 2
Output Voltage :
120V,220V,240V
Operating Temperature :
-20~50
Dimensions :
162*104*135
Meter constant :
1600imp/kWh
Materials :
PC
Color :
Black
Display :
register
Frequency :
50HZ/60HZ
Rated current :
5(80)A
Type :
AC Active Meter
Warranty :
Two Years
Packaging Details :
foam+carton,20pcs one carton
Port :
Ningbo
Supply Ability :
15000 Piece/Pieces per Month
Price :
$6.00 - $9.00/Pieces
Description
MASS_APP4_1159_BEGIN

Wholesale Price DDS5558 6 digit digital counter meter single phase analog energy meter

MASS_APP4_1159_END

Wholesale Price DDS5558 6 digit digital counter meter single phase analog energy meterProduct Description

1.Brife introduction

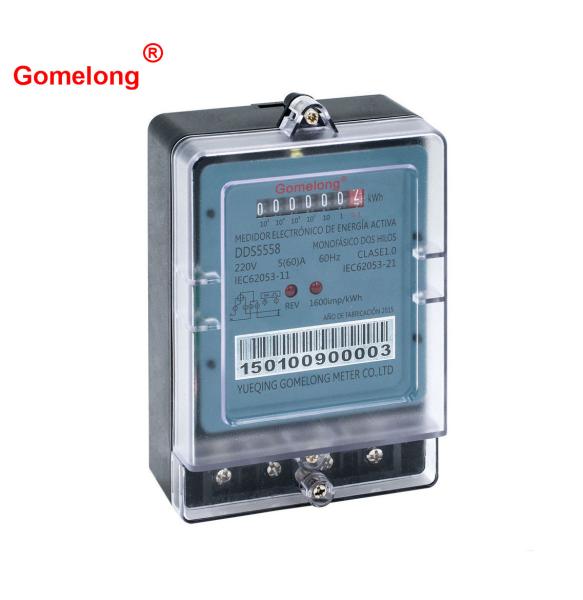

DDS5558 single-phase static watt-hour meter is designed for measuring active energy in single-phase alternating current power grids by connecting up resident power supply system.,It complies with the standard IEC 61036 and has high measurement accuracy. The meter is ISO9001 certified and the design can be tailored to different customer requirements.
The meter has high reliability and long service life by adopting large-scale integration (LSI) and surface mounting technology(SMT) as well as international brand and long-life key components.
The meter is provided with pulse output, which makes remote control and locale consumption monitor possible. The is a safe and optimized solution designed for the needs of deregulated energy market and automatic meter reading.


2.Basic functions
Energy display by register or LCD
Bi-directional active energy measurement
Operation indicated by pulse LED
So output with optical isolated output transistor corresponding to DIN 43864
Optional functions
Reverse indicator: An LED indicator will be on when the current is reversed
Anti-tamper in condition that load is connected between the line and the earth
Entirely closed register
HF magnet immune register
Reversal preventing register
Transformer connection

3.Technical Data

Specification DDS5558L DDS5558R
Accuracy Active Class1.0 Class1.0
Reactive
Voltage Rated 110/120/220/230/240V 110/120/220/230/240V
Range 0.9Un~1.1Un 0.9Un~1.1Un
Limit 0.8Un~1.2Un 0.8Un~1.2Un
Frequency 50/60Hz 50/60Hz
Current Range 1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A 1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A
Starting Current 0.4%Ib 0.4%Ib
Constant Active 2000imp/kWh 2000imp/kWh
Reactive \ \
Display Type LCD Register
Digit 6+1/6+2 5+1
Power Consumption Voltage Circuit ≤0.8W,10VA ≤0.8W,10VA
Current Circuit ≤4VA ≤4VA
Communication Interface Optical/Infrared/RS485 (Optional) Optical/Infrared/RS485 (Optional)
Protocol MODBUS,DLT/645,IEC1107 MODBUS,DLT/645,IEC1107
Temperature Working Temperature -45℃~+55℃ -45℃~+55℃
Storage Temperature -40℃~+70℃ -40℃~+70℃
Humidity ≤90% ≤90%
Protection IP54 IP54

Dimension&wiring Diagram
