SGS Approved DSS5558 2*102/208V 60HZ Medidor electronic Bifasico Trifilar digital energy meter

Specifications

Place of Origin :

Zhejiang, China

Brand Name :

GOMELONG

Model Number :

DSS5558

Display Type :

Analog and Digital

Phase :

two phase

Measuring Energy Range :

5(100)A

Accuracy Class :

1.0

Output Voltage :

2*120/208V

Operating Temperature :

25 ~+55

Dimensions :

170*130*62mm

Frequency :

60Hz

Standard :

IEC62053-11/IEC62053-21

code bar :

laser printing

Product name :

Medidor electronic Bifasico Trifilar

Packaging Details :

export stand package.one meter in one box,and ten boxes in one carton

Port :

ningbo/shanghai

Supply Ability :

1200 Set/Sets per Day

MOQ :

10 Sets

Price :

$10.00 - $12.00/Sets

Description

MASS_APP4_1159_BEGIN

SGS Approved DSS5558 2*102/208V 60HZ Medidor electronic Bifasico Trifilar digital energy meter

MASS_APP4_1159_END

Factory Wholesale Two Phase 3 Wire Electricity Digital Amp Volt Watt Meter

Product Overviews

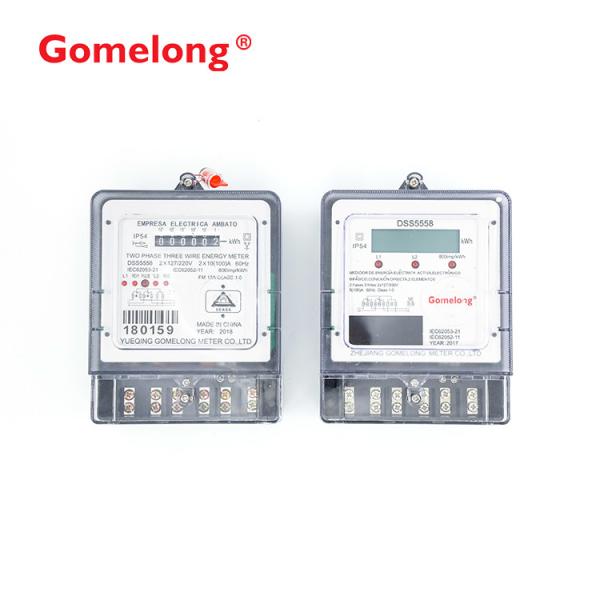

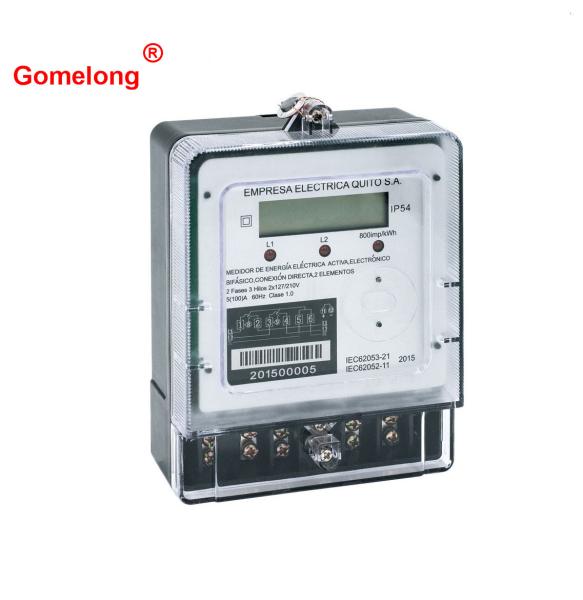

SGS Approved DSS5558 2*102/208V 60HZ Medidor electronic Bifasico Trifilar digital energy meter

Application

DDS5558 LTwo-Phase watt-hour meter is utilized digital sampling technology and advanced SMT technology The meter has unbeatable accuracy and high reliability. It is designed and manufactured according to actual situations of resident usage of electricity. The two-phase voltage and current through the sampling circuit switched into signals and the signals into a two-phase energy

measurement specific integrated chip. The specific IC put out pulse signals which are proportional to the measured two-phase power to drive the register, to achieve measuring two-phase energy. At the same time, the energy meter output power test pulse with isolated optical coupler.

Features

1. Bidirectional measurement

2. Indication: Pulse, reverse current, phase failure

Technical Parameters

Specification		DSS5558L	DSS5558R
Accuracy	Active	Class1.0	Class1.0
Accuracy	Reactive	/	/
Voltage	Rated	2x57.7/100V,2x220/380V 2x230/400V,2x240/415V	2x57.7/100V,2x220/380V 2x230/400V,2x240/415V
	Range	0.9Un~1.1Un	0.9Un~1.1Un
	Limit	0.8Un~1.2Un	0.8Un~1.2Un
Frequency		50/60Hz	50/60Hz
Current	Range	1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A	1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A
Starting Current		0.4%Ib	0.4%Ib
Constant	Active	1600imp/kWh	1600imp/kWh
Constant	Reactive	\	\
Display	Type	LCD	Register
Display	Digit	6+0	6+0
Power Consumption	Voltage Circuit	≤0.8W,10VA	≤0.8W,10VA
Power Consumption	Current Circuit	≤4VA	≤4VA
Communication	Interface	Optical/Infrared/RS485 (Optional)	Optical/Infrared/RS485 (Optional)
Communication	Protocol	MODBUS,DLT/645,IEC1107	MODBUS,DLT/645,IEC1107
Temperature	Working Temperature	-45℃~+55℃	-45℃~+55℃
Temperature	Storage Temperature	-40℃~+70℃	-40℃~+70℃
Humidity		≤90%	≤90%
Protection		IP54	IP54

Dimension&Wiring Diagram

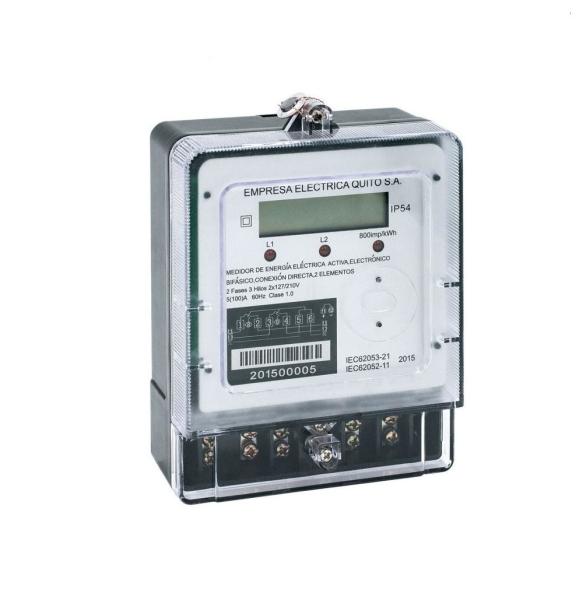

SGS Approved DSS5558 2*102/208V 60HZ Medidor electronic Bifasico Trifilar digital energy meter

Name: SGS Approved DSS5558 2102208V 60HZ Medidor electronic Bifasico Trifilar digital energy meter
Brand: GOMELONG
Price: 10.00 USD

Ask Latest Price

Product Detail

Place of Origin :

Zhejiang, China

Brand Name :

GOMELONG

Model Number :

DSS5558

Display Type :

Analog and Digital

Phase :

two phase

Measuring Energy Range :

5(100)A
