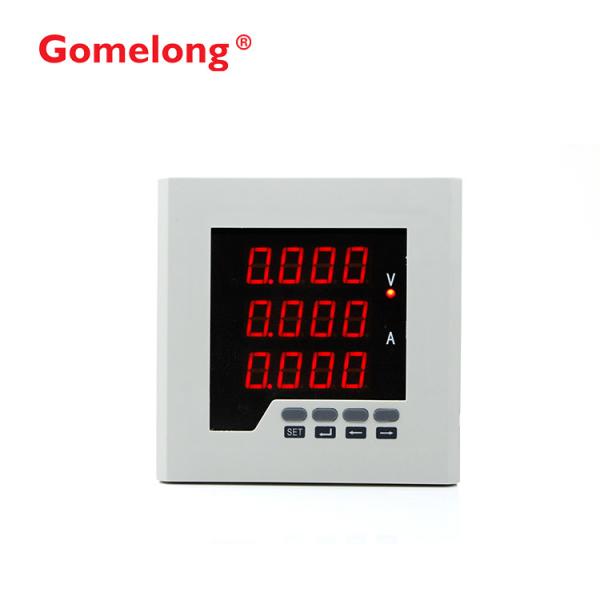

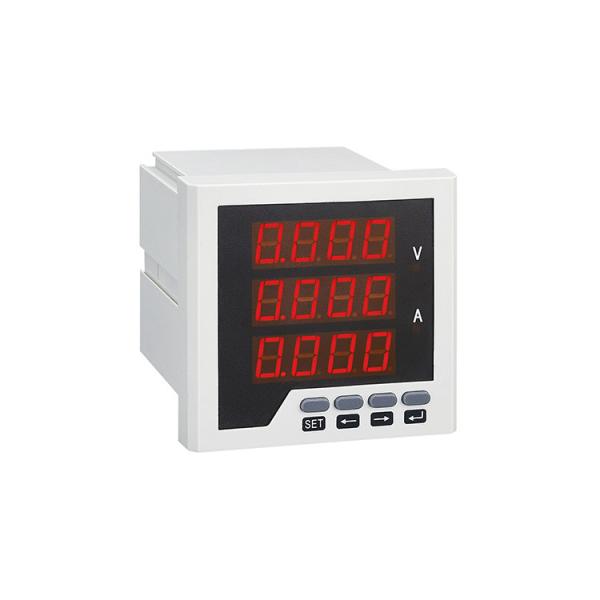

Hot selling three phase digital current and voltage meter
Hot selling three phase digital current and voltage meter
Hot selling three phase digital current and voltage meter
Hot selling three phase digital current and voltage meter
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Gomelong
Display Type :
Digital Only
Phase :
Three Phase
Measuring Energy Range :
0-999kwh
Accuracy Class :
0.5
Output Voltage :
0-400V
Operating Temperature :
-30-50 degree
Dimensions :
100mmx96mmx50mm
Type :
three Phase Power Meter
Product name :
single phase digital voltage meter
Communication :
RS485 Modbus RTU
Display :
LED Display
Frequency :
50HZ/60HZ
Certificate :
CE ISO9001
Rated current :
AC 1A/ 5A
Rated voltage :
AC 110V/380V
Standard :
IEC62053-21
Function :
Measurement
Packaging Details :
Carton box + foam
MOQ :
100 Pieces
Price :
$15.00/Pieces 100-999 Pieces
Description
Product Description

Items Technical parameters
input signal Wiring network Three-phase three-wire; three-phase four-wire
Voltage Range AC 100V, AC400V
overload Constant overload: 1.2 times; instant overload: 10times/10s
Power consumption < 1VA/ (each phase), impedance >500KΩ
Accuracy Class RMS measure , Class 0.5.
Current Range AC1A,,AC5A
overload Constant overload: 1.2tiimes; instant overload: 10times/10s
Power consumption < 0.4VA/ (each phase), impedance <2KΩ
Accuracy Class RMS measure , Class 0.5.
Display Programmable, switch, cycle (led) display
Auxiliary power Power supply AC/DC110V/220V/380V/85-264VAC
Power consumption <5VA
Display LED display, LCD display (selectable)
output signal Communication RS-485 MODBUS-RTU Agreement
Electric energy pulse /
On-off input Two-way on-off input;; opto-couplers isolation and passive dry contact (selectable)
On-off output Two-way on-off output;; optocouplers relay (selectable)
Analogy output Four-way analogy output 0-20mA/4-20mA (selectable)
Environment Working environment -25-55 ° C
Storage environment -20-70 ° C
Humidity ≤ 85% RH, no condensation, no corrosive gas sites
Elevation ≤3000m
Safety Withstand voltage Input/power>2kV,Input/output>2kV,power/output>1kV.
Insulation resistance The auxiliary power supply, input and output on the instrument's cover >50MΩ
