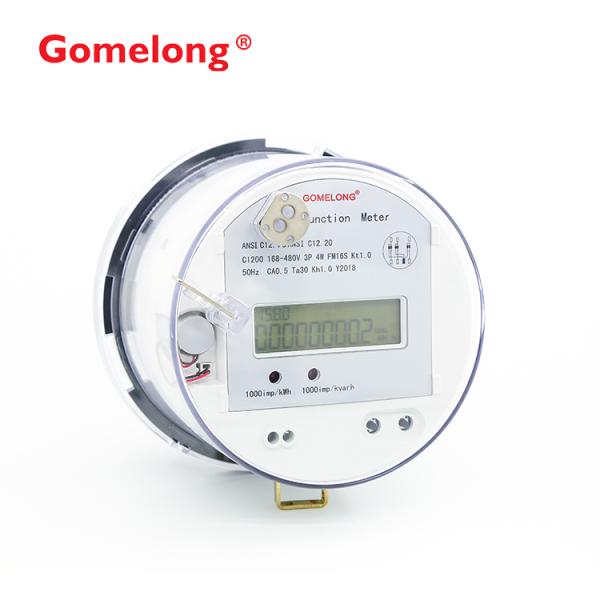

High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO
High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO
High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO
High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO
High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO
High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO
High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO
High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO
High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO
High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO
High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO
High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
GOMELONG
Model Number :
DDS5558 OML34
Display Type :
LCD
Phase :
Single Phase
Measuring Energy Range :
0000---999999.9KWH
Accuracy Class :
CLASS1
Output Voltage :
110V,220V,230V,240V
Operating Temperature :
-20℃-55℃
Dimensions :
212.5mm*110.5mm*58.5mm
cover :
transparent PC
battery :
yes
Display :
6+1
Product name :
DDS5558 form 1S 120V 100A meterbox round meter socket
no.wire :
3
communication :
no have
Packaging Details :
inner box and carton
Port :
ningbo/shanghai/other
Supply Ability :
10000 Piece/Pieces per Day
Price :
$56.00 - $58.00/Pieces
Description
MASS_APP4_1159_BEGIN

High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO

MASS_APP4_1159_END

12S 12S 16S round meter socket ansi socket meter

Product Description

High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO

High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO

Model DTS5558 three phase ANSI socket energy meter ,outdoor application,intended for residential customers,It could proceed basic set and test for meter by infrared communication,and through RS485 communication ,It could proceed remote control for meter ,including read all meter data and set meter.

Features

- Kwh/MD/V/A display, Back-up battery

- Comply with ANSI C12.1/ ANSI C12.10/ANSI C12.18/ ANSI C12.19/ ANSI C12.20

- Maximum demand measurement and resetting

- Bidirectional measurement, Reverse energy calculated into forward

- Current flow direction indication

- LCD rotor simulation disk

Technical parameters

Specification

DDS5558/12S

DDS5558/16S

Accuracy

Active

CA0.5

Class0.5/Class1.0

Reactive

CA1.0

Class1.0

Voltage

Rated

120/208V

120/240V

Range

0.9Un~1.1Un

0.9Un~1.1Un

Limit

0.8Un~1.2Un

0.8Un~1.2Un

Frequency

50/60Hz

50/60Hz

Current

Range

CL100,CL200

CL100,CL200

Starting Current

0.4%Ib

0.4%Ib

Constant

Active

Kh0.5/Kh1.0/Kh/1.6/Kh2.0

Kh0.5/Kh1.0/Kh/1.6/Kh2.0

Form

12S

16S

Display

Type

LCD

LCD

Digit

5+0/5+1/6+1

5+0/5+1/6+1

Power Consumption

Voltage Circuit

≤1.5W

≤1.5W

Current Circuit

≤2VA

≤2VA

Communication

Interface

Optical/Infrared/RS485 (Optional)

Optical/Infrared/RS485 (Optional)

Protocol

MODBUS,DLT/645,IEC1107

MODBUS,DLT/645,IEC1107

Temperature

Working Temperature

-25℃~+55℃

-25℃~+55℃

Storage Temperature

-40℃~+70℃

-40℃~+70℃

Humidity

≤95%

≤95%

Dimension&Wiring Diagram

High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO

Company Information

High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO

workshop

High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO

Certifications

High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO

Exhibitions

High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO

Advantages

High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO

FAQ

High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO

contact us

High Quality 12S 12S 16S Round Meter Socket Ansi Socket Three Phase Energy Meter / MEDIDOR KWH RECEPTACULO
