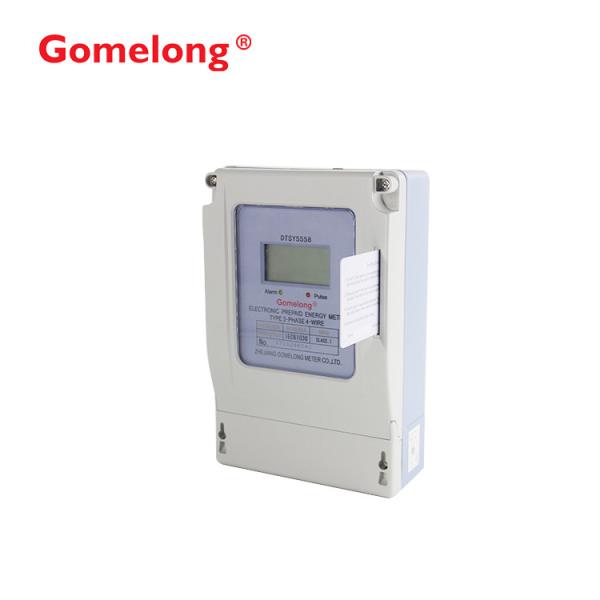

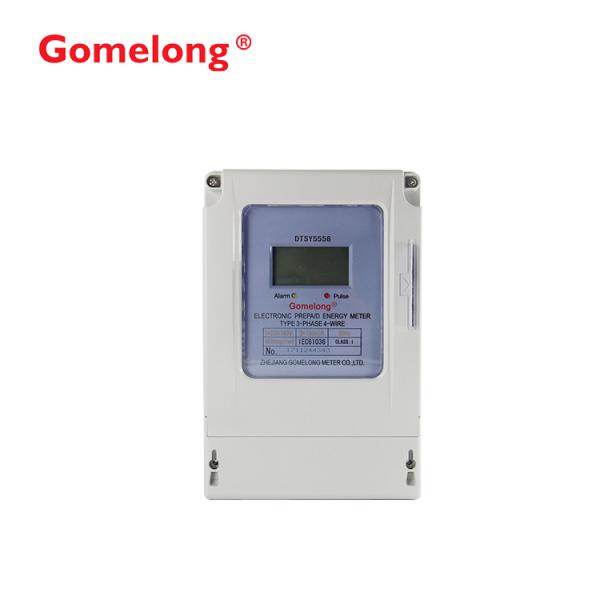

DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter
DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter
DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter
DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter
DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter
DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
GOMELONG
Model Number :
DTSY558
Display Type :
Analog and Digital
Phase :
Three Phase
Measuring Energy Range :
0-999999.99 KWh
Accuracy Class :
1.0 or 2.0s
Output Voltage :
110V,220V,230V,240V
Operating Temperature :
-20℃-55
Dimensions :
241.5mm*166mm*40mm
Type :
Prepayment Electric Meter
Name :
3 phase 4 wire electronic meter ic card electric prepaid meter
Display :
8 Digits LCD
Rated current :
3*30(100)A
Certificate :
ISO9001
Frequency :
50HZ/60HZ
Standard :
IEC62053-21
Color :
White + Gray
Packaging Details :
Export carton with inner foam box
Port :
Ningbo
Supply Ability :
100000 Piece/Pieces per Month
Price :
$45.00 - $50.00/Pieces
Description
MASS_APP4_1159_BEGIN

DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter

MASS_APP4_1159_END

DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter

Product Overviews

DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meterDTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter

Product Brief Introduction

The DDSY5558 type price current meter is developed on the bass of excellent single-phase electronic watt-hour meter .It is a next type of IC card pre-paid meter, which has such function as power metering, load control and customer information management. It is an ideal product when reforming electric-use system, achieving electrical energy to commercialize, setting charge and adjusting load one aiming to the single-phase electronic pre-paid watt-hour meter in the standard of GB/T 17215321-2008 Class I and 2 Static A C Active Watt-hour Meter and GB/T18460-2001.

------------------------------------------------------------------------------------------------------------------------------

Function and Feature

  • Active single-phase electric power metering,no subject to adjust in terms of long working;
  • Each user(meter)responds to a card,well protect from forgery;
  • Once the remaining electric power quality approaching the alarming power quality,the digital;
  • tube should be lighted to remind user of timely purchasing;
  • Once the electric consumption available is out,it should be auto cut-off;
  • Protect form power theft,and recording the information auto;
  • Auto cut-off for overload;
  • Date-copying function make the electricity department easier t manage;
  • The meter has the feature of long-using-life,high-reliable;
  • The IC card power selling control system has the function as power selling and using control;
  • Expansible RS485;

------------------------------------------------------------------------------------------------------------------------------

Main Technical Data

Rated Current(A)

3X [2 .5(10),5(20),5(30), 10(40), 10(60), 15(60)]

Rated Voltage(v}

220 or240

Rated Frequency(Hz)

50 0r 6O

Accuracy Class

1 Class l or Class2

Compay Show

Company Information

DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter

workshop

DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter

Certifications

DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter

Exhibitions

DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter

Advantages

DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter

FAQ

DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter

DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter

contact us

DTSY5558 3 phase 4 wire electronic meter ic card electric prepaid meter
