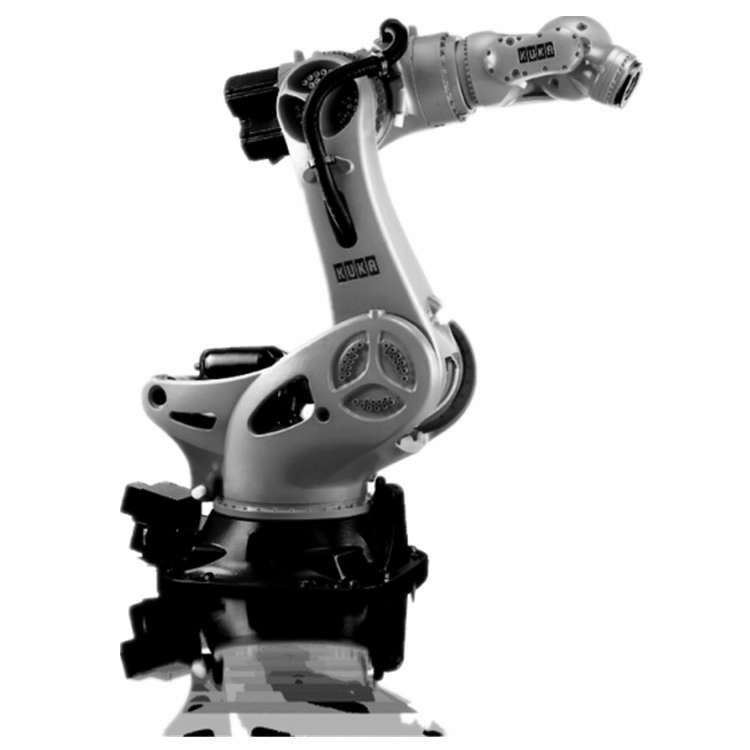

6 Dof Kuka Robot Arm 500kg Payload 2830mm Max Reach IP65 Protection Rating
6 Dof Kuka Robot Arm 500kg Payload 2830mm Max Reach IP65 Protection Rating
6 Dof Kuka Robot Arm 500kg Payload 2830mm Max Reach IP65 Protection Rating
6 Dof Kuka Robot Arm 500kg Payload 2830mm Max Reach IP65 Protection Rating
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
KUKA
Supply Ability :
100 Set/Sets per Month
Packaging Details :
One 6 dof robot arm KUKA payload 500 kg reach 2830 mm arm robot milling robot packing with fumigation wooden frame, WG: 2430 KG Controller and other parts packing with brown box, WG: 120 KG Total WG: 2550 KG(>VG)
MOQ :
1 Set/Sets
Price :
Negotiation
Condition :
New
Footprint :
1050 mm x 1050 mm
Number of axes :
6
Maximum reach :
2826 mm
Max payload :
500 kg
Pose repeatability(ISO 9283) :
±0.08mm
Mount position :
Floor
Weight :
approx. 2385 kg
Protection rating :
IP65
Controller :
KR C4 compact
Port :
Shanghai
Description

6 dof robot arm KUKA payload 500 kg reach 2830 mm arm robot milling robot
Main Specification

Self weight:2385Kg
Payload: 500Kg
Degree of freedom:6
Working radius:2830mm
Maximum speed:2.8 m/S
Pose repeatability:± 0.08mm

More products:

KUKA robot

1: KR 6 R1820 6KG 6axis welding robot

2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot

3: KR 10 R1420 6 aixs 10kg welding robot

4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot

ABB robot

1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot

2: IRB 1520ID 6 axis 5kg payload for welding

3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing

Collaborative robot

1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad

2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload

Product Description

Specification
Maximum reach2826 mm
Maximum payload500 kg
Pose repeatability (ISO 9283)± 0.08 mm
Number of axes6
Mounting positionFloor
Footprint1050 mm x 1050 mm
Weightapprox. 2385 kg
Protection ratingIP65
Controller KR C4 compact
Teach pendant KUKA smartPAD
Motion range
A1±185°
A2(-130° / 20°)
A3(100°- 144°)
A4±350°
A5±125°
A6±350°
Detailed Images

6 Dof Kuka Robot Arm 500kg Payload 2830mm Max Reach IP65 Protection Rating6 Dof Kuka Robot Arm 500kg Payload 2830mm Max Reach IP65 Protection Rating
