FC-ZMW-4 egg tray machine 1000pcs/hr
FC-ZMW-4 egg tray machine 1000pcs/hr
FC-ZMW-4 egg tray machine 1000pcs/hr
FC-ZMW-4 egg tray machine 1000pcs/hr
FC-ZMW-4 egg tray machine 1000pcs/hr
FC-ZMW-4 egg tray machine 1000pcs/hr
FC-ZMW-4 egg tray machine 1000pcs/hr
FC-ZMW-4 egg tray machine 1000pcs/hr
FC-ZMW-4 egg tray machine 1000pcs/hr
FC-ZMW-4 egg tray machine 1000pcs/hr
Specifications
Place of Origin :
Longkou ,Shandong Province, China
Brand Name :
FC
Certification :
CE/ISO9001
Model Number :
FC-ZMW-2, FC-ZMW-3,FC-ZMW4,FC-ZMG3-24,FC-ZMG4-32,FC-ZMG6-48
Output(pcs/hr): :
500-600 700-900 1000-1200 1800-2500 2800-3500 3800-5000
MOQ :
1set or mail to lewis@goodeggtraymachine-com.ecer.com
Price :
4000-237000USD
Packaging Details :
Export Standard Package
Delivery Time :
Within 40-60 days
Payment Terms :
T/T
Supply Ability :
100set/year
Description

Raw material:Waste paper

Output(pcs/hr):500-600,700-900,1000-1200,1800-2500,2800-3500,3800-5000
Model: FC-ZMW-2/3/4 FC-ZMG3-24/4-32/6-48
Certification:CE, ISO9001
Skype:lewis15863824208
FC-ZMW-4 egg tray machine 1000pcs/hr:
Machine for make paper egg tray,egg tray making machine,egg tray machine,paper tray machine.pulp moulding machine
The quality of our egg tray making machines is superior to that of other suppliers,and our prices are lower than theirs.
Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production. Our forming machines adopt advanced PLC programmable controller; selecting of high quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.
various types and output of egg tray making machines can be supplied by our company ,
such as 800-1000pcs per hour ,2000pcs per hour,3000pcs per hour ,4000pcs per hour ,and so on .
The quality of our egg tray making machines is superior to that of other suppliers,and our prices are lower than theirs.
if you are interested in our machines,pls contact me ,i will send the details of machine to you

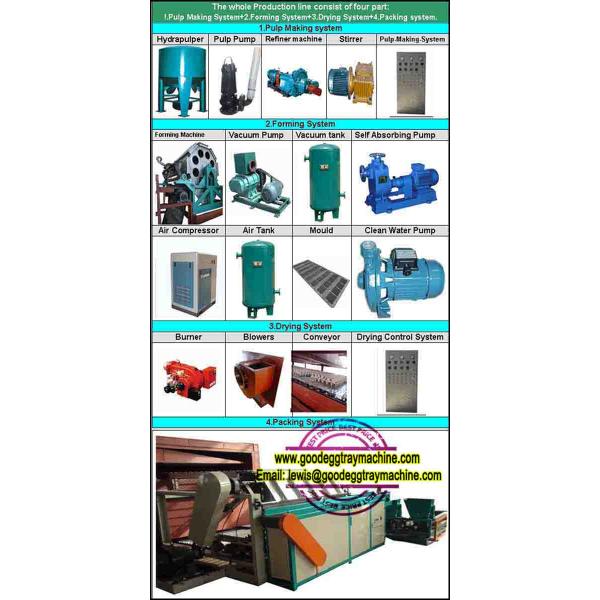

Reciprocating type egg tray machine reference picture as the following:
1. Pulping system:
Pulper, 1.0M3,15kw;
vibration screen, 0.9M2,3kw;
mixer; pulp pump;water pump,control cabinet for pulping system,etc
2. Forming system:
Consist of 1pc of forming platen and 1 pc of transfering platen.
Platen size:1100x470mm,4sets of 30-cell egg tray molds can be mounted on forming platen.
Forming efficiency:5-6cycles/min;
Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.
3. Drying system:
Outline dimension:20080x2650x3600mm;
Single layer conveying chain;heated by section;multi burners;
Six layers drying line, energy saving and saving place
The temperature of each section can be adjusted independently;burners with French or Italian brand;
The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.
4. Stacking system:
The finished products will be counted and stacked automatically after drying.
You can know more about Pulp Moulding Egg Tray Machine from the video link:

FC-ZMW-4 egg tray machine 1000pcs/hrFC-ZMW-4 egg tray machine 1000pcs/hrFC-ZMW-4 egg tray machine 1000pcs/hrFC-ZMW-4 egg tray machine 1000pcs/hrFC-ZMW-4 egg tray machine 1000pcs/hrFC-ZMW-4 egg tray machine 1000pcs/hrFC-ZMW-4 egg tray machine 1000pcs/hrFC-ZMW-4 egg tray machine 1000pcs/hrFC-ZMW-4 egg tray machine 1000pcs/hr

Main Technical Parameters of Pulp Moulding Egg Tray Machine:

Product Name:

Reciprocating Type egg tray machine

Model:

FC-ZMW-2

FC-ZMW-3

FC-ZMW-4

Output:

400-600 pcs/hr

600-800 pcs/hr

800-1000 pcs/hr

Molding Mould/pcs:

2

3

4

Transfer Mould/pcs:

2

3

Main Technical Parameters of Pulp Moulding Egg Tray Machine:

Product name:

Roller type Pulp Moulding Machine

Model:

FC-ZMG3-24

FC-ZMG4-32

FC-ZMG6-48

Output:

1500-2000 pcs/h

2500-3000 pcs/h

3500-4000 pcs/h

Molding Mould/pcs:

24

32

48

Transfer Mould/pcs:

3

4

6

Contact:

Mr Lewis

Email:

lewis@goodeggtraymachine-com.ecer.com

Skype:

lewis15863824208

Gtalk:

lewis15863824208@gmail.com

Yahoo Messenger:

lewis15863824208@yahoo.com

Mobile:

+86-15863824208

Website:

http://www.goodeggtraymachine-com.ecer.com

We are the professional manufacturer of Pulp moulding Machine

and EPE Foam Extruder Line etc in Longkou ,Shandong Province, China.
