Custom tractor mounted post hole digger machine for telegraph pole installation
Custom tractor mounted post hole digger machine for telegraph pole installation
Custom tractor mounted post hole digger machine for telegraph pole installation
Custom tractor mounted post hole digger machine for telegraph pole installation
Custom tractor mounted post hole digger machine for telegraph pole installation
Custom tractor mounted post hole digger machine for telegraph pole installation
Custom tractor mounted post hole digger machine for telegraph pole installation
Custom tractor mounted post hole digger machine for telegraph pole installation
Custom tractor mounted post hole digger machine for telegraph pole installation
Custom tractor mounted post hole digger machine for telegraph pole installation
Custom tractor mounted post hole digger machine for telegraph pole installation
Custom tractor mounted post hole digger machine for telegraph pole installation
Custom tractor mounted post hole digger machine for telegraph pole installation
Custom tractor mounted post hole digger machine for telegraph pole installation
Specifications
Brand Name :
BAISHUN
Model Number :
BS-1004
Certification :
ISO9001:2008; CE.
Place of Origin :
China
MOQ :
1 set
Price :
USD22000-45000 / SET
Supply Ability :
600 sets/month
Packaging Details :
Export standard package
Color :
Customer's Request
Drilling diameter :
2M
Drilling depth :
100-6000MM
Power :
100HP
OEM :
yes
Bit Material :
Alloy Steel
Weight :
7000KGS
Warranty :
12 Months
Description

Production Description

Custom tractor mounted post hole digger machine for telegraph pole installation is widely used to plant big plants and to erect electricity and solar poles, the electric power,communication, municipal, railway, highway, construction, petroleum, trees, such as the ideal foundation construction equipment


Technical Parameters

Tractor:Different YTO tractors(famous brand)

Drilling depth: 0-6m
Drilling diameter: 300mm-2000mm

Lifting capability of crane: 3~8tons

Length of pole: 3~18m
Standard drill pipe: 300mm-500mm (can customize 500~2000mm drill pipes)
Crane Lifting way: Hydraulic
Standard drilling time: 50s (diameter of 300mm-500mm)
Application: loess, clay, pebble sand, weathered granite, tundra etc.
Not suitable for: rocks, whole sand bed ,household garbage and so on.
Operator needed:1 person

Technical Features

1. Have four hydraulic stabilizer legs, with cross-country 2 or 4 wheel-drive, with wide tires

2. 360° rotation gear motor, hydraulic hoisting and drilling system, combining the auger drill rig with crane, one equipment can realize the drilling and pole uprighting work, more efficient and cost-effective.

3. YTO tractor as power, strong enough , strong cross-country power. Fully hydraulic driving. Full-automatic put and upright the pole.


Some Photos for Your Reference

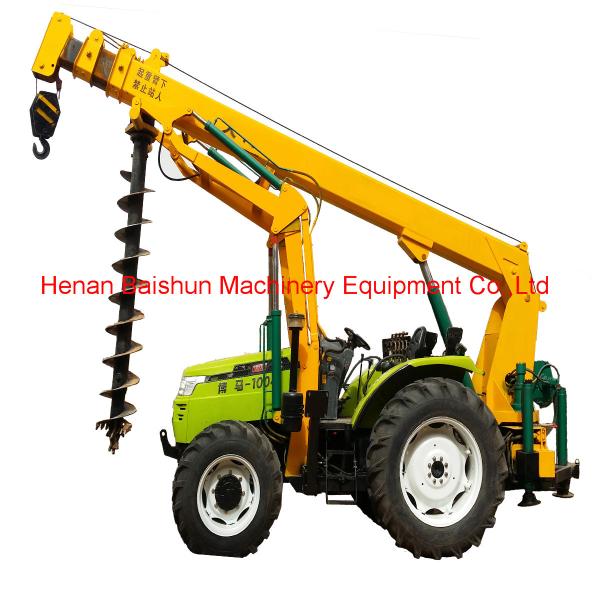

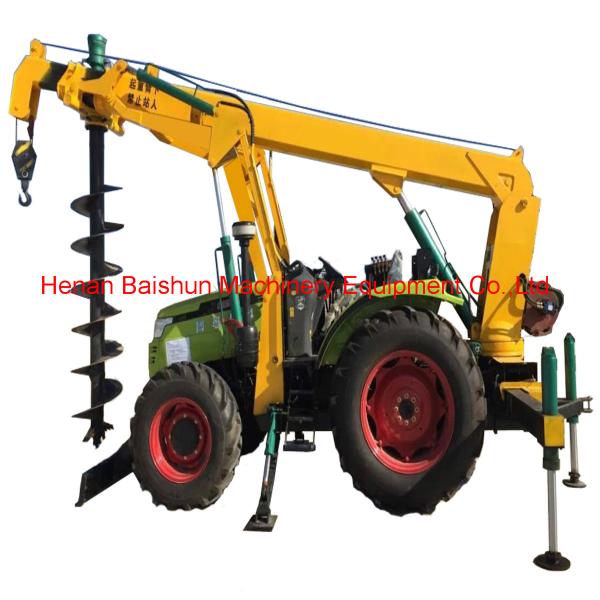

Custom tractor mounted post hole digger machine for telegraph pole installation

Custom tractor mounted post hole digger machine for telegraph pole installationCustom tractor mounted post hole digger machine for telegraph pole installationCustom tractor mounted post hole digger machine for telegraph pole installationCustom tractor mounted post hole digger machine for telegraph pole installationCustom tractor mounted post hole digger machine for telegraph pole installation

Delivery Features

Custom tractor mounted post hole digger machine for telegraph pole installationCustom tractor mounted post hole digger machine for telegraph pole installationCustom tractor mounted post hole digger machine for telegraph pole installationCustom tractor mounted post hole digger machine for telegraph pole installation

Contact US

More detailed information is available, please feel free to contact us, we'll offer the best service for you.

Contact: Kim.Yang

Mobile: +86-18003851898

E-mail: kim@poleerection.com

Phone: +86-371-55661885

Whatsapp/Wechat/Skype: +86 18003851898

Address: Zhengzhou, Henan, China
