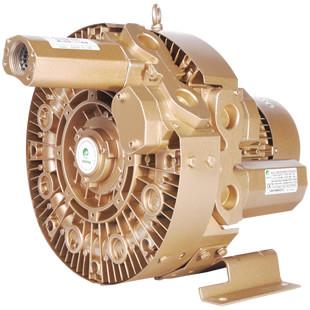

Double stage 2.2kw High Vacuum pump for material lifting
Double stage 2.2kw High Vacuum pump for material lifting
Double stage 2.2kw High Vacuum pump for material lifting
Double stage 2.2kw High Vacuum pump for material lifting
Specifications
Brand Name :
Goorui
Model Number :
GHBG 003 34 2R5 2.2kw
Certification :
CE/TUV/ISO9001-2001/SGS/ROHS
Place of Origin :
China
MOQ :
1 unit
Price :
Discuss With Sales
Payment Terms :
T/T, L/C
Supply Ability :
200 SETS/DAY
Delivery Time :
7-10days
Packaging Details :
Carton
Power :
2.55 KW
AirFlow :
145 m3/h
Type :
regenerative vacuum blower
Pressure :
450 mbar
Frequency :
60 HZ
Voltage :
220-275△380-480Y V
Current :
11.2△/6.5Y A
Vacuum :
-500 mbar
Description

Product name

2.2kw high vacuum blower for central vacuum systems GHBG 003 34 2R5

Products advantages

  • Oil free and low noise
  • More than 20000hours operation lifetime
  • No routine maintenance with stable performance
  • Easy installation and no vibration
  • SKF , NSK , ORS high quality bearing adapted
  • Insulation class: F/H,
  • Protection class: IP54/IP55
  • Wide voltage range and frequency range 28-60hz
  • Either used for suction ( vacuum ) or discharge ( pressure )
  • GOORUI side channel blower has been widely used to replace some TOP brand blowers such as : SIEMENS ( Gardner Denver , Nash ELMO, Rietchle ) , Bush, FPZ, Becker , ELEKTROR ,etc.

Technical data

Model No. GHBG 003 34 2R5
Phase 3
Stage Double
Frequency 50HZ 60HZ
Output 2.2kw 2.55kw
Voltage 200-240△345-415Y
220-275△380-480Y
Current 11.4△/6.6Y 11.2△/6.5Y
Max Airflow 120m3/h 145m3/h
Max Vacuum 470mbar 500mbar
Max Pressure 460mbar 450mbar
Gloss Weight 40kgs
Speed of rotation 2850/3450r/min
Sound 64/70db
Level of protection IP54
Insulation class F

Other Business Terms

  • Unit price: can be discussed with sales
  • MOQ: 1 Set
  • Delivery time: 3-10days
  • Payment terms: by TT, 100% before delivery or 30% deposit, 70% balance against copy of BL.
  • Delivery terms: EX-WORK, CIF, FOB, DDP, DDU is available;

Warranty

Within 3 months, send a free brand-new blower while ocean freight/express courier is on customer's account.

Within 18months sending instruction via email and give a diagnosis to the problem. Then send free accessories while express rate is on customer’s account.
