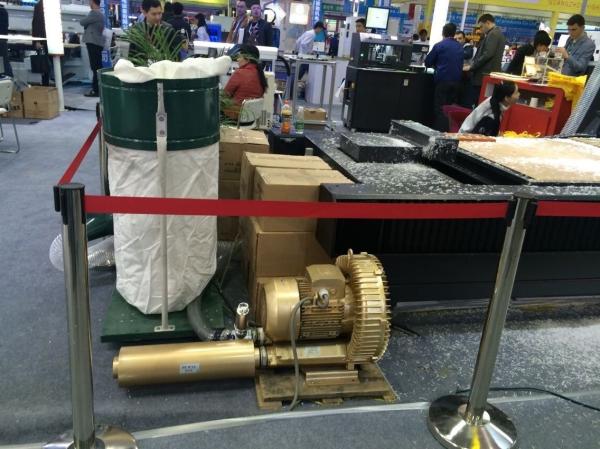

IE3 25HP 18.5kw Ring Blower Vacuum Pump For CNC Router Machine
IE3 25HP 18.5kw Ring Blower Vacuum Pump For CNC Router Machine
Specifications
Brand Name :
GOORUI
Model Number :
GHBH 025 36 1R9 IE3
Certification :
CE/TUV/ISO9001-2001/SGS/ROHS
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
3000 sets per month
Delivery Time :
7 working days.
Packaging Details :
packed inside wooden case
Material :
ADC 12 Aliminium Alloy
Frequency :
50/60Hz
Phase :
3 phase
Power :
25HP
IP :
55
Warranty :
2 years
Pressure :
460mbar
Flowrate :
1050m3/h
Vacuum :
-360mabr
Description

Golden 18.5kw Ring Blower Pump With Tmermal Protector For CNC Router Machine

Model GHBH 025 36 1r9
Phase Three
Stage Single
Frequency 50HZ 60HZ
Output 18.5kw 21.3kw
Voltage 345-415△/600-690 380-480△/660-720
Current 37.0/21.0 39.0/22.5
Max Airflow 1050m3/h 1250m3/h
Max Vacuum -360mbar -380mbar
Max Pressure 460mbar 420mbar
Gross Weight 126kgs
Speed of rotation 2850/3450r/min
Sound 74/79db
Level of protection IP55
Insulation class F

GOORUI Side Channel Blower applications:
  • Agriculture(Fish pond and aeration tanks)
  • Beverage(bottle drying)
  • Bio fuels/bio-gas system
  • Food and vegetable processing
  • Medical and Health service(Dental cart and dental vacuum)
  • Package (Air knives blown-off / Labeling/Drying)
  • Printing
  • Paper and pulp/ paper converting
  • Textile industry
  • Pneumatic conveying/material handling
  • Water treatment/sewage treatment
  • Woodworking(CNC Routing/bulk handling

IE3 25HP 18.5kw Ring Blower Vacuum Pump For CNC Router Machine

Delivery time :

  • In stock blower: 2-3 days after payment
  • Out of stock blower:7-15 days after order confirmed.
  • Special customized blower based on the specific request.
