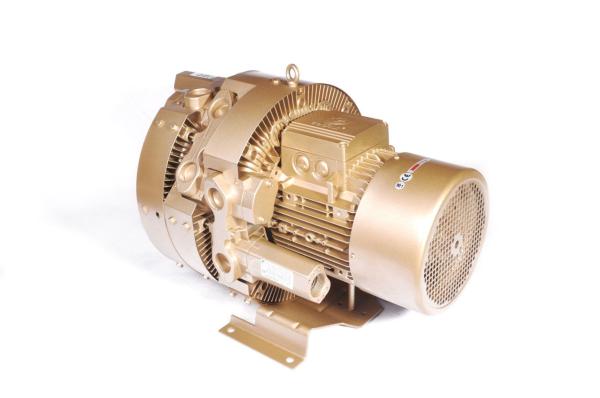

7.5kw Extra High Vacuum Air Pump For Milking Machine
7.5kw Extra High Vacuum Air Pump For Milking Machine
7.5kw Extra High Vacuum Air Pump For Milking Machine
7.5kw Extra High Vacuum Air Pump For Milking Machine
Specifications
Brand Name :
Goorui
Model Number :
GHBG 010 36 3R6
Certification :
CE/TUV/ISO9001-2001/SGS/ROHS
Place of Origin :
China
MOQ :
1 pcs
Price :
Discuss With Sales
Payment Terms :
T/T, L/C
Supply Ability :
200 SETS/DAY
Delivery Time :
3-10days
Packaging Details :
Carton
Power :
7.5/8.6 KW
AirFlow :
170/200 m3/h
Vacuum :
-730/700 mbar
Pressure :
1040 /1040mbar
Frequency :
50/60 HZ
Voltage :
345-415△/380-480△
Current :
16.0△
Weight :
85kg
Phase :
Three
Color :
Golden or Silver
Description

Product name

7.5kw extra high suction vacuum pump for milking machine-- GHBG 010 36 3R6

7.5kw Extra High Vacuum Air Pump For Milking Machine

Products advantages

Oil free and low noise
More than 20000hours operation lifetime

No routine maintenance with stable performance
Easy installation and no vibration
SKF , NSK , ORS high quality bearing adapted
Insulation class: F/H,

Protection class: IP54/IP55
Wide voltage range and frequency range 28-60hz

Either used for suction ( vacuum ) or discharge ( pressure )

GOORUI side channel blower has been widely used to replace some TOP brand blowers such as : SIEMENS ( Gardner Denver , Nash ELMO, Rietchle ) , Bush, FPZ, Becker , ELEKTROR ,etc.

Technical data

Model No. GHBG 010 36 3R6
Phase 3
Stage Triple
Frequency 50HZ 60HZ
Output 7.5kw 8.6kw
Voltage 345-415△600-720Y
380-480△660-720Y
Current 16.7△/9.6Y 17.3△/10.0Y
Max Airflow 170m3/h 200m3/h
Max Vacuum 730mbar 700mbar
Max Pressure 1040mbar 1040mbar
Gloss Weight 85kgs
Speed of rotation 2850/3450r/min
Sound 72/76db
Level of protection IP54
Insulation class F

7.5kw Extra High Vacuum Air Pump For Milking Machine

After-sales service

When the blower has been risen for a problem, we need the customer provide following data sheet:

Firstly, we need the clear pictures of the blower, also the working site pictures, and the description details of the problem.

Secondly, we will feedback the information to our engineer to check and find a diagnosis to the problem.

If the problem is a small quality problem itself, then we will send repair instruction to you to fix, if any accessories broken, we will send the new accessories to you, also, we would consider sending a new blower to you depends on the situation.

If the problem was caused by customers' improper use of blowers, we will also offer you instruction how to repair it. And if need the accessories, we also supply the accessories to you with charges.

Warranty

Within 3 months, send a free brand-new blower while ocean freight/express courier is on customer's account.

Within 18months sending instruction via email and give a diagnosis to the problem. Then send free accessories while express rate is on customer’s account.

Product tags

milker vacuum pump

,

milking vacuum pump

,

milking machine vacuum pump
