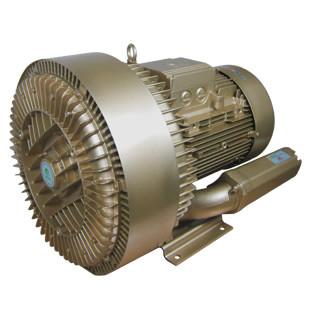

Electric 3 Phase Vacuum Pump For Pneumatic conveying Double Stage 20.0KW
Electric 3 Phase Vacuum Pump For Pneumatic conveying Double Stage 20.0KW
Electric 3 Phase Vacuum Pump For Pneumatic conveying Double Stage 20.0KW
Electric 3 Phase Vacuum Pump For Pneumatic conveying Double Stage 20.0KW
Specifications
Brand Name :
GOORUI VACUUM PUMP
Model Number :
GHBH 027 36 BR9
Certification :
CE/TUV/ISO9001-2001/SGS/ROHS
Place of Origin :
MADE IN CHINA
MOQ :
1
Price :
$2584.00/set
Payment Terms :
T/T, L/C, D/A, D/P,
Supply Ability :
1000 set/day
Delivery Time :
15 work days
Packaging Details :
1. Packed in individual cartons.
Model No :
GHBH 027 36 BR9
Phase :
3
Frequency :
50/60HZ
Output :
20.0kw/23.0kw
Voltage :
345-415△600-690Y/380-480△660-720Y
Current :
40.0△/23.0Y/42.0△/24.2Y
Max Airflow :
2050m3/h/2480m3/h
Max Vacuum :
250mbar/190mbar
Max Pressure :
230mbar/180mbar
Gloss Weight :
230kgs
Speed of rotation :
2800/3600r/min
Sound :
75/84db
Level of protection :
IP54
Insulation class :
F
Description

Blower/pump Parameter& drawing

Electric 3 Phase Vacuum Pump For Pneumatic conveying Double Stage 20.0KW

Goorui Model Single Frequency Rated Voltage Rated Max Rated Rated Sound Weight
Double Output Current Airflow Vacuum Pressure
Stage Hz KW V A m3/h mbar mbar dB(A) Kg
Double 50 20 345-415△600-690Y 40.0△/23.0Y 1940 -220 200 75 212
60 23 380-480△660-720Y 42.0△/24.2Y 2310 -160 130 84

Electric 3 Phase Vacuum Pump For Pneumatic conveying Double Stage 20.0KW

  • Energy-saving operation through higher efficiency

  • Variable output control Regenerative Blower

  • Virtually maintenance-free Regenerative Blower

  • ADC12 aluminum alloy, Processed on precision CNC machine

Blower/pump Characteristic

Oil free and low noise
More than 20000hours operation lifetime

No routine maintenance with stable performance
Easy installation and no vibration
Insulation class: F/H

Protection class: IP54/IP55

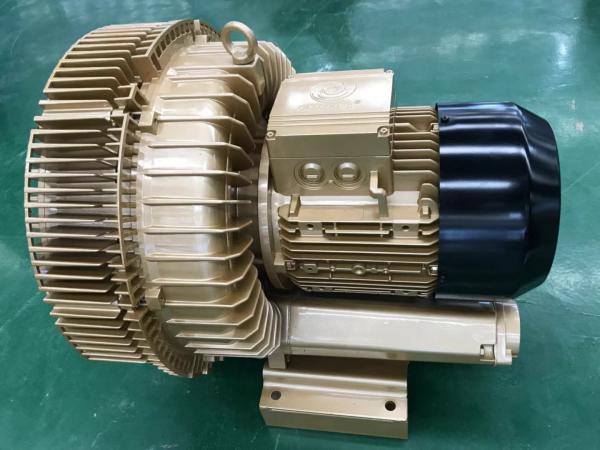

Site photographs

Electric 3 Phase Vacuum Pump For Pneumatic conveying Double Stage 20.0KW

Warranty

Within 3 months, send a free brand-new blower while ocean freight/express courier is on customer's account.

Within 18months sending instruction via email and give a diagnosis to the problem. Then send free accessories while express rate is on customer’s account.
