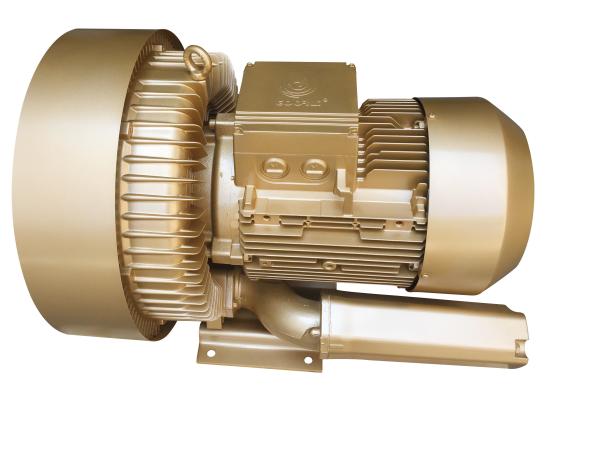

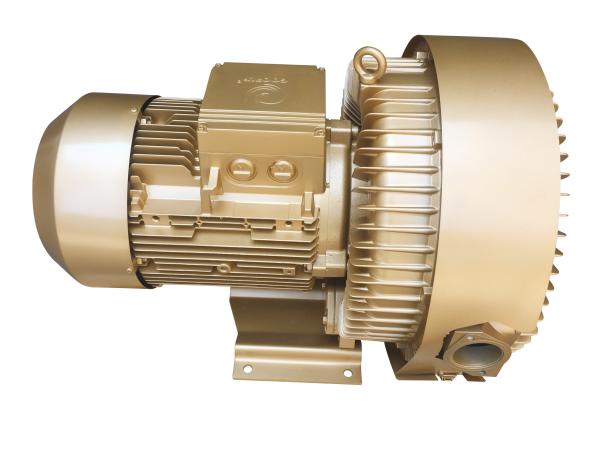

Double Stage Side Channel Blower, Central Regenerative Vacuum Pump 7.5KW High Volume
Double Stage Side Channel Blower, Central Regenerative Vacuum Pump 7.5KW High Volume
Double Stage Side Channel Blower, Central Regenerative Vacuum Pump 7.5KW High Volume
Double Stage Side Channel Blower, Central Regenerative Vacuum Pump 7.5KW High Volume
Double Stage Side Channel Blower, Central Regenerative Vacuum Pump 7.5KW High Volume
Double Stage Side Channel Blower, Central Regenerative Vacuum Pump 7.5KW High Volume
Specifications
Brand Name :
GOORUI
Model Number :
GHBH 010 36 BR8
Certification :
CE/TUV/ISO9001-2001/SGS/ROHS
Place of Origin :
CHINA
MOQ :
1 set.
Price :
US$1160/set--US$1280/set
Payment Terms :
T/T, L/C, D/P
Supply Ability :
3000 sets per month
Delivery Time :
10-15 working days.
Packaging Details :
Fixed by plywood, then packaged by carton.
Material :
ADC 12 Aliminium Alloy
Frequency :
50/60Hz
Phase :
3 phase
Power :
7.5KW
IP :
55
Warranty :
2 years
Color :
Golden or silvery
Pressure :
180mbar
Flowrate :
900m3/h
Vacuum :
-200mabr
Description

7.5KW High Volume double stage side channel blower, central vacuum air blower

Goorui blower has been widely used in more than 100 different applications. It can be used for vacuum propose, such as printing machine, dental suction machine,vacuum cleaner, central vacuum system,air knife system, drying machine,PCB drying machine, CNC router, vacuum lifting,etc;

Model No.

GHBH 010 36 BR8

Phase

3

Stage

double

Frequency

50HZ

60HZ

Output

7.5kw

8.6kw

Voltage

345-415△600-720Y

380-480△660-720Y

Current

16.7△/9.6Y

17.3△/10.0Y

Max Airflow

900m3/h

1050m3/h

Max Vacuum

200mbar

150mbar

Max Pressure

180mbar

120mbar

Gross Weight

96kg

Speed of rotation

2850/3450r/min

Sound

74/78db

Level of protection

IP54

Insulation class

F

Goorui Bower feathers and advantages :

  • Oil free and low noise

  • No routine maintenance with stable performance

  • Easy install and no vibration

  • SKF , NSK , ORS bearing adapt to ensure long-life time

  • Either used for suction ( vacuum ) or discharge ( pressure )

  • Insulation class: F, Protection class: IP54

  • Wide voltage & frequency range 28-60hz

  • Air flow range: 45 - 2330 m3/h (50/60 Hz)

  • Pressure range: 80mbar to 1040 mbar

  • Vacuum range: -70mbar to -730 mbar

  • Insulation class: F/H

  • Protection class: IP54/IP55

  • CCC, CE, RoHs, SGS, ISO9001-2008 certification

Blower applications:

  • Agriculture(Fish pond and aeration tanks)

  • Beverage(bottle drying)

  • Bio fuels/bio-gas system

  • Food and vegetable processing

  • Medical and Health service(Dental cart and dental vacuum)

  • Package (Air knives blown-off / Labeling/Drying)

  • Plastics/Rubber(Air knives blown-off/ Bottle blow moulding/ Extruder Degassing/Pneumatic conveying/ Thermoforming)

  • Printing

  • Paper and pulp/ paper converting

  • Textile industry

  • Transportation/Loading/Unloading(Pneumatic conveying/material handling)

  • Water treatment/sewage treatment

  • Woodworking(CNC Routing/bulk handling

Double Stage Side Channel Blower, Central Regenerative Vacuum Pump 7.5KW High Volume

Delivery terms:

  • CIF by sea or air freight terms

  • FOB SHENZHEN/GUANGZHOU

  • EX-WORK TERMS

  • DDP/DDU

  • DHL/FEDEX/UPS courier door to door

  • Other delivery terms are negotiable.

Delivery time :

In stock blower: 2-3days after payment

Out of stock blower:7-15days after order confirmed.

Special blower need to check specific

We keep more than 1000sets blower regularly in stock to satisfy your fast delivery demands.

Double Stage Side Channel Blower, Central Regenerative Vacuum Pump 7.5KW High Volume

Our service:
  • 12 months warranty and long-term marketing, after-sale support.
  • Professional engineer will help to recommend the most suitable models after studying your customers' requirements, and customize solution for any of your special applications.
  • OEM service available. Clear pictures, curves and dimensions are available for your website development.
  • Other dealer supports (through consultation).

Customized series available:

Double Stage Side Channel Blower, Central Regenerative Vacuum Pump 7.5KW High Volume

Qualifications and awards:

In 2007, ISO 9001:2000 passed.CE certified."Chinese trademark certificate” approved."Dongguan Energy-saving Association’s Standing Council Member” awarded.

In 2008, “German trademark certificate” certified.“Dongguan city high technology private company” awarded.

In 2009, ROHS certified.

In 2010, “Guangdong Province high technology private company” passed.

In 2011,"Dongguan city patent foster company” awarded

Double Stage Side Channel Blower, Central Regenerative Vacuum Pump 7.5KW High Volume

Exhibition shows:

Double Stage Side Channel Blower, Central Regenerative Vacuum Pump 7.5KW High Volume
