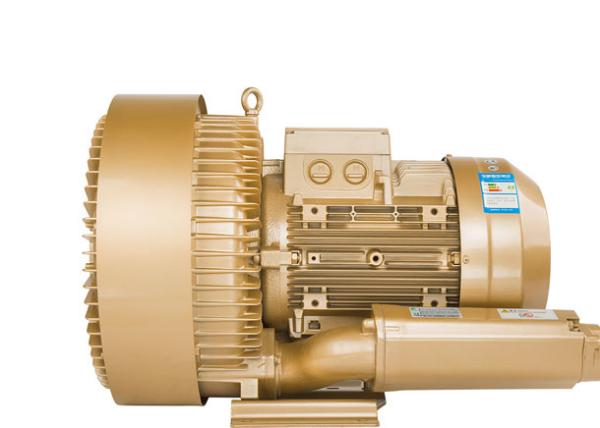

IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System
IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System
IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System
IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System
IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System
IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System
IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System
IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System
IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System
IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System
Specifications
Brand Name :
GOORUI
Model Number :
GHBH 015 36 2R8 IE3
Certification :
CE/TUV/ISO9001-2001/SGS/ROHS
Place of Origin :
CHINA
MOQ :
1 set.
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
3000 sets per month
Delivery Time :
10-15 working days.
Packaging Details :
Fixed by plywood, then packaged by carton.
Frequency :
50/60Hz
Phase :
3 phase
Power :
11kW
Warranty :
2 years
Pressure :
520mbar
Flowrate :
600m3/h
Vacuum :
-440mabr
Description

IE3 Motor 11kw 3 Phase High Pressure Ring Blower For Cental Vacuum System

Model GHBH 015 36 2R8
Phase Three
Stage Single
Frequency 50HZ 60HZ
Output 11kw 12.6kw
Voltage 345-415△/600-690 380-480△/660-720
Current 28.0/16.2 29.0/16.7
Max Airflow 520m3/h 620m3/h
Max Vacuum -430mbar -460mbar
Max Pressure 600mbar 600mbar
Gross Weight 104kgs
Speed of rotation 2850/3450r/min
Sound

74/78db
Level of protection IP55
Insulation class F

Goorui Ring Bower feathers and advantages :

  • Oil free and low noise
  • No routine maintenance with stable performance
  • Easy install and no vibration
  • Either used for suction ( vacuum ) or discharge ( pressure )
  • Insulation class: F, Protection class: IP54
  • Wide voltage & frequency range 28-60hz
  • Air flow range: 45 - 2330 m3/h (50/60 Hz)
  • Pressure range: 80mbar to 1040 mbar
  • Vacuum range: -70mbar to -730 mbar
  • Insulation class: F/H
  • Protection class: IP54/IP55
  • CCC, CE, RoHs, SGS, ISO9001-2008 certification

GOORUI Ring Blower applications:
  • Agriculture(Fish pond and aeration tanks)
  • Beverage(bottle drying)
  • Bio fuels/bio-gas system
  • Food and vegetable processing
  • Medical and Health service(Dental cart and dental vacuum)
  • Package (Air knives blown-off / Labeling/Drying)
  • Plastics/Rubber(Air knives blown-off/ Bottle blow moulding/ Extruder Degassing/Pneumatic conveying/ Thermoforming)
  • Paper and pulp/ paper converting
  • Textile industry
  • Transportation/Loading/Unloading(Pneumatic conveying/material handling)
  • Water treatment/sewage treatment
  • Woodworking(CNC Routing/bulk handling

IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System

Delivery terms:

  • CIF by sea or air freight terms
  • FOB SHENZHEN/GUANGZHOU
  • EX-WORK TERMS
  • DDP/DDU
  • DHL/FEDEX/UPS courier door to door
  • Other delivery terms are negotiable.

Delivery time :

In stock blower: 2-3days after payment

Out of stock blower:7-15days after order confirmed.

Special blower need to check specific

We keep more than 1000sets blower regularly in stock to satisfy your fast delivery demands.

IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System

Our service:
  • 12 months warranty and long-term marketing, after-sale support.
  • Professional engineer will help to recommend the most suitable models after studying your customers' requirements, and customize solution for any of your special applications.
  • OEM service available. Clear pictures, curves and dimensions are available for your website development.
  • Other dealer supports (through consultation).

Customized series available:

IE3 Motor 11kw 3 Phase High Pressure Ring Blower for Cental Vacuum System
