24 Port Fiber Optic Patch Panel Duplex 19 OM3 LC UPC Rack Mounted Patch Panel
24 Port Fiber Optic Patch Panel Duplex 19 OM3 LC UPC Rack Mounted Patch Panel
24 Port Fiber Optic Patch Panel Duplex 19 OM3 LC UPC Rack Mounted Patch Panel
24 Port Fiber Optic Patch Panel Duplex 19 OM3 LC UPC Rack Mounted Patch Panel
24 Port Fiber Optic Patch Panel Duplex 19 OM3 LC UPC Rack Mounted Patch Panel
24 Port Fiber Optic Patch Panel Duplex 19 OM3 LC UPC Rack Mounted Patch Panel
24 Port Fiber Optic Patch Panel Duplex 19 OM3 LC UPC Rack Mounted Patch Panel
24 Port Fiber Optic Patch Panel Duplex 19 OM3 LC UPC Rack Mounted Patch Panel
Specifications
Brand Name :
GoreLink
Model Number :
G702-12SC-301
Certification :
RoHS,REACH
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
1-7 Working days
Packaging Details :
1pcs/box, 5pcs/ctn
Product :
Fiber Optic Patch Panel
Application :
FTTH FTTB FTTX Network
Part Number :
G702-12SC-301
Product type :
Slide-out drawer type
Material :
Cold-rolled Steel
Ports :
24
Adapter Type :
SC Simplex
Capacity :
24 Fibers
Rack Units :
1U
Mounting :
19" Rack Mounted
Dimension :
480* 250*1U
Working temperature :
-20℃~75℃
Storage temperature :
-40~+85℃
Description

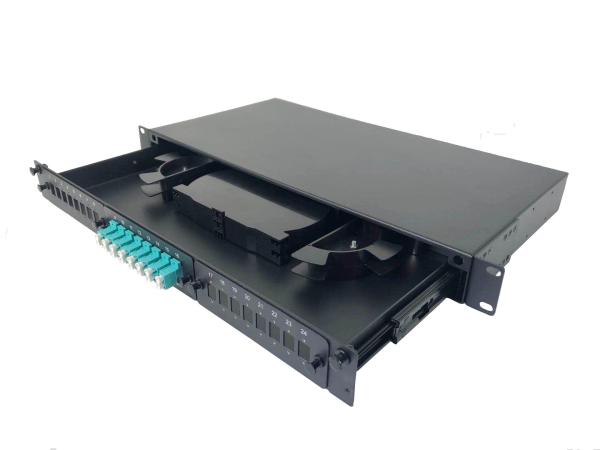

Gorelink offers a variety of fiber patch panels. The rack-mounted fiber patch panel is a hardware unit that houses fiber optic connectors and facilitates the termination, connection, and management of fiber optic cables. It is designed to be mounted on a standard 19-inch server rack or network cabinet, providing an organized and secure way to manage fiber optic connections.There are 12 port,24 port,48 port,96 port available.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Parameters

Design

Sliding Rail

Material

Cold rolled steel sheet

Mounting Type

19" Rack Mounted

Capacity

24 Fibers

No. Of Rack Unit

1U

No. Of Tray

1x24F

Capacity of Tray

24F

Adapter

LC Duplex Port

Loaded

LC/UPC OM3 Duplex adapter

Insertion Loss

≤ 0.3dB

Return Loss

≥ 55dB

Color

Black

Dimension

483x300x1U(44.5)mm

Operating Temperature (°C)

-20 ~ +75

Storage Temperature (°C)

-40 ~ +85

24 Port Fiber Optic Patch Panel Duplex 19

Ordering Information

PART NO.

DESCRIPTION

G702-12LC-301

12 Port Fiber Optic patch panel, LC OM3 Duplex(24 Fibers),1U,19" Rack Mounted,Sliding rail,Loaded LC/UPC OM3 Duplex adapter

G702-12LC-302

12 Port Fiber Optic patch panel, LC OM3 Duplex(24 Fibers),1U,19" Rack Mounted,Sliding rail,Loaded LC/UPC OM3 Duplex adapter and pigtails

* Customized
