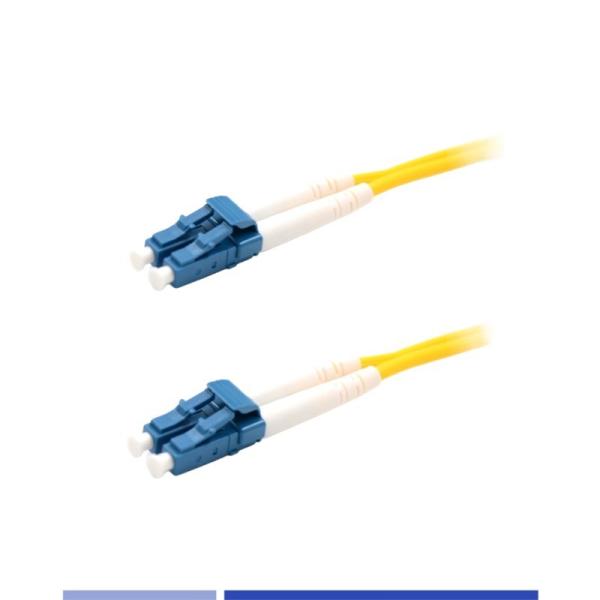

Singlemode LC UPC Patch Cord Duplex LSZH 3m Fiber Optic patch cord
Singlemode LC UPC Patch Cord Duplex LSZH 3m Fiber Optic patch cord
Singlemode LC UPC Patch Cord Duplex LSZH 3m Fiber Optic patch cord
Singlemode LC UPC Patch Cord Duplex LSZH 3m Fiber Optic patch cord
Singlemode LC UPC Patch Cord Duplex LSZH 3m Fiber Optic patch cord
Singlemode LC UPC Patch Cord Duplex LSZH 3m Fiber Optic patch cord
Specifications
Place of Origin :
Made in China
Brand Name :
GoreLink
Certification :
ISO,RoHS,REACH
MOQ :
1 Piece
Packaging Details :
Neutral Bag/GoreLink Bag
Delivery Time :
1-3 Working days
Payment Terms :
T/T,Paypal,Western Union,
Model Number :
G218-1112-3
Product :
Fiber Optic Patch Cord
Connector Type :
LC/UPC-LC/UPC
Fiber Mode :
Singlemode
Cable Type :
Duplex
Jacket :
LSZH
Length :
3m
Cable Diameter :
2.0mm
Part Number :
G218-1112-3
Features :
High quality zirconia ferrules,Low insertion loss and high return loss
Description
Fiber Optic Patch Cord, LC/UPC-LC/UPC Singlemode Duplex,LSZH,3m,2.0mm

Gorelink Singlemode 9/125um OS2 Fiber Optic Patch cord is ideal for supporting high-speed network connection. It has an LSZH(Low Smoke Zero Halogen) jacket, which protects from toxic and corrosive gases in poorly ventilated spaces and other areas where it is most critical. This cable also provides backward compatibility with existing 9/125 equipment and the performance headroom required to support LED and VCSEL laser light sources.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Mode

Singlemode 9/125um OS2

Cable structure

Duplex

Connector A

LC

Connector B

LC

Polishing

UPC-UPC

Strength Member

Aramid Yarn

Cable Diameter

2.0mm

Cable Color

Yellow

Connector Color

Blue (SC,LC)

Black (ST,FC)

Boot Color

White

Cable Jacket

LSZH

Cable length

As per the order request

OPTICAL PERFORMANCE

Attenuation

≤3.5dB/KM

Fiber Type

G.652D

G.657A1/A2

Insertion Loss(IL)

≤0.3dB(UPC)

≤0.3dB(UPC)

Return Loss(RL)

≥50dB(UPC)

≥50dB(UPC)

Operating Temperature

-10 to + 70℃

Storage Temperature

-10 to + 80℃

Singlemode LC UPC Patch Cord Duplex LSZH 3m Fiber Optic patch cordSinglemode LC UPC Patch Cord Duplex LSZH 3m Fiber Optic patch cord


Ordering Information

PART NO.

DESCRIPTION

G218-1112-1

Fiber optic patch cord, LC/UPC-LC/UPC SM Duplex 2.0mm LSZH jacket 1m

G218-1112-2

Fiber optic patch cord, LC/UPC-LC/UPC SM Duplex 2.0mm LSZH jacket 2m

G218-1112-3

Fiber optic patch cord, LC/UPC-LC/UPC SM Duplex 2.0mm LSZH jacket 3m

G218-1112-5

Fiber optic patch cord, LC/UPC-LC/UPC SM Duplex 2.0mm LSZH jacket 5m

G218-1112-10

Fiber optic patch cord, LC/UPC-LC/UPC SM Duplex 2.0mm LSZH jacket 10m

G218-1112-15

Fiber optic patch cord, LC/UPC-LC/UPC SM Duplex 2.0mm LSZH jacket 15m

G218-1112-20

Fiber optic patch cord, LC/UPC-LC/UPC SM Duplex 2.0mm LSZH jacket 20m

* Customized
