2 Strand Armored Fiber Optic Cable Singlemode G657A2 LSZH Jacket Yellow
2 Strand Armored Fiber Optic Cable Singlemode G657A2 LSZH Jacket Yellow
2 Strand Armored Fiber Optic Cable Singlemode G657A2 LSZH Jacket Yellow
2 Strand Armored Fiber Optic Cable Singlemode G657A2 LSZH Jacket Yellow
2 Strand Armored Fiber Optic Cable Singlemode G657A2 LSZH Jacket Yellow
2 Strand Armored Fiber Optic Cable Singlemode G657A2 LSZH Jacket Yellow
Specifications
Place of Origin :
Made in China
Brand Name :
GoreLink
Certification :
ISO,RoHS,REACH
MOQ :
1000m

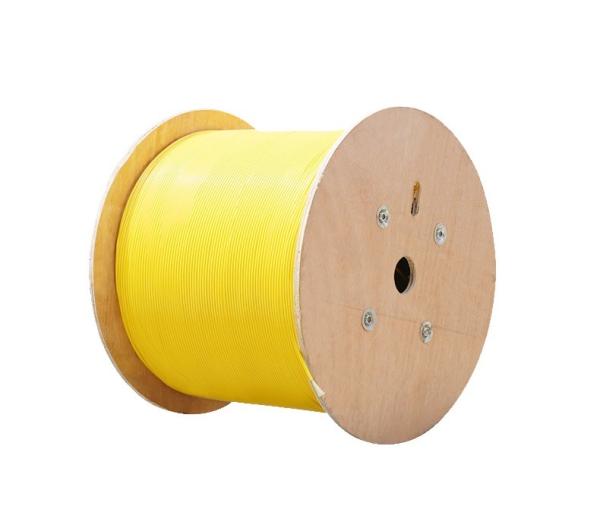

Packaging Details :
Wooden Drum/Spool+Carton
Delivery Time :
As per the order quantity
Payment Terms :
T/T,Paypal,Western Union
Model Number :
G140-102
Product Name :
Indoor Armored Fiber Cable
Fiber Count :
2 Fiber
Cable Type :
Singlemode G657A2
Jacket :
LSZH
Part Number :
G140-102
Features :
Moisture Resistance,durability, flexibility, and high-performance data transmission
Description

Indoor Armored Fiber Optic Cable,2 Fiber, Singlemode G657A2, LSZH

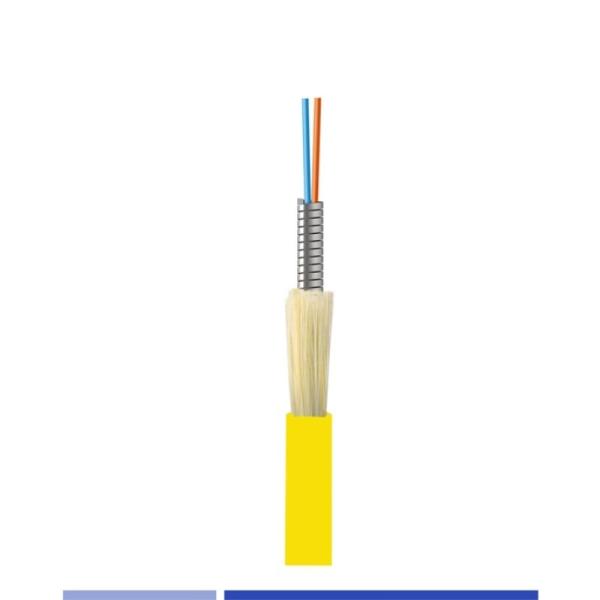

Armored indoor fiber optic cables are specifically designed for enhanced durability and performance in environments where mechanical protection is critical. Its structure contains stainless steel armor inside the jacket, which will help make it resistant to high tension and pressure. The stainless steel tube prevents optic fiber from damage which improves the stability of the system.

It contains 2 tight-buffered fibers bundled under the same jacket with a spiral steel tube as strength members to stiffen the cable and prevent kinking.Its durable design allows it to withstand installations and operations.

It is widely used for data centers or Central Office applications, as well as point-to-point connections. The strands are color-coded for easy identification and installation.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Mode

Singlemode 9/125um OS2

Cable structure 0.9mm Tight-buffered

Fiber Count

2 Core

Strength Member

Spiral Stainless steel tube + Aramid Yarn

Cable Diameter

3.0±0.2 mm

Cable Color

Yellow

Cable Jacket

Riser rated-OFNR

Cable length

As per the order request

OPTICAL PERFORMANCE

Attenuation(dB/km)

≤0.35 dB @1310nm

Core diameter(um)

9±2.5

Cladding diameter(um)

125±1.0

Wavelength 1310nm / 1550nm

2 Strand Armored Fiber Optic Cable Singlemode G657A2 LSZH Jacket Yellow

Ordering Information

PART NO.

DESCRIPTION

G140-102

Indoor Armored Fiber Distribution Cable,2 Fiber,Singlemode G657A2,LSZH,Yellow

* Customized

If you need any further questions, please feel free to contact us by sales@gorelink.com
