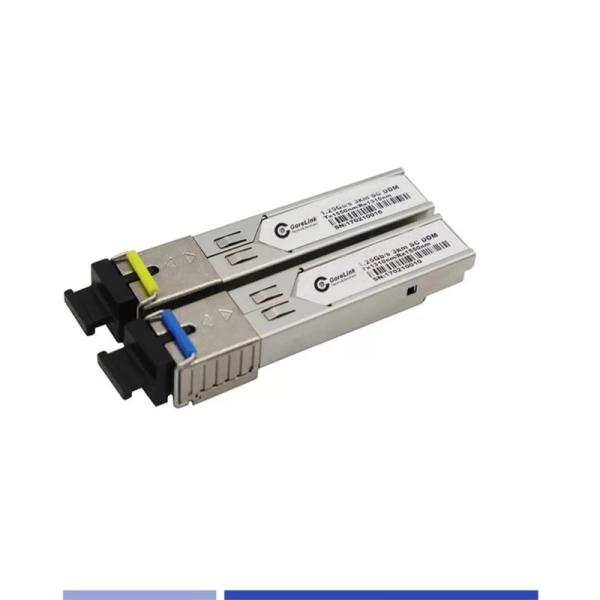

BIDI SFP Module Transceiver 1.25G Singlemode 1550nm-TX/1310nm-RX SMF SC Simplex 20KM
BIDI SFP Module Transceiver 1.25G Singlemode 1550nm-TX/1310nm-RX SMF SC Simplex 20KM
BIDI SFP Module Transceiver 1.25G Singlemode 1550nm-TX/1310nm-RX SMF SC Simplex 20KM
BIDI SFP Module Transceiver 1.25G Singlemode 1550nm-TX/1310nm-RX SMF SC Simplex 20KM
Specifications
Brand Name :
GoreLink
Model Number :
GSFP-1G-SBX20
Certification :
,CE,RoHS,REACH
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
1-3 Working days
Packaging Details :
10pcs/Pkt
Product :
1.25G BIDI SFP Module Transceiver
Part number :
GSFP-1G-SBX20
Data Rate :
1.25Gb/s
Fiber Inerface :
SC Simplex
Fiber Mode :
Single mode
Wavelength :
1550nm-TX/1310nm-RX
Distance :
20KM
Operating temperature :
0℃ to +70℃
Description

1.25G BIDI SFP Module Transceiver,Single mode,1550nm-TX/1310nm-RX,SMF SC Simplex, 20KM

The 1000BASE-LX 1G SFP (Small Form-factor Pluggable) modules, also known as Gigabit SFP transceivers, are widely used for gigabit Ethernet and fiber optic networking applications.This SFP transceiver supports up to 20km link lengths over Single-Mode fiber (SMF) using a wavelength of 1310nm via an LC connector.

It fully complies with the SFP Multi-Sourcing Agreement (MSA) and can be used on MSA compliant SFP ports of optical networking equipment. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.

Application

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Product

1000BASE-BX SFP Module

Connector

SC Simplex

Max Data Rate

1.25Gbps

Wavelength(nm)

1550nm-TX/1310nm-RX

Media

SMF

Cable Distance

20KM

DDM

Yes

Optical Components

VCSEL/PIN

Operation temperature

0°C to 70°C

Storage temperature

-40°C to 85°C

Application

Gigabit Ethernet,Router/Server Interface, Other Optical Link

Protocols

SFF-8472 MSA Compliant ,IEEE 802.3ah-2004,IEEE 802.3z

BIDI SFP Module Transceiver 1.25G Singlemode 1550nm-TX/1310nm-RX SMF SC Simplex 20KM

Ordering Information

PART NO.

DESCRIPTION

GSFP-1G-SBX01

1.25G BIDI SFP Module Transceiver,Single mode,1310nm-TX/1550nm-RX,SMF SC Simplex, 20KM

GSFP-1G-SBX02

1.25G BIDI SFP Module Transceiver,Single mode,1550nm-TX/1310nm-RX,SMF SC Simplex, 20KM

GSFP-1G-SBX

1.25G BIDI SFP Module Transceiver,Single mode,1310nm-TX/1550nm-RX,1550nm-TX/1310nm-RX,SMF SC Simplex, 20KM

* Customized

If you need any further questions, please feel free to contact us by sales@gorelink.com
