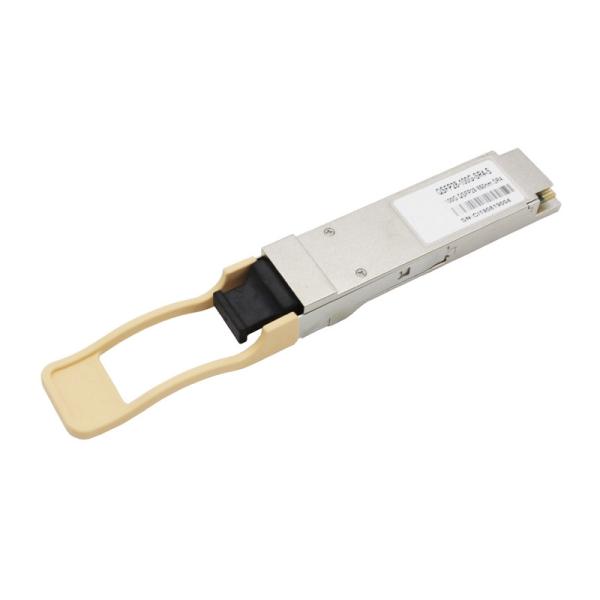

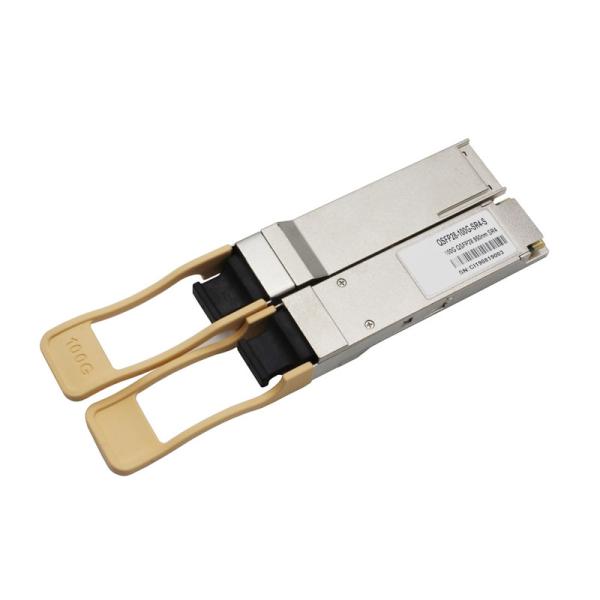

QSFP28 100G-SR4 100G Optical Transceiver Multimode MMF Transceiver 850nm 100m
QSFP28 100G-SR4 100G Optical Transceiver Multimode MMF Transceiver 850nm 100m
QSFP28 100G-SR4 100G Optical Transceiver Multimode MMF Transceiver 850nm 100m
QSFP28 100G-SR4 100G Optical Transceiver Multimode MMF Transceiver 850nm 100m
QSFP28 100G-SR4 100G Optical Transceiver Multimode MMF Transceiver 850nm 100m
QSFP28 100G-SR4 100G Optical Transceiver Multimode MMF Transceiver 850nm 100m
QSFP28 100G-SR4 100G Optical Transceiver Multimode MMF Transceiver 850nm 100m
QSFP28 100G-SR4 100G Optical Transceiver Multimode MMF Transceiver 850nm 100m
Specifications
Brand Name :
GoreLink
Model Number :
QS28-100G-SR4
Certification :
CE,RoHS,REACH
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
1-3 Working days
Packaging Details :
10pcs/Pkt
Part Number :
GSFP-100G-SR4
Data Rate :
103.1Gb/s
Fiber Type :
Multimode
Max Cable Distance :
100m
Form Factor :
QSFP28
Wavelength :
VCSEL 850nm
Fiber Interface :
MPO/MTP connector
Power Consumption :
≤3.5W
Operating temperature :
0°C ~ +70°C
Description

This 100G Optical Transceiver is a high-speed networking device designed to enable data transmission at rates of 100 gigabits per second (Gbps) over optical fiber. These Optical transceivers are essential components in modern data centers, telecommunications networks, and enterprise infrastructures, supporting high-bandwidth applications like cloud computing, video streaming, and large-scale data processing. This QSFP28 (Quad Small Form-Factor Pluggable) is most widely used form factor for 100G transceivers.It is Compact, efficient, and supports a range of interfaces.

Application

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

Key Features

  • High-Speed Data Transmission
  • Supports 103.1Gbps transmission over various distances.
  • Compact Form Factors QSFP28
  • Compatible with Ethernet, Fibre Channel, and other networking protocols.
  • Hot-Pluggable, Allows insertion and removal without shutting down the network equipment

General Specification

Product

100G Optical Transceiver Module

Connector

LC Duplex

Max Data Rate

103.1Gbps

Wavelength(nm)

1310nm

Media

MMF

Cable Distance

10KM

DDM

Supported

Optical Components

VCSEL/PIN

Operation temperature

0°C to 70°C

Storage temperature

-40°C to 85°C

Protocols

IEEE 802.3 100GBASE-LR4, QSFP28 MSA, SFF-8665, SFF-8636

QSFP28 100G-SR4 100G Optical Transceiver Multimode MMF Transceiver 850nm 100m

Ordering Information

PART NO.

DESCRIPTION

QS28-100G-SR4

100G Optical Transceiver QSFP28 100G-SR4 Singlemode MMF 850nm 100m

* Customized

If you have any further questions, please feel free to contact us by sales@gorelink.com
