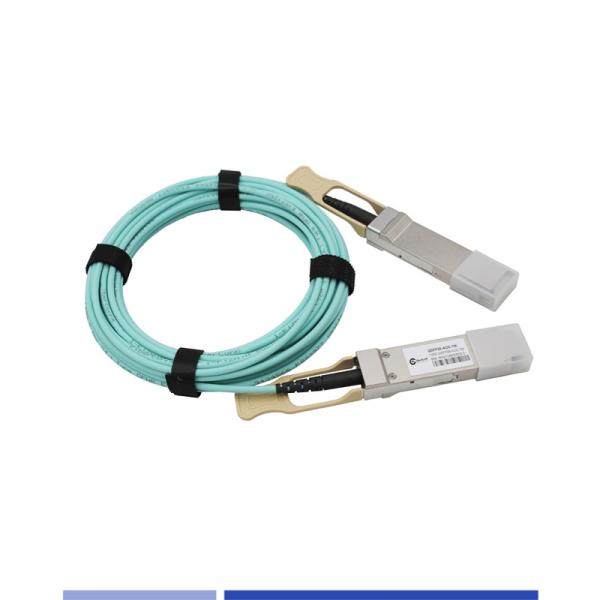

100G AOC Active Optical Cable QSFP28 to QSFP28 OM4 Cable 3m LSZH Jacket
100G AOC Active Optical Cable QSFP28 to QSFP28 OM4 Cable 3m LSZH Jacket
100G AOC Active Optical Cable QSFP28 to QSFP28 OM4 Cable 3m LSZH Jacket
100G AOC Active Optical Cable QSFP28 to QSFP28 OM4 Cable 3m LSZH Jacket
Specifications
Brand Name :
GoreLink
Model Number :
QS28-100G-AOC-3
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
1-3 Working days
Packaging Details :
1pcs/bag
Product :
100G QSFP28 Active Optical Cable
Application :
FTTH FTTB FTTX Network,Date Center
Part Number :
QS28-100G-AOC-3
Fiber Type :
Multimode OM4
Cable Jacket :
LSZH
Length :
3m
Data Rate :
100G
Form Factor :
QSFP28
Wavelength :
850nm
Operating temperature :
0°C ~ 70°C
Storage Temperature :
-40 ~ 80℃
Description

100G QSFP28 to QSFP28 Active optical cables OM4,Customized length

What is AOC? An Active Optical Cable (AOC) is a high-performance, plug-and-play cable used for data transmission. AOCs are widely used in data centers, enterprise networks, and high-performance computing applications. They are widely used in data centers, high-performance computing (HPC) environments, and other applications requiring high-bandwidth data transfer such as connecting servers, switches, storage devices, and other network equipment.

This 100G QSFP28 Active Optical Cables (AOC) is designed for the interconnect 100G Ethernet (100GbE) applications.It supports data rates up to 100Gbps and can support distances typically up to 100 meters on OM4 multimode fiber.



Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

Key Features of Active Optical Cables

  • High-Speed Data Transmission with high bandwidth and data rates
  • Integrated Design that Combines fiber optic transceivers and cabling into a single, integrated assembly.
  • No need for separate optical transceivers, simplifying installation and reducing costs.
  • Lightweight and Flexible that making them easier to install and manage in dense environments
  • Reduced Power Consumption
  • Immunity to EMI/RFI
  • Hot-Swappable which can be plugged in and removed without powering down devices, ensuring minimal downtime.
  • Durable and Reliable



General Specification

Product

100G QSFP28 AOC

Connector

QSFP28 to QSFP28

Max Data Rate

100Gbps

Wavelength(nm)

850nm

Power Consumption

<0.8W

Supply Voltage

3.3V

Fiber Cable

OM4 MMF

Cable Distance

1~100m

Cable Jacket

LSZH

Cable Color

Aqua

Min. Bend Radius

30mm

Cable Length

3m / Customized

Digital Diagnostic Monitoring

YES

Application

100GBASE Ethernet

Operation temperature

0°C to 70°C

Storage temperature

-40°C to 85°C


100G AOC Active Optical Cable QSFP28 to QSFP28 OM4 Cable 3m LSZH Jacket


Ordering Information

PART NO.

DESCRIPTION

QS28-100G-AOC-1

100G QSFP28 to QSFP28 Active Optical Cable (AOC),OM4,1m

QS28-100G-AOC-3

100G QSFP28 to QSFP28 Active Optical Cable (AOC),OM4,3m

QS28-100G-AOC-5

100G QSFP28 to QSFP28 Active Optical Cable (AOC),OM4,5m

QS28-100G-AOC-10

100G QSFP28 to QSFP28 Active Optical Cable (AOC),OM4,10m

QS28-100G-AOC-15

100G QSFP28 to QSFP28 Active Optical Cable (AOC),OM4,15m

QS28-100G-AOC-20

100G QSFP28 to QSFP28 Active Optical Cable (AOC),OM4,20m

QS28-100G-AOC-25

100G QSFP28 to QSFP28 Active Optical Cable (AOC),OM4,25m

QS28-100G-AOC-30

100G QSFP28 to QSFP28 Active Optical Cable (AOC),OM4,30m

QS28-100G-AOC-40

100G QSFP28 to QSFP28 Active Optical Cable (AOC),OM4,40m

QS28-100G-AOC-50

100G QSFP28 to QSFP28 Active Optical Cable (AOC),OM4,50m

* Customized
