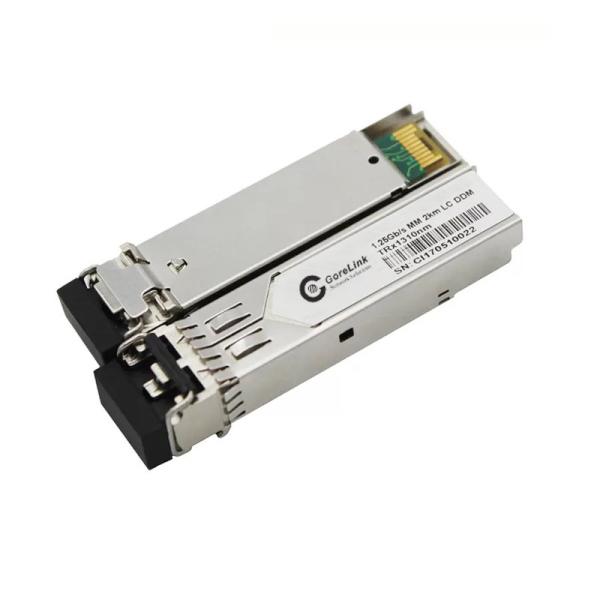

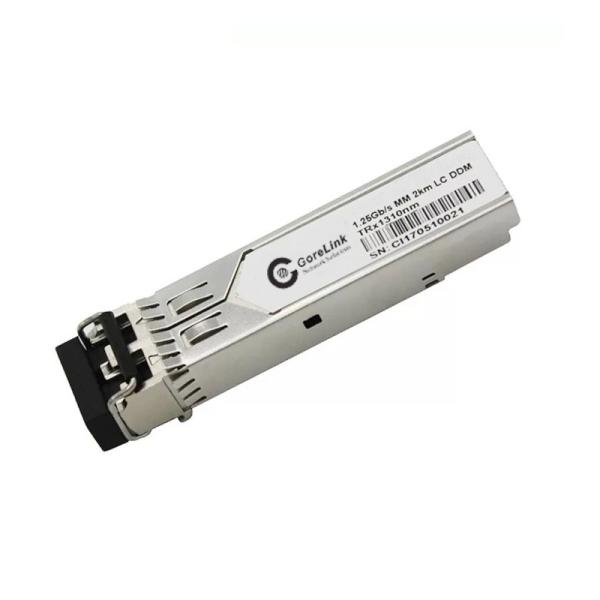

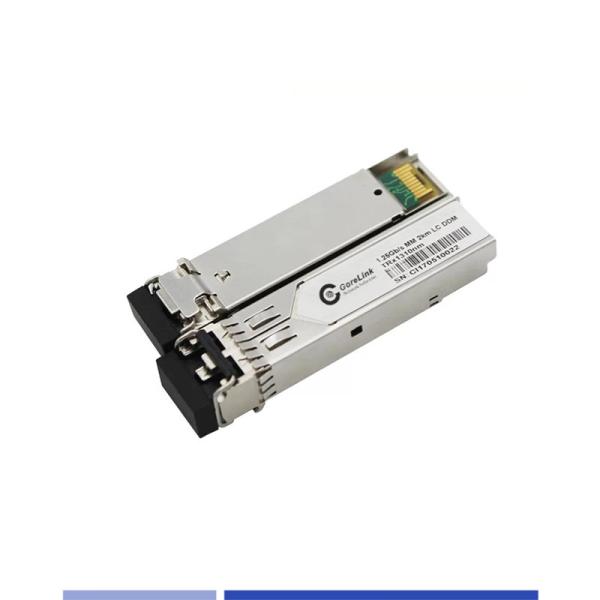

1000Base-SX Optical Transceivers Dual Fiber Gigabit Multimode MMF LC 550m 850nm
1000Base-SX Optical Transceivers Dual Fiber Gigabit Multimode MMF LC 550m 850nm
1000Base-SX Optical Transceivers Dual Fiber Gigabit Multimode MMF LC 550m 850nm
1000Base-SX Optical Transceivers Dual Fiber Gigabit Multimode MMF LC 550m 850nm
1000Base-SX Optical Transceivers Dual Fiber Gigabit Multimode MMF LC 550m 850nm
1000Base-SX Optical Transceivers Dual Fiber Gigabit Multimode MMF LC 550m 850nm
Specifications
Brand Name :
GoreLink
Model Number :
GSFP-1G-SX05
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
1-3 Working days
Packaging Details :
10pcs/Pkt
Product Name :
1.25G Multimode SFP Module Transceiver
Part Number :
GSFP-1G-SX05
Data Rate :
1.25Gb/s
Fiber Type :
Multimode (MMF)
Wavelength :
850nm
Fiber Interface :
Duplex LC
Distance :
550m
Power Supply :
Single 3.3V
Operating temperature :
0°C ~ +70°C
Description

1.25G Multimode SFP Module Transceiver,1000BASE-LX, 850nm,MMF Duplex LC, 550m

The 1000BASE-LX 1G SFP (Small Form-factor Pluggable) modules, also known as Gigabit SFP transceivers, are widely used for gigabit Ethernet and fiber optic networking applications.This Optical SFP transceiver supports up to 550m link lengths over Multimode fiber (MMF) using a wavelength of 850nm via an LC connector.

It fully complies with the SFP Multi-Sourcing Agreement (MSA) and can be used on MSA compliant SFP ports of optical networking equipment. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.

Application

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Product

1000BASE-LX SFP Module

Connector

LC Duplex

Max Data Rate

1.25Gbps

Wavelength(nm)

850nm

Media

MMF

Cable Distance

550m

DDM

Yes

Optical Components

VCSEL/PIN

Operation temperature

0°C to 70°C

Storage temperature

-40°C to 85°C

Application

Gigabit Ethernet,Router/Server Interface, Other Optical Link

Protocols

SFF-8472 MSA Compliant ,IEEE 802.3ah-2004,IEEE 802.3z

1000Base-SX Optical Transceivers Dual Fiber Gigabit Multimode MMF LC 550m 850nm

Ordering Information

PART NO.

DESCRIPTION

GSFP-1G-SX05

1.25G Singlemode SFP Module Transceiver,1000BASE-LX,850nm,MMF Duplex LC, 550m

GSFP-1G-SX02

1.25G Singlemode SFP Module Transceiver,1000BASE-LX,1310nm,MMF Duplex LC, 2KM

* Customized
