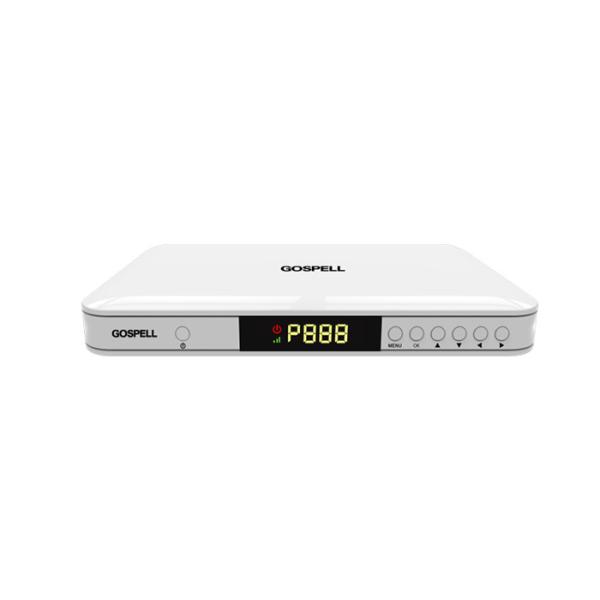

HDMI Output Dvb T Set Top Box Linux DVB-T/T2 HD H.264/MPEG-4/MPEG-2/AVS+
HDMI Output Dvb T Set Top Box Linux DVB-T/T2 HD H.264/MPEG-4/MPEG-2/AVS+
HDMI Output Dvb T Set Top Box Linux DVB-T/T2 HD H.264/MPEG-4/MPEG-2/AVS+
HDMI Output Dvb T Set Top Box Linux DVB-T/T2 HD H.264/MPEG-4/MPEG-2/AVS+
Specifications
Brand Name :
GOSPELL
Model Number :
GK7203D
Certification :
ISO9001,FCC,CE
Place of Origin :
China
MOQ :
1
Payment Terms :
TT/LC
Supply Ability :
100.000Pcs/Month
Delivery Time :
Within 30 Days
Description

Main Features

  • Fully compliant with DVB-T/T2 digital TV reception standards
  • Support HDTV/SDTV MPEG-2 / MPEG-4 / H.264
  • Support 480i/480p/576i/576p/720p/1080i/1080P
  • Support CAS
  • HDMI output for High Definition
  • Convenient auto search function and blind search
  • Support teletext/subtitle/multi-language
  • Channel edit function including Favorite, Move, Delete, Lock,Skip,Rename
  • Variable aspect ratio (4:3/16:9) 4:3 Pan & Scan or Letter Box modes
  • Support USB 2.0 and OTA software upgrade
  • Support USB 2.0 PVR. MP3, AVI,DAT,WMA(optional),MKV,MP4,VOB,BMP,JPG photo playback

Technical Specification

Chipset and Memory
Chipset model Hi3716MV330
CPU Speed 1.0GHz @2500DMIPS
SPIFlash 8MB/128MB
RAM 128MB/256MB
Power Supply
Power Supply DC 5V 1.5A
MaximumPower Consumption 6W (Typ.)
Standby power ≤ 1W
Interface
ANT IN X1
Loop out X1
Video output X1
Audio output X1
IR X1
HDMI X1
RF21-69&3/4 X1
Ethernet X1
USB 2.0 port X2
Tuner
Chipset MXL608
Compliant with DVB-T/T2
Receiving Frequency VHF 174~230MHz; UHF 474~858MHz
Input signal level -20~-81dBm
Demodulation
Chipset AV6762
Compliant with DVB-T/T2
Demodulation COFDM QPSK / 16QAM / 64QAM/256QAM
IF bandwidth

1.54,4.76,5.71,6.66,7.61,9.51MHz Normal

1.57,4.86,5.83,6.8.,7.77,9.71MHz Extend carrier mode
Audio Decoding
Compliant with MPEG-1/2, HE AAC(optional),AC3(optional)
Video Decoding
Compliant with

MPEG-4 part10 /MPEG-2 ISO/IEC 13818,

MPEG-4 Simple/Main/Advanced Profile@Level3(10Mbps),

MPEG-2 Main Profile@ Main Level(15 Mbps)

H.264 MP@L3(10Mbps),H.264 HP@L4.1 (30Mbps)
Aspect ratio 4:3/16:9
Video format PAL/NTSC/SECAM
Resolution 480i/480p/576i/576p/720p/1080i/1080p
Environmental
Operating Temperature 0℃～60℃
Storage Temperature -20℃～50℃
Mechanical
Product Dimensions(W x H x D) 180x110x24mm
Product Weight Approx. 0.6Kg
