Specifications
Brand Name :
GOSPELL
Model Number :
GN-1898C
Certification :
ISO9001,FCC,CE
Place of Origin :
China
MOQ :
1
Delivery Time :
2 weeks
Packaging Details :
1 pc package
name :
Digital TV Encoder
certification :
ISO9001,FCC,CE
Description

Product Overview

GN-1898 is the latest MPEG-2/MPGE-4 AVC high efficiency SD encoder.

It can perform SD MPEG-2/MPEG-4 AVC compression encoding of up to eight channels of analogue or digital A/V input signals simultaneously.

Then output the signals through IP interface after multiplexing.

This unit can be used for A/V signal source encoding of a DTV network head-end system, and it also supports WEB/SNMP management.

SD IPTV OTT Headend Digital TV Encoder HD H264 To Ethernet IP Video Live Streaming One Stop Solution

Main Features

l Up to eight channels of MPEG-2/MPEG-4 AVC SD encoding in 1RU;

l MPEG-1 Layer II or AAC(license option) audio encoding;

l Up to eight channels of analog composite video and unbalanced audio pairs inputs or digital SDI video with embedded stereo audio inputs;

l High picture quality in ultra low bit rate to reduce network overheads or costs;

l Web browser GUI and SNMP interface for remote management and control;

l MPEG TS-over-IP (7 x 188 Byte) output, supporting MPTS/SPTS mode

l Supports single IP output

l MPEG-2 encoding rate range from 0.5 to 5.5Mbps each video

l MPEG-4 AVC encoding rate range from 0.25Mbps to 5.5Mbps each video

l Supports multiple PAL and NTSC standard definition video encoding resolutions

l VBR/CBR video encoding

l Supports simple TS multiplex with auto-generated PSI/SI

l Low power consumption

l Front panel control and LCD display

SD IPTV OTT Headend Digital TV Encoder HD H264 To Ethernet IP Video Live Streaming One Stop SolutionSD IPTV OTT Headend Digital TV Encoder HD H264 To Ethernet IP Video Live Streaming One Stop SolutionSD IPTV OTT Headend Digital TV Encoder HD H264 To Ethernet IP Video Live Streaming One Stop SolutionSD IPTV OTT Headend Digital TV Encoder HD H264 To Ethernet IP Video Live Streaming One Stop Solution

Technical Specifications

Video/Audio Input Options
Analog Video/Audio Input Option*
Composite Video 8 x CVBS
BNC female, 75W
Unbalanced Audio 8 x Stereo pairs (R&L)
BNC female, 600W
Stereo or Mono mode
Digital Video/Audio Input Option*
Serial Digital Interface

8 x SD-SDI (BNC female, 75W)

SMPTE 259M
Audio Embedded in SD-SDI
Notes: Analog input option and digital input option are not available simultaneously.
ASI Transport Stream Input
Number of ASI Input 1 x ASI Input and 1 x ASI Loop Out
Connector BNC female, 75W
TS Packet Length 188 or 204 Bytes
Effective Input Rate 60Mbps (maximum)
Burst TS Not support
MPEG TS Over IP Output*
Number of IP Output 1 x 10/100 Base-T Ethernet
Output Mode Redundant output
MPEG TS Format 7 x 188Byte
IP Encapsulation MPEG TS-over-UDP
MPEG TS Mode MPTS or SPTS
Number of TS Output 8 TS
Addressing Unicast or Multicast
Connector RJ-45

Notes: 1) TS-over-IP output and ASI outputs will be available simultaneously in MPTS mode; TS-over-IP output will be available but ASI outputs will be not available in SPTS mode;

2) Only one IP output interface will be available when enable ASI input.
Video Encoding
Encoding Formats

MPEG-2: MP@ML

MPEG-4 AVC: MP@L3
Resolution and Frame Rate 720/704/640/544/352 x 576i@25fps, 720/704/640/544/352 x 480i@29.97fps
Aspect Ratio 1:1, 4:3, 16:9
Encoding Rate Mode CBR, VBR
Video Control Brightness, Contrast, Chrominance and Hue
Video Encoding Rate

MPEG-2: 0.5 to 5.5Mbps per program

MPEG-4 AVC: 0.25 to 5.5Mbps per program
Watermark function
Watermark image format PNG format
Superimposed channel 8 CH
Transparency adjustment range 0~100
Audio Encoding
Encoding Standards

MPEG-1 Layer 2

Optional: AAC
Operation Mode Stereo or Mono
Volume Control -63dB to +20dB
Sample Rate 32 kHz, 44.1 kHz, 48 kHz
Audio Encoding Rate

MPEG-1 Layer II: 192/224/256/320/384 kbps

Optional AAC: 96/112/128/160/192/ 224/256/320/384 kbps
Network Management
Interface 1 x 10/100 Base-T Ethernet
Connector RJ-45
Management Web browser and SNMP management
Miscellaneous
Front Panel 3.5’’ LCD with 6 x Control Button for 2-lines information display and settings
3 x Dual color LED, for status indications of power, working and Alarm
Rear Panel 1 x 3-Pin Receptacle(AC Input)
1 x Power switch
1 x Serial Console Port(via RJ-45 connector)
Power Supply
Input Voltage 90 - 250 VAC, 50/60Hz
Power Consumption 55W (Maximum)
Environmental
Operating Temperature 5℃ to 45℃(41℉ to 113℉)
Storage Temperature -25℃to 70℃(-13℉ to 158℉)
Operating Humidity 90%, non-condensing
Mechanical

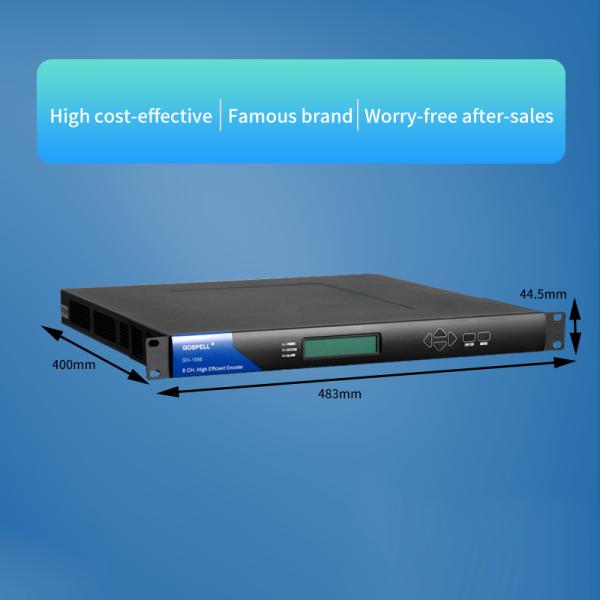

Product Dimensions

(W x H x D)

483mm x 44.5mm x 400mm

19’’ x 1.73’’ (1 RU) x 15.8’’
Product Weight 5Kg (11 lbs)
