4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver
4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver
4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver
4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver
4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver
4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver
Specifications
Brand Name :
OEM
Model Number :
4k transmission
Certification :
CE, ROHS, FCC
Place of Origin :
China
MOQ :
1 set
Price :
$9499/set
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/P
Delivery Time :
5-8 working days
Packaging Details :
Export Carton Packing
Type :
Video Encoder
Function :
Wireless Video Transmission System
Transmission Distance :
500 m/1600 ft (LoS)
Output :
12G-SDI
Input :
HD & SDI
Resolution :
4096*2160 60Hz
Frequency Range :
5.1--5.8GHz
Operating Voltage :
DC9V-36V
Single package size :
43X17X38 cm
Antenna Mode :
2T2R External Antenna
Usage :
Live Events Broadcast
Single gross weight :
5.5 kg
Description

4K UHD Video Transmission System with 1600FT Range Low Delay Wireless Video Transmitter and Receiver Support 12g-SDI 10

Features

Wireless transmission up to 800ft.

Latency as low as 70ms.

Support a wide variety of resolution formats up to 1080p60Hz.

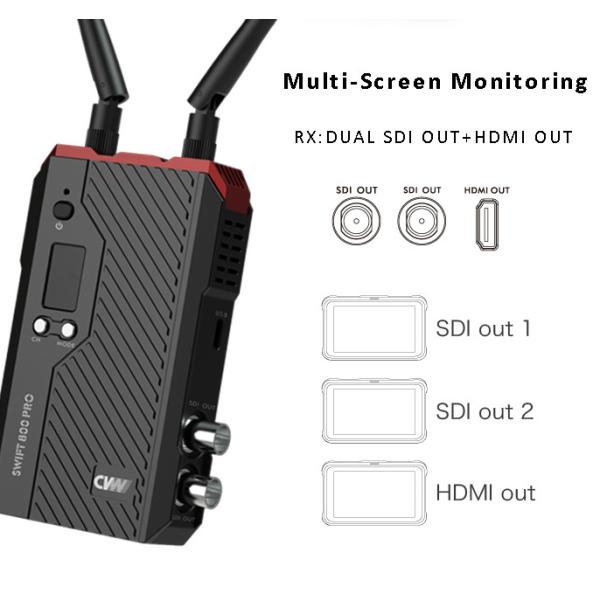

Support SDI input, SDI loop out, dual SDI output, HDMI input and output.

Support App monitoring.

Up to 25Mbps bit rate.

As many as 4 smartphones/iPads can be connected to the transmitter.

DC/SONY NP-F battery/power bank, any of which can serve as a power source.

Versatile OLED screen displays battery status, fan status, resolution, signal strength, work mode and channel.

Fans can be shut down to eliminate the noise if necessary.

The App comes with a wide variety of visual effects.

Compact and portable.

Detailed Photos

4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver

4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver

4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver

4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver

4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver

4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver

4K UHD Video Transmission System With 1600FT Range Low Delay Wireless Video Transmitter And Receiver

Specification

Operating Frequency
5.1GHz-5.8GHz (11 frequencies)
Operating bandwidth
40MHZ
Output Power
23 dBm
Receiving Sensitivity
,-94dbm
Antenna Mode
4*4 MIMO 5dBi External Antenna
Network encryption
WPA2 / WPS/AES-128
Transmission Distance
Omni-directional antenna 500 meters (50Mbps line-of-sight)
Receive plus flat panel antenna 970 meters (30Mbps line-of-sight)
Video Compression Format
H.265
Sampling rate 4:2:2 10bit
Supported
APP Management
Not Supported
Multi-Receiver
Not Supported
Time Code Transmission
Not Supported
Input cross conversion
Not Supported
Video format conversion
Not Supported
Audio Encoding
MPEG-AAC audio encoding, sampling rate: 44.1/48kHz
Video delay
70ms
Camera control signal RS232 or RS422 control transmission
Supported
Tally light signal transmission
Supported
Intercom voice intercom
Supported
Upgrade function
Supported
Transmission protocol (RTSP/RTP streaming)
Supported
Interface
HD in*1
SDI in*1
SDI loopout*1
USB Type-C
DC power socket
RS232(RJ45) port
Intercom port (3.5mm headphone port) Tally port (3.5mm headphone port)
RJ45 network port
Resolution Support (SDI)
4096x2160 23.98/ 24/25/29.97/30/50/59.94/60Hz
3840x2160 23.98/ 24/25/29.97/30/50/59.94/60Hz
1080P 60/59.94/50Hz(3GA&3GB)
1080i 60/59.94/50Hz
1080P 30/29.97/25/24/23.98Hz
1080PsF 29.97/25/24/23.98Hz
720P 60/59.94/50Hz
Resolution Support (HDMI)
4096x2160 23.98/ 24/25/29.97/30/50/59.94/60Hz
3840x2160 23.98/ 24/25/29.97/30/50/59.94/60Hz
1080P 60/59.94/50/30/29.97/25/24/23.98Hz
1080i 60/59.94/50Hz
720P 60/59.94/50Hz
Display and buttons
Support display network connection status, video resolution, battery power and other statuses
Support function menu operation settings (sweep, upgrade, high/low gain switching, voice intercom, video bit rate, serial port
baud rate, fan control, etc.)
Voltage Operating Range
9-36V
Operating Environment
Temperature: -10ºC~+55ºC; Humidity less than or equal to 95% (no condensation)
Product Certification
FCC, CE
Dimension
185X117X40mm
