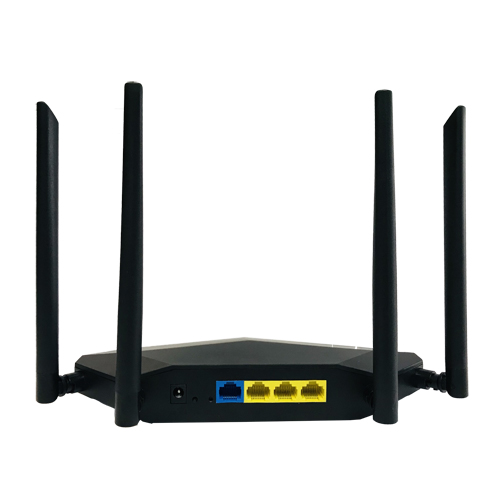

1800Mbps WiFi6 Router Dual Band black Plastic 4 Antennas Mesh WiFi Router
1800Mbps WiFi6 Router Dual Band black Plastic 4 Antennas Mesh WiFi Router
1800Mbps WiFi6 Router Dual Band black Plastic 4 Antennas Mesh WiFi Router
1800Mbps WiFi6 Router Dual Band black Plastic 4 Antennas Mesh WiFi Router
Specifications
Model Number :
WF7022A
Place of Origin :
Shenzhen, China
MOQ :
2000pcs
Payment Terms :
T/T, L/C
Delivery Time :
20-25 work days
Packaging Details :
Stanard Carton
Model :
WIFI6 Router
WLAN rate :
1.2Gbps
Protocol :
802.11 a/b/g/n/ac/ax 2x2 MU-MIMO
Color :
Black
Warranty :
1 Year
Security :
Dos, SPI Firewall,IP Address Filter/MAC Address Filter/ Domain Filter,IP and MAC Address Binding
Antenna :
Two (2) external antennas 5dBi for 2.4GHz, Two external antennas 5dBi for 5GHz
Housing Dimensions :
130x 110 x 20 mm(LxWxH)
Description

Black plastic 4 Antennas 2.4/5G Dual Band Wifi 6 router WF7022A


1. Product Descriptions

Equipped with 256MB DDR3 high-speed memory, providing powerful data forwarding and processing capabilities. It has the characteristics of high bandwidth, high access, low delay, and low power consumption. Support 802.11AX wireless technology, provide 1800M wireless transmission rate, support Easy Mesh networking, 4 high-gain dual-polarized antennas, stronger signal and wider coverage.

● A high-performance smart Mesh networking router that supports the latest WIFI 6 protocol,
● 2.4G+5G four-antenna design, supporting IEEE802.11b/g/n, IEEE802.11ac, IEEE802.11ax wireless standards.
● 1800Mbps high speed, which can solve complex user scenarios with multiple users, large coverage and low latency.
● 4-port Gigabit Ethernet design.
● Support WPS/RESET, MESH one-key networking.
● Support two Mesh routing protocols, Easy Mesh/WIFI Son.

Product positioning and appearance parameters
Size 130 x 110 x 20 mm
Weight 385g
Product Positioning Family core terminal equipment, smart router, MESH
Application scenarios Indoor use, home or small and medium shops
Internet access mode Wi-Fi 6, RJ45 network interface
Hardware specifications
CPU BCM6755 1.5GHz ARM Cortex-A7 multi-core processor
DDR DDR3 256MB
Nand Flash Nand Flash 1Gb(128MB)
Wi-Fi Wi-Fi 6 802.11 a/b/g/n/ac/ax 2x2 MU-MIMO,AX1800
system Linux 　
Interface parameters
WAN RJ45 *1 Uplink interface
LAN RJ45 *3 Downstream interface
Antenna Wi-Fi,external antenna 4 external antennas
Power Specifications DC 12V 1A Standard specifications
LED 1 Network indicator
USB interface No customizable
button WPS 1
RESET 1
Power supply voltage technical indicators
Power connector 12V standard DC input
Software function
Mobile phone, computer configuration CPE Support Web GUI
OTA Support Self-upgrade maintenance platform
Wi-Fi Mesh Support Support Mesh network, self-recovery
Low latency Wi-Fi Support Basic features of Wi-Fi 6
working environment 　
Operating temperature 0°C ~ 40°C 　
Operating humidity 10% ~ 90% RH 　
Storage temperature -10°C ~ 70°C 　
附件
Power Supplier 1 12V 1A,DC
Cable 1 1.5m
Manual 1 　

1800Mbps WiFi6 Router Dual Band black Plastic 4 Antennas Mesh WiFi Router

1800Mbps WiFi6 Router Dual Band black Plastic 4 Antennas Mesh WiFi Router
