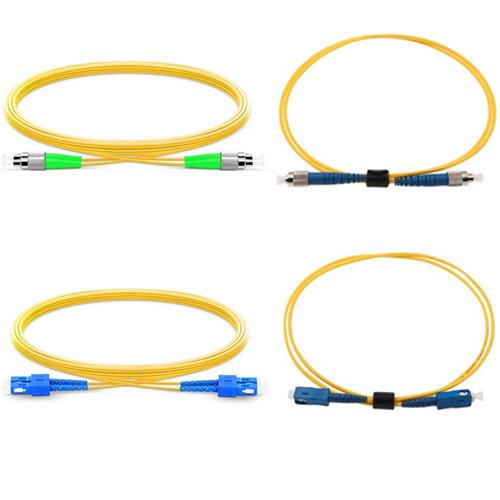

High Reliability Fiber Optic Accessories / FTTx Fiber Optic Patch Cord
High Reliability Fiber Optic Accessories / FTTx Fiber Optic Patch Cord
High Reliability Fiber Optic Accessories / FTTx Fiber Optic Patch Cord
High Reliability Fiber Optic Accessories / FTTx Fiber Optic Patch Cord
High Reliability Fiber Optic Accessories / FTTx Fiber Optic Patch Cord
High Reliability Fiber Optic Accessories / FTTx Fiber Optic Patch Cord
Specifications
Model Number :
Fiber Optic Patch Cord
Place of Origin :
Shenzhen, China
MOQ :
10pcs
Payment Terms :
T/T, L/C
Delivery Time :
10-15 working days
Packaging Details :
Standard Carton
Description
Fiber Optic Accessories FTTH Passive Optic Device Fiber Optic Patch Cord​
Patchcords provide high reliability and flexibility for our customers in different industries. Our top-of-the-line fiber optic cable assembles and stringent manufacturing process ensures the excellent optical performance for our atchcords with traceable data. All patchcord can be customized in length, fiber mode and connecter types to suit every single customer's requirement with our state-of-the-art production facilities.
Features

● 100% factory tested assemblies with traceable test data,Low environmental sensitivity
● Low insertion loss, High return loss, Stricter than industry standards
● Good exchange ability and good durability, Stable optical properties

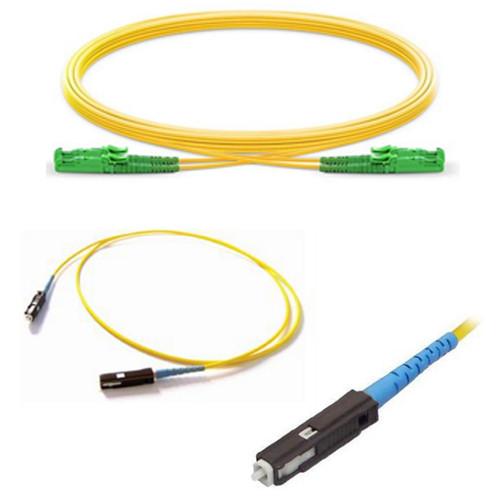

● Standard connector, Various connector option: LC, SC, FC, ST, E2000, MU, DIN etc.
● Compliant with IEC61754, GR-326, TIA/EIA 568 standard
Application

● CATV, LANs, WANs
● Telecommunication networks
● Active device termination
● Data center system networks
● Video and military active device termination
● FTTx
Specifications:
Fiber Type SM( 9/125um) MM (50/125um, 62.5/125um)
Polish UPC APC UPC
Insertion Loss( typical) ≤0.30dB ≤0.30dB
Return Loss ≥50dB ≥60dB ≥20dB
3D Radius of Curvature :10-25mm(PC/UPC), 5-12mm(APC) Apex offset : 0-50um High fiber : ±100 nmAngle: 8±0.2°(APC)
Repeatability 1000 times typical change value ≤ 0.20dB
Interchangeability ≤0.20dB
Cable Diameter 2.0mm, 2.4mm, 3.0mm
Jacket Material(optional) LSZH, OFNP, OFNR, PVC
Fiber Moder(optional) G652D, G657A, G657B, OM1, OM2, OM3, OM4
Operating Temperature -20 ~ +70 ℃
Storage Temperature -40 ~ +85 ℃
