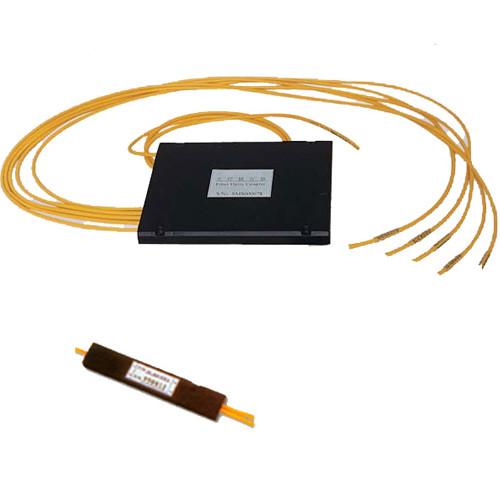

FTTH Fiber Optic Accessories FBT Optical Fiber Splitter Coupler For CATV
FTTH Fiber Optic Accessories FBT Optical Fiber Splitter Coupler For CATV
FTTH Fiber Optic Accessories FBT Optical Fiber Splitter Coupler For CATV
FTTH Fiber Optic Accessories FBT Optical Fiber Splitter Coupler For CATV
FTTH Fiber Optic Accessories FBT Optical Fiber Splitter Coupler For CATV
FTTH Fiber Optic Accessories FBT Optical Fiber Splitter Coupler For CATV
Specifications
Model Number :
FBT Optial Fiber Splitter Coupler
Place of Origin :
Shenzhen, China
MOQ :
10pcs
Payment Terms :
T/T, L/C
Delivery Time :
10-20 working days
Packaging Details :
Standard Carton
name :
fiber optic passive devices
Description
Fiber Optical Accessories FTTH Passive Optical Device FBT Optial Fiber Splitter Coupler

(FBT) Fused Biconical Taper splitter based on the traditional technology, it is to bundle together two or more optical fibers, and then pull the cone machine melt stretching, and real-time monitoring the change of the ratio, spectral ratio requirements after melt stretching, one side retain a single fiber (the rest of the cut) as input, the other end is a multi-channel output
Features​

● Different combinations of coupling ratio
● Low crosstalk & excess loss
● High optical return loss
● Available in dual/single wavelength operation
● Optional connectors termination upon request
Application

● CATV, LAN, WAN network
● Active devices
● Optical fiber communication system
● Telecommunication network
● EPON/GPON
Specifications:
Parameter P grade A grade Unit
Port Type 1x2 or 2x2 /
Operating Wavelength 1310 ± 40 & 1550 ± 40 nm
Maximum Insertion Loss ≤3.5 ≤3.7 dB
Return Loss ≥55 dB
Additional Loss ≤0.15 ≤0.20 dB
Return Loss Uniformity 0.4 0.7 dB
Polarization Dependent Loss ≤0.10 ≤0.15 dB
Directivity ≥55 dB
Fiber Type Corning SMF-28e or Customer specified /
Operating Temperature -40~+85 ℃
Storage Temperature -40~+85 ℃
Cable Dia 250um Bare fiber or 0.9 Loose tube mm

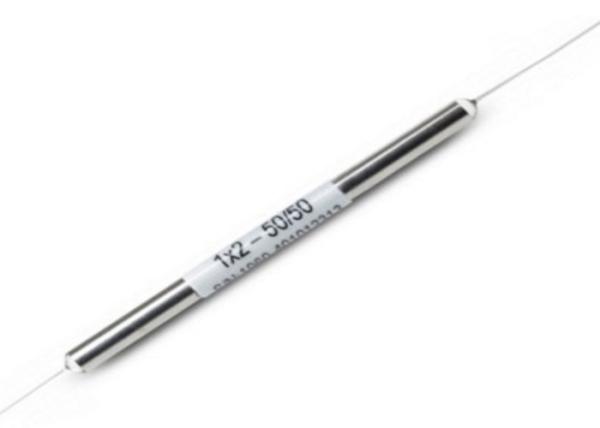

Package Dim 3mm x 60mm stainless steel tube mm
Double Window Splitter (1310/1550nm)
Split Ratio Insertion loss (dB) P grade Insertion loss (dB) A grade Unit
50/50 ≤3.5 ≤3.7 dB
45/55 ≤3.9/2.9 ≤4.2/3.1 dB
40/60 ≤4.7/2.7 ≤5.0/2.9 dB
30/70 ≤6.0/1.9 ≤6.4/2.2 dB
20/80 ≤7.9/1.2 ≤8.5/1.4 dB
10/90 ≤11.3/0.6 ≤12.7/0.8 dB
5/95 ≤15.0/0.4 ≤16.0/0.5 dB
1/99 ≤23.5/0.3 ≤24.0/0.4 dB
Single Window Splitter
Split Ratio Insertion loss (dB) P grade Insertion loss (dB) A grade Unit
50/50 ≤3.6 ≤3.7 dB
45/55 ≤3.8/2.8 ≤4.0/3.0 dB
40/60 ≤4.4/2.5 ≤4.8/2.8 dB
30/70 ≤5.6/1.8 ≤6.1/2.0 dB
20/80 ≤7.6/1.2 ≤8.0/1.3 dB
10/90 ≤10.8/0.6 ≤12.0/0.8 dB
5/95 ≤14.0/0.4 ≤14.5/0.5 dB
1/99 ≤21.0/0.2 ≤21.5/0.3 dB

Notes:

1. All values specified are without connectors.

2. IL will increase 0.2dB when add one connector.

3. Customized service is available.
