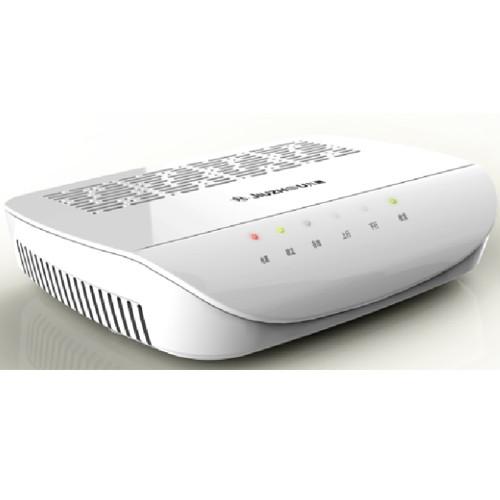

Docsis 3.0 High Speed Cable Modem , Docsis 3.0 Modem With Wifi 2.4G CM-3011-2W
Docsis 3.0 High Speed Cable Modem , Docsis 3.0 Modem With Wifi 2.4G CM-3011-2W
Docsis 3.0 High Speed Cable Modem , Docsis 3.0 Modem With Wifi 2.4G CM-3011-2W
Docsis 3.0 High Speed Cable Modem , Docsis 3.0 Modem With Wifi 2.4G CM-3011-2W
Specifications
Model Number :
CM-3011-2W
Certification :
Labs Certification
Place of Origin :
Shenzhen, China
MOQ :
200pcs
Payment Terms :
T/T, L/C
Delivery Time :
25-35 work days
Packaging Details :
Standard Carton
Model :
DOCSIS 3.0 and EuroDOCSIS 3.0 Cable Modem
Application :
Ethernet over Coaxial Cable of CATV System with Docsis CMTS
Ports :
Lan 2* 10/100/1000 Mbps RJ45
Wifi :
802.11 b/g/n mixed, 2.4G, 2x5dBi
Stream :
8x4 or 16x4 Optional
Material :
Plastic
Color :
Black&White
Warranty :
1 Year
Description

Docsis 3.0 and EuroDOCSIS 3.0 Cable Modem 2.4G Wifi CM-3011-2W Ethernet over Coaxial Cable of CATV System​

● BCM3383GU,EuroDOCSIS3.0/DOCSIS3.0
● 8x4 or 16x4 Optional
● Support FBC(Full Band Capture)
● Support fast channel switch
● Integrated MIB library,with frequency memory function
● Support SNMP,TCP/IP,TFTP
● With 2*GE Port
● 2.4G wifi(In&Ex antenna optional)
● IEEE802.11n, 802.11g,802.11b
● Support CSMA/CA,CSMA/CD,TCP/IP, PPPoE, DHCP,ICMP,NAT
● Support Bridge and gateway mode
● Size:185*138*37mm

Specifications:

Euro-DOCSIS
RF Downstream (Receiving)
Frequency Range 108-1002 MHz/112-1002 MHz optional
Modulation Mode 64QAM or 256QAM
Input Level

43~73 dBuV (64QAM)

47~77dBuV (256QAM)
Symbol Rate 6.952 Msym/sec
Bandwidth 8MHz
Input Impedance 75 ohm
RF Upstream (Transmitting)
Frequency Range 5-65Mhz /5-85Mhz optional
Output Level(TDMA) Modulation Mode Ch1 Ch2 Ch3/4
QPSK +61 dBmV +58 dBmV +55 dBmV
8 QAM +58 dBmV +55 dBmV +52 dBmV
16 QAM +58 dBmV +55 dBmV +52 dBmV
32 QAM +57 dBmV +54 dBmV +51 dBmV
64 QAM +57 dBmV +54 dBmV +51 dBmV
Output Level (S-TDMA) Ch1 Ch2 Ch3/4
+56 dBmV +53 dBmV +53 dBmV
Symbol Rate

TDMA: 160, 320, 640, 1280, 2560, 5120 KHz

S-CDMA: 1280, 2560, 5120KHz
Bandwidth

TDMA: 200, 400, 800, 1600, 3200, 6400 KHz

S-CDMA: 1600, 3200, 6400 KHz
DOCSIS(US)
RF Downstream (Receiving)
Frequency Range 91-1000 MHz
Modulation Mode 64QAM or 256QAM
Input Level 45~75 dBuV
Symbol Rate

5.069 Msym/sec(64QAM)

5.361 Msym/sec(256QAM)
Bandwidth 6MHz
Input Impedance 75 ohm
RF Upstream (Transmitting)
Frequency Range 5-42Mhz
Output Level(TDMA) Modulation Mode Ch1 Ch2 Ch3/4
QPSK +61 dBmV +58 dBmV +55 dBmV
8 QAM +58 dBmV +55 dBmV +52 dBmV
16 QAM +58 dBmV +55 dBmV +52 dBmV
32 QAM +57 dBmV +54 dBmV +51 dBmV
64 QAM +57 dBmV +54 dBmV +51 dBmV
Output Level(S-TDMA) Ch1 Ch2 Ch3/4
+56 dBmV +53 dBmV +53 dBmV
Symbol Rate

TDMA: 160, 320, 640, 1280, 2560, 5120 KHz

S-CDMA: 1280, 2560, 5120KHz
Bandwidth

TDMA: 200, 400, 800, 1600, 3200, 6400 KHz

S-CDMA: 1600, 3200, 6400 KHz
WIFI
Set Reg. User name 3 User class(High, standard, user)
Set Reg. Password Customize by operation
Wifi standard 802.11 b/g/n mixed
Modulation Mode

802.11b:DSSS/BPSK/QPSK/CCK

802.11 g:OFDM/DSSS/BPSK/QPSK/CCK 802.11n:OFDM/DSSS/BPSK/QPSK/CCK
Transmitting Speed

802.11b complaint: 11,5.5,2,1 Mbps

802.11g complaint: 54,48,36,24,18,12,9,6 Mbps

802.11n complaint: 135,122,108,81,65,58.5,52,39,26,19.5,13,6.5Mbps
Channel 13(Ch.1-13)
Frequency 2.412～2.472GHz
Transmitting Power 18dBm±1.5dBm (Included antenna Gain)
EVM

-25dB@54Mbps

-28dB@MCS7
Receiving Sensitive

-91dBm@1Mbps

-70dBm@54Mbps

-83dBm@ HT20 MCS0

-80dBm@ HT40 MCS0
Transmitting Distance

Outdoor 300m, Indoor 100m

(Changing according to actually environment)
Safty 64/128-bit WEP, AES, WPA, WPA2, WPA-PSK, WPA2-PSK, MAC filter
SSID Name Customized
SSID visible Customized
Working Mode Customized
Wifi Password Customized
Limited Terminal number connected yes
Limited Terminal number Max.16(Default)
LED light

Power: Status Display

D/S:Downstream Status

Flash: Searching Down Channel

On: Find the Down Channel and Lock

U/S:Upstream Status

Flash: Searching up Channel (Distance Measuring)

On: Find up Channel and Finish Distance Measuring

Online: Status Display

Flash: Registering

On: Finish Registering and Connect Communication

ENET: Status display

Off: Abnormal Connection

Flash: Transmitting or Receiving the Data

On: Normal Connection
Chipset and Memory
Main Chipset BCM3383GU
Memory Flash 4MB SPI FLASH
DRAM 128MB DDR2
EEPROM None

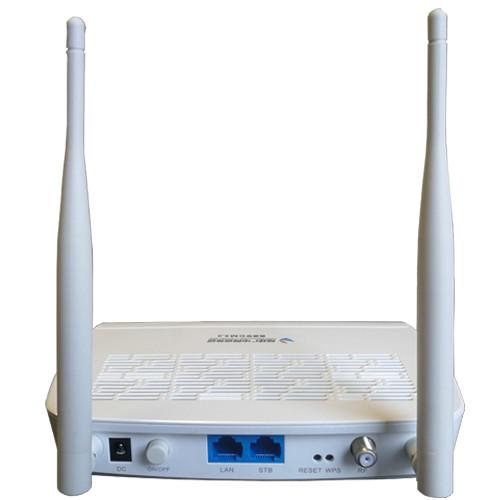

Interface
Power socket 1
Power switch 1
F Connector 1
Reset 1
Lan port 2x GbE port 10/100/1000 Base-Tx
Power management
Input Voltage DC-12V
Power consume Running ≤6W
Size 183*130*41
Weight 0.2Kg
