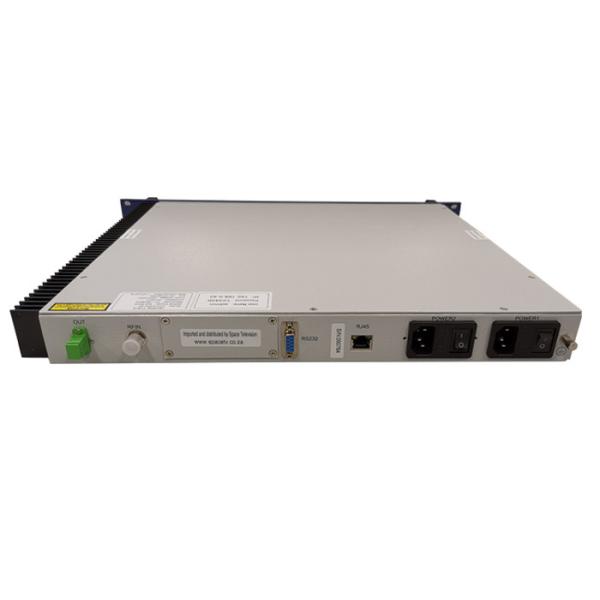

1U Height CATV Optical Transmitter , 1310nm Fiber Optical Transmitter GFS1310F-E-2
1U Height CATV Optical Transmitter , 1310nm Fiber Optical Transmitter GFS1310F-E-2
Specifications
Model Number :
GFS1310F-E-2
Place of Origin :
Shenzhen, China
MOQ :
1 pc
Payment Terms :
T/T, L/C
Delivery Time :
10-15 working days
Packaging Details :
Standard Carton
Height :
1U
Fiber Connector :
FC/APC,SC/APC,SC/UPC (Optional Customer)
Power Voltage :
220V(110～254)
Optic Wavelength :
1290～1310
Optic Wavelength (nm) :
1290～1310
Power Consumption (W) :
≤30
Description

CATV Optical Transmitter GFS1310F-E-2 1310nm Fiber Optical Transmitter

Features:

● Use the international famous brand high performance DFB laser with narrow spectrum, good linearity and high output power.

● RF drive adopting RF power digital automatic process technique, can according to level of input RF signal and number of channels (15-48 channels), automatically processing drive level power, making the C/N, CTB and CSO always in best worth, insure product function; and be steady of output level.

● Advance multi-frequency RF pre-distortion technique with arsenide kalium component availably improves CTB and CSO, the most important parameter of CATV, and heightens C/N at the same time.

● Built-in perfect microprocessor automatic monitor circuit can real-time accurately monitor optical output power and temperature of the laser insure stable optical output power, and prolongs work life of the laser availably.

● Built-in blue VFD monitor on front panel can accurately display the equipment's each work status parameter, and can display error message when the equipment breaks down, make maintenance and fix more convenient.

● 19″1U height standard rack mount, equipped standard RS232 network port, can expediently realize monitor through network.

Specifications:​

Model

GFS1310F-E

 2 4 6 8 10 12 14 16 18 20 24 26 30 32 36

Optic Power

(mW)

 ≥2 ≥4 ≥6 ≥8 ≥10 ≥12 ≥14 ≥16 ≥18 ≥20 ≥24 ≥26 ≥30 ≥32 ≥36

Optic Power

(dBm)

 3 6 7.8 9 10 10.8 11.5 12 12.3 12.8 13.8 14.1 14.8 15.0 15.6

Optic Wavelength

(nm)

 1290～1310
Fiber Connector FC/APC,SC/APC,SC/UPC (Optional Customer)

Working Bandwidth

(MHz)

 45～1000
Channels 59
CNR (dB) 51
CTB (dBc) ≤-65
CSO (dBc) ≤-60

RF Input Level

(dBμV)

 Not with pre-distortion 78±5
With pre-distortion 83±5
Band Unflatness ≤0.75
Power Consumption (W) ≤30

Power Voltage

(V)

 220V(110～254)

Working Tem.

(℃)

 0～45
Size 19"×15"×1.75"
