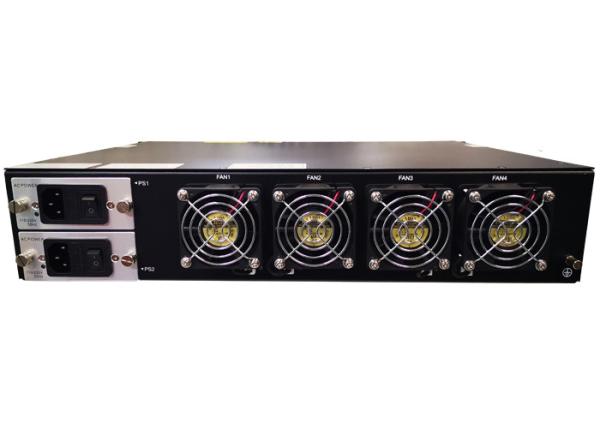

SC/2U 32 Ports CATV Optical Amplifier 1550nm GFD1550-EBM-2 With WDM XPon OLT Input
SC/2U 32 Ports CATV Optical Amplifier 1550nm GFD1550-EBM-2 With WDM XPon OLT Input
SC/2U 32 Ports CATV Optical Amplifier 1550nm GFD1550-EBM-2 With WDM XPon OLT Input
SC/2U 32 Ports CATV Optical Amplifier 1550nm GFD1550-EBM-2 With WDM XPon OLT Input
Specifications
Model Number :
GFD1550-EBM-2(SC/2U) 32Ports With WDM
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
T/T, L/C
Delivery Time :
10-15 working days
Packaging Details :
Standard Carton
Height :
2U
Port No. :
32 Ports
Optic Power :
Customized
Fiber Connector :
FC/APC,FC/UPC, SC/APC,SC/UPC,LC/APC,LC/UPC optional
Power Supply :
2
Web port :
RJ45(SNMP),RS232
Description

CATV Optical Amplifier 1550nm GFD1550-EBM-2 32ports With WDM xPon OLT Input

● Imported famous low-noise pump laser, which is low pre-distortion, broad channels and high output optical power.

● Steady imported Erbium-Doped Fiber, high efficiency of power transmission.

● Advanced Microprocessor with perfect automatic control circuit monitor the various

Operating status of the optical output power and pump laser timely and correctly.

Dependability and stability are better.

● Front panel blue display, shows various main work status parameters.

● 2U high-standard framework type installation

Specifications:

Items Parameter
Output(dBm) 31 32 33 34 35 36 37 38 39 40
Output(mW) 1250 1600 2000 2500 3200 4000 5000 6400 8000 10000
Input(dBm) -8～+10
Range of output adjustment (dBm) Down 4
One-time downward attenuation(dBm) Down 6
Wavelength (nm) 1540～1565
Output stability(dB) <±0.3
Optical Return Loss(dB) ≥45
Fiber Connector FC/APC,FC/UPC, SC/APC,SC/UPC,LC/APC,LC/UPC optional
Noise Figure (dB) <6.0(input 0dBm)
Web port RJ45(SNMP),RS232
Power Consumption (W) ≤80
Voltage (V) 220VAC(90～265),48VDC
Working Temp(℃) -0～55
Size (mm) 390(L)×486(W)×88(H)
NW(Kg) 8
